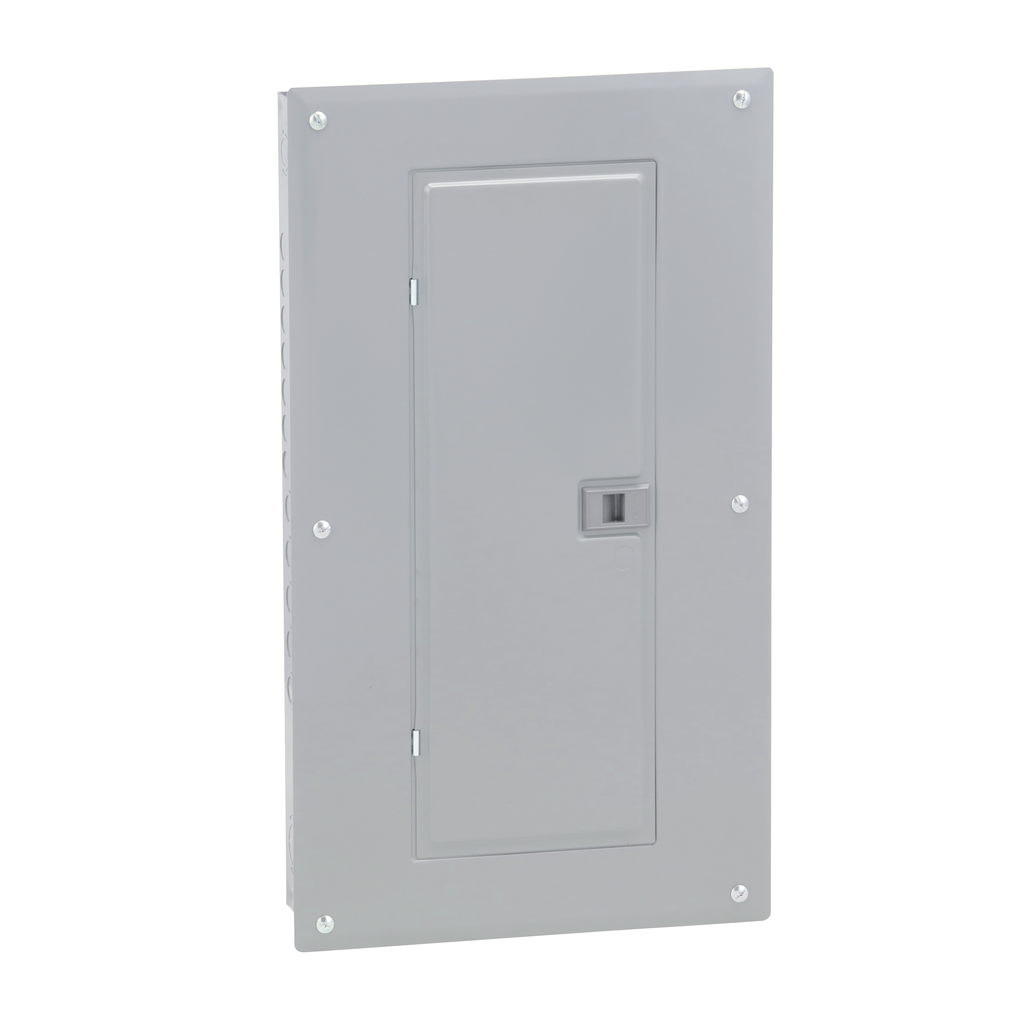

Square D HOM2040L125PGC Load Center 120/240 VAC 125 Amp 20-Space 40-Circuit NEMA 1

Product Description

The Square D HOM2040L125PGC is a reliable load center designed for electrical systems. It operates at 120/240 VAC with a capacity of 125 Amps. This unit includes 20 spaces and allows for 40 circuits. It is suitable for both residential and industrial applications. This load center is UL Listed and ensures safety for electrical equipment and personnel. It features convertible mains rated at 125 Amps and has a breaking capacity of 10 kA.

• 20 spaces in NEMA 1 indoor enclosure
• Wire range of 6 AWG to 2/0 AWG aluminum and 6 AWG to 1/0 AWG copper
• Combination flush/surface cover included

Product Highlights

Provides essential protection and features for electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Amperage: 125 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 20
• Number of Circuits: 40
• Phase: 1
• Height: 26.02 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Country of Origin: United States
