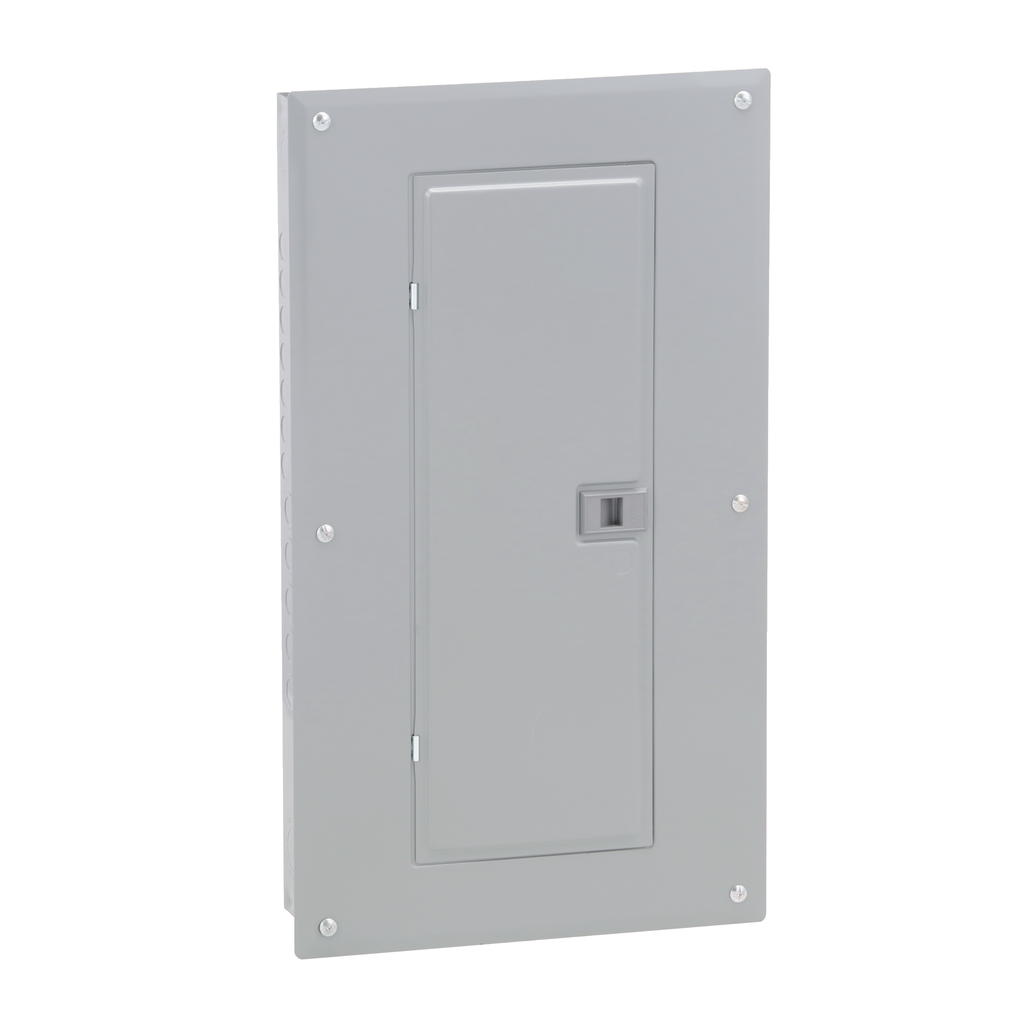

Square D HOM2040L125PC 120/240 VAC 125 Amp 1-Phase 20-Space 40-Circuit NEMA 1 Load Center with Cover

Product Description

The Square D HOM2040L125PC is a load center designed for use in residential and industrial settings. It features a 125 Amp single-phase system rated at 120/240 VAC. The load center includes 20 spaces for circuit breakers and has a total of 40 circuit maximum capacity.

• UL Listed for safety and compliance
• Electrical connections are suitable for copper and aluminum wire
• Equipped with a combination flush/surface cover

Product Highlights

This load center protects your electrical systems, equipment, and personnel. It is suitable for indoor installation and comes with a robust NEMA 1 enclosure. The product supports a wire range of 6 AWG to 2/0 AWG for aluminum and 6 AWG to 1/0 AWG for copper wires.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM2040L125PC

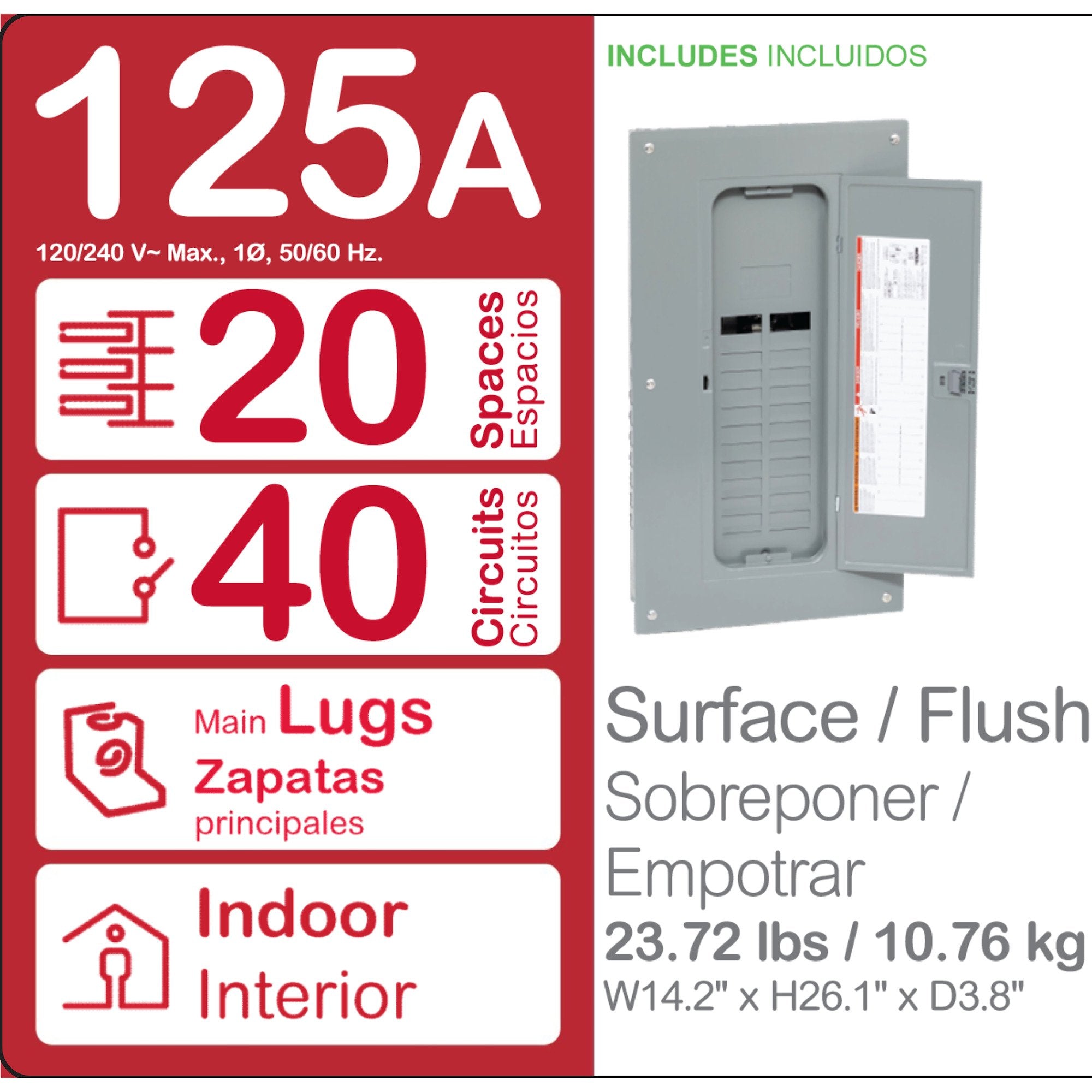

Technical Specifications

• Height: 26.02 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Current: 125 Amp
• Voltage: 120/240 Volt
• Number of Phases: 1
• Cover Type: Combination flush/surface
• Number of Circuits: 40
