Square D HOM1632L125PC Load Center 120/240V 125 Amp 16-Space 32-Circuit Replacement MPN

Product Description

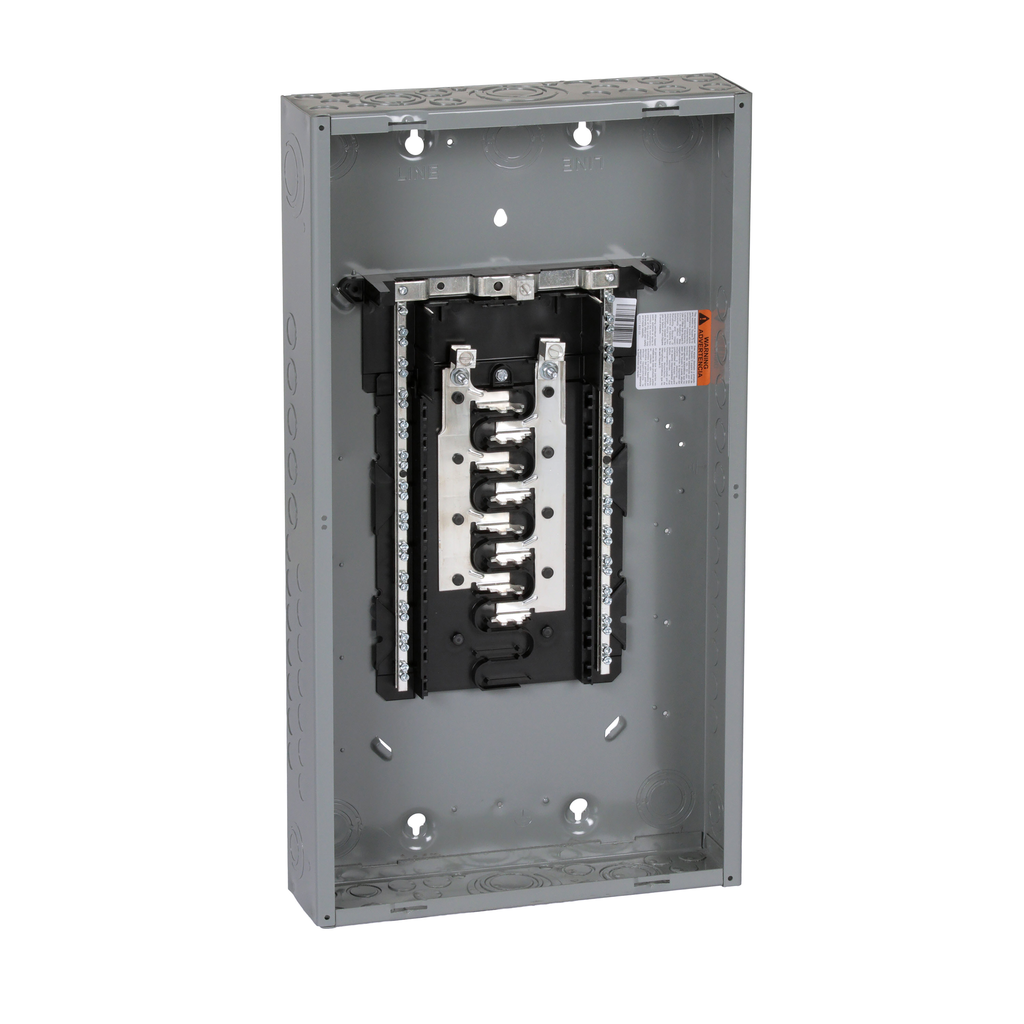

The Square D HOM1632L125PC is a reliable load center rated for 120/240 Volt, 125 Amp single-phase systems. This unit features sixteen spaces and can accommodate up to thirty-two circuits. It comes with a combination flush and surface indoor cover, making it versatile for installation. The enclosure is NEMA 1 rated for indoor use and is also rainproof. This load center is equipped with box lugs allowing for easy wiring connections, accommodating wire sizes from six AWG to two AWG. The Homeline design is ideal for residential and industrial applications ensuring the protection of electrical systems and equipment.

• 16 spaces in a NEMA 1 enclosure
• Accepts wire sizes: 6 AWG to 1/0 AWG copper, 6 AWG to 2/0 AWG aluminum
• 10 kA breaking capacity

Product Highlights

This load center meets residential and commercial requirements for protecting electrical systems.

Product Information

Standard Information

• Brand: Square D
• Catalog Number: HOM1632L125PC

Technical Specifications

• Current: 125 Amp
• Voltage: 120/240 Volt
• Dimensions: Height 26.02 inches, Width 14.25 inches, Depth 3.74 inches
• Enclosure Rating: NEMA 1 indoor
• Wire Size: AWG 6 to AWG 2/0 aluminum; AWG 6 to AWG 1/0 copper
• Country of Origin: USA
• Certifications: UL Listed
