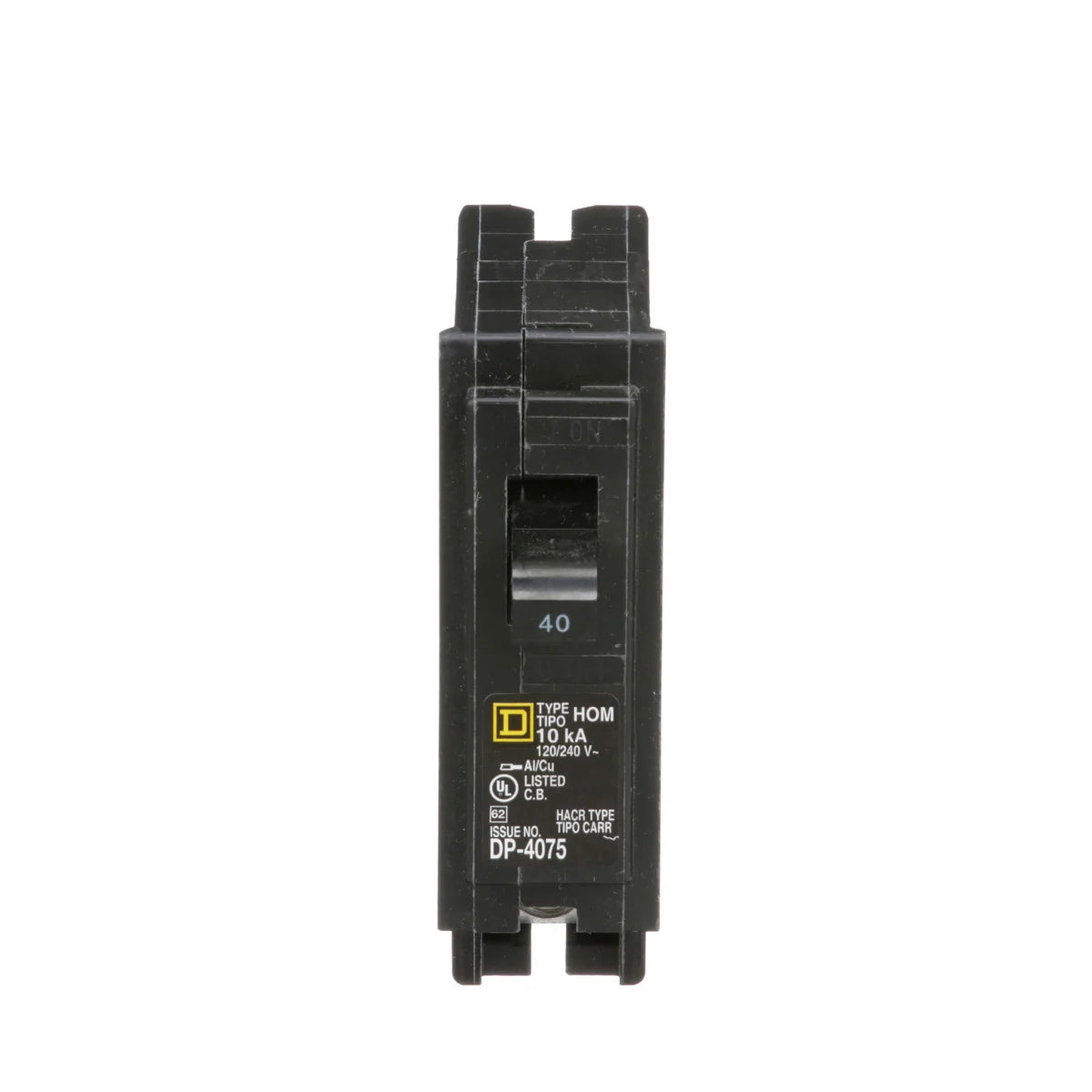

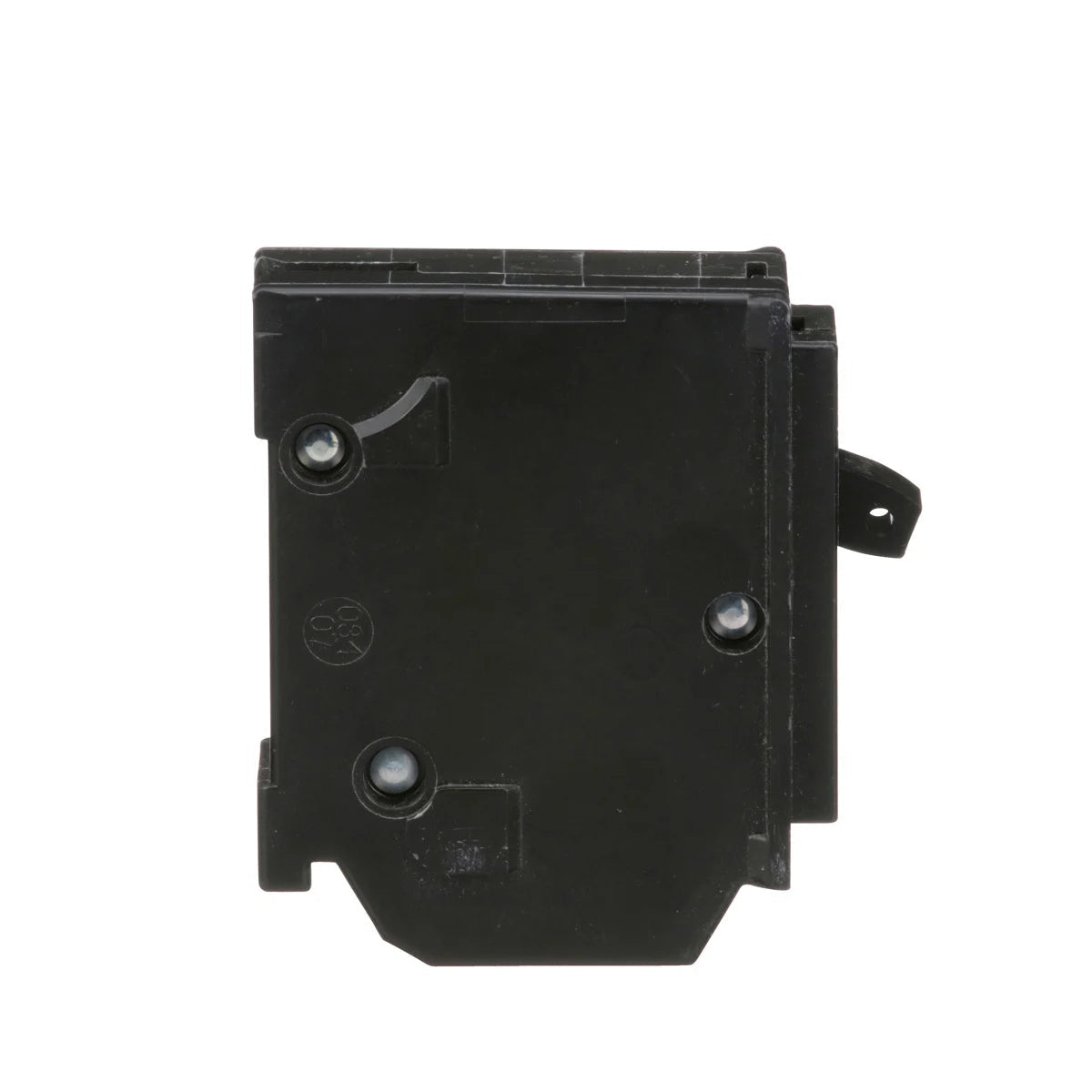

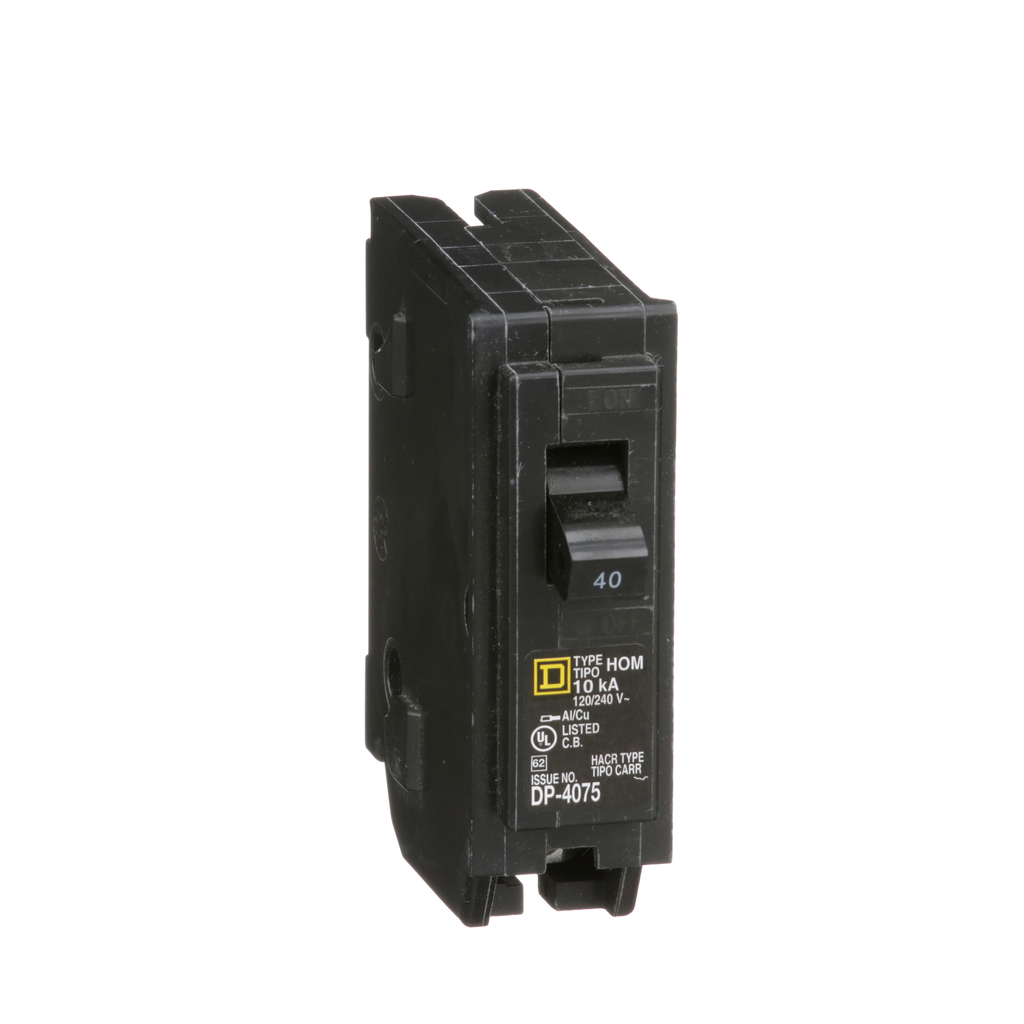

Square D HOM140 120/240 Volt 40 Amp Miniature Circuit Breaker

Product Description

The Square D HOM140 is a 120/240 Volt 40 Amp miniature circuit breaker designed for reliable circuit protection. This unit is engineered to plug directly into Homeline load centers, offering a quick and efficient installation process. With a breaking capacity of 10 kA, the HOM140 provides standard circuit protection and is rated for HACR applications.

• 1 pole circuit breaker rated for 40A at 120/240 VAC.
• UL Listed for safe operation with box lug connections.
• Accepts wire sizes from 8 AWG to 2 AWG for copper or aluminum.

Product Highlights

This circuit breaker is suitable for use in residential settings. Its features allow it to provide overload and short-circuit protection effectively. It measures three point thirteen inches in height, one inch in width, and two point ninety-eight inches in depth.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM140
• Voltage: 120/240 Volt
• Current Rating: 40 Amp
• Number of Poles: 1
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
• Interrupt Rating: 10 kAIC
• Wire Size: AWG 8 to 2
• Country of Origin: Mexico
• Warranty Length: Lifetime
