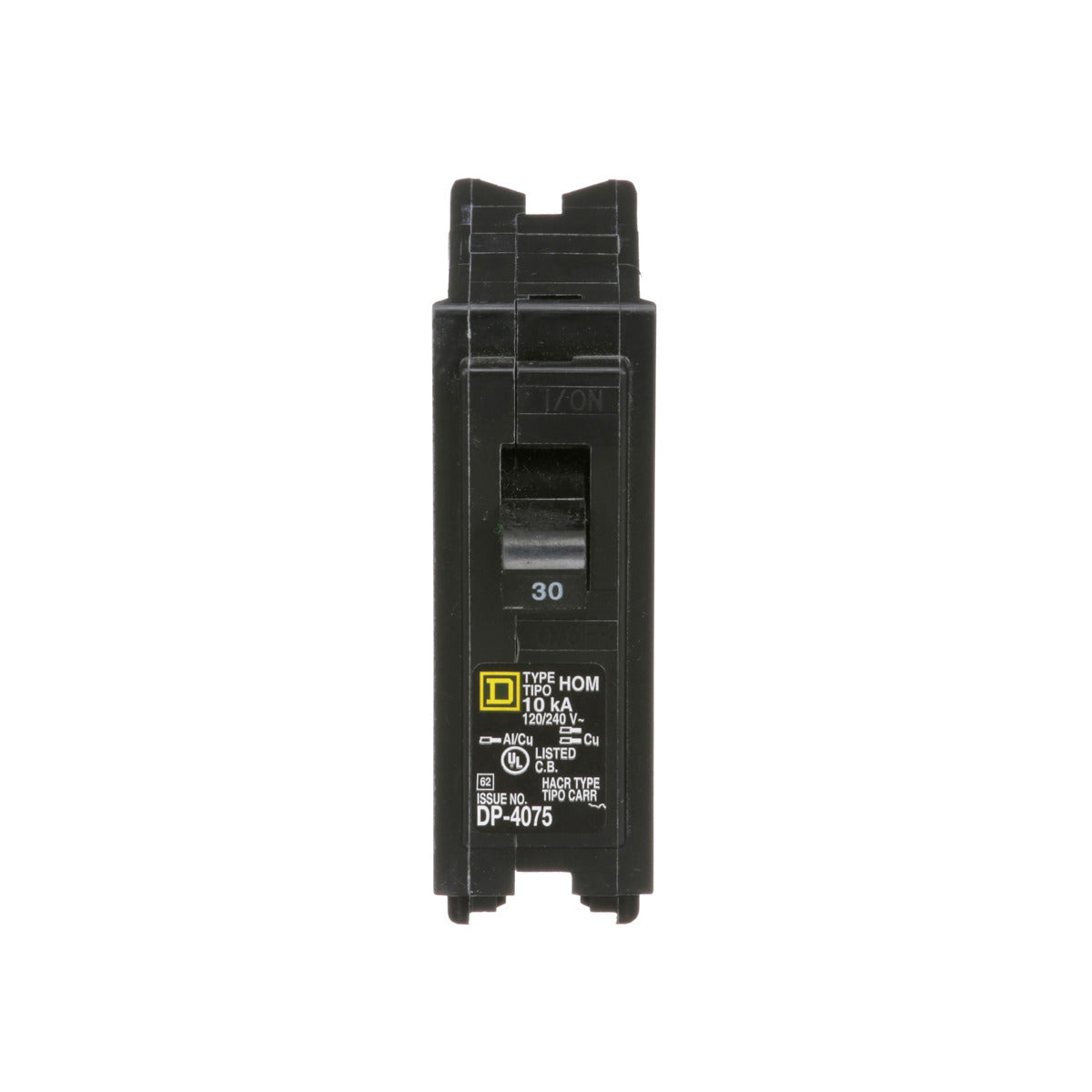

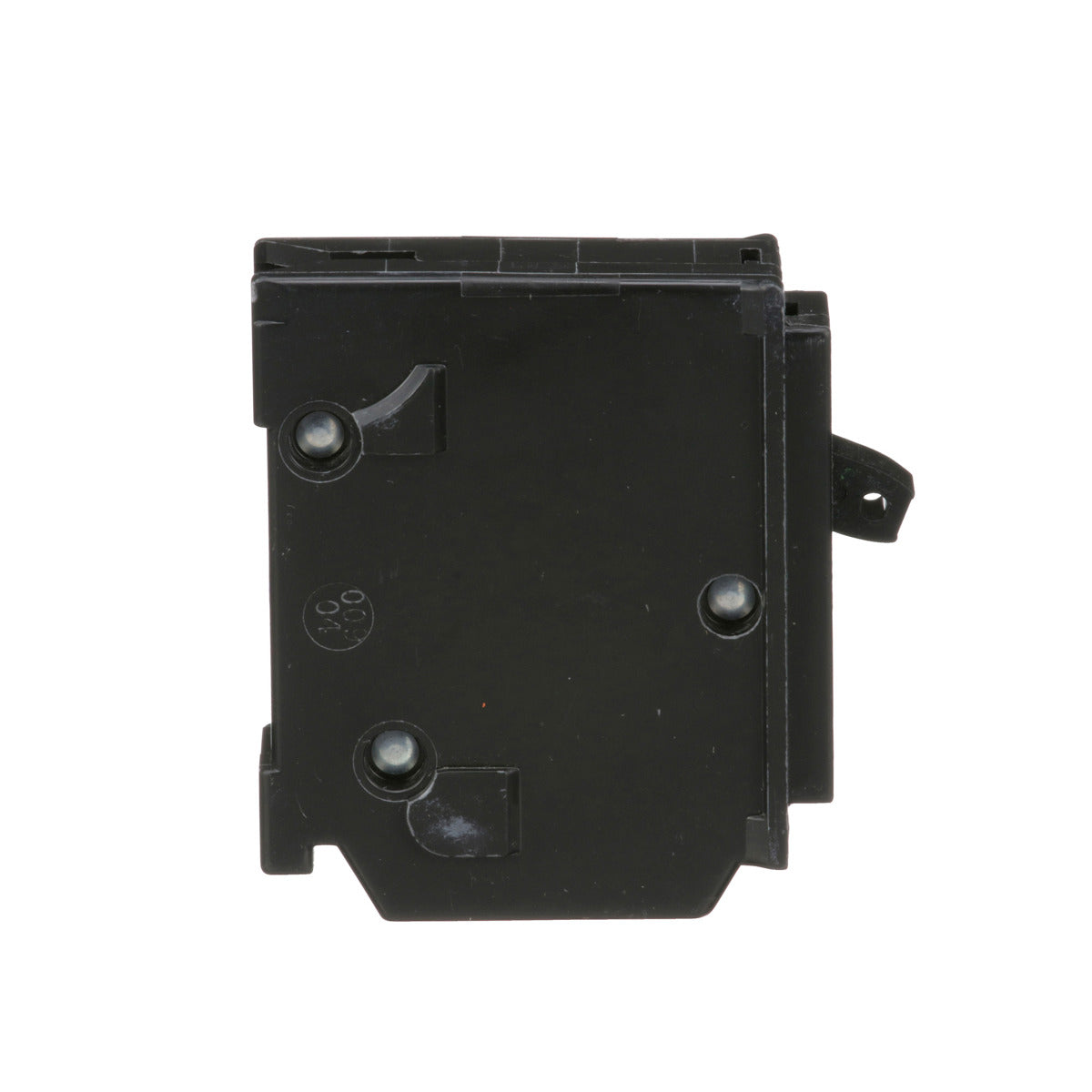

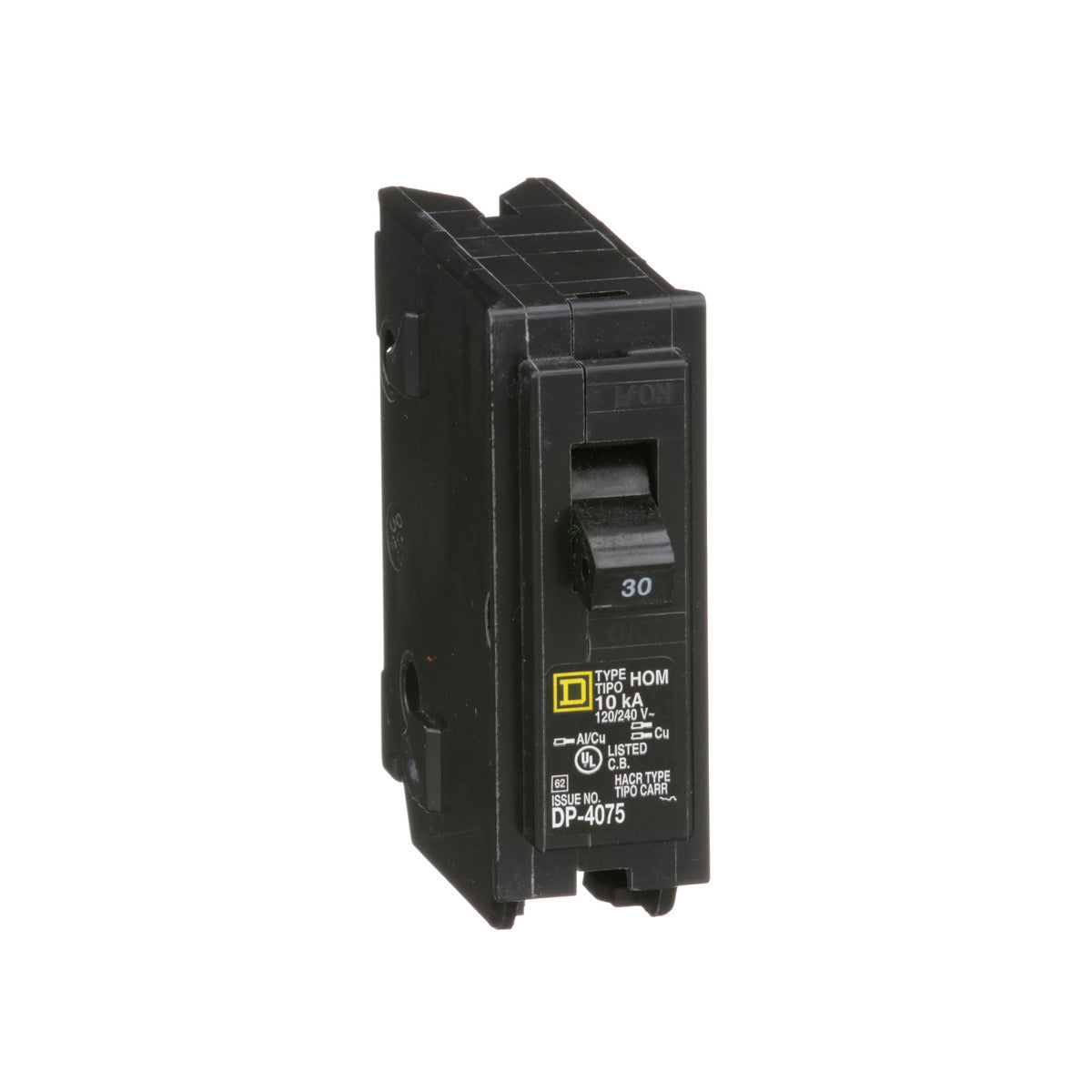

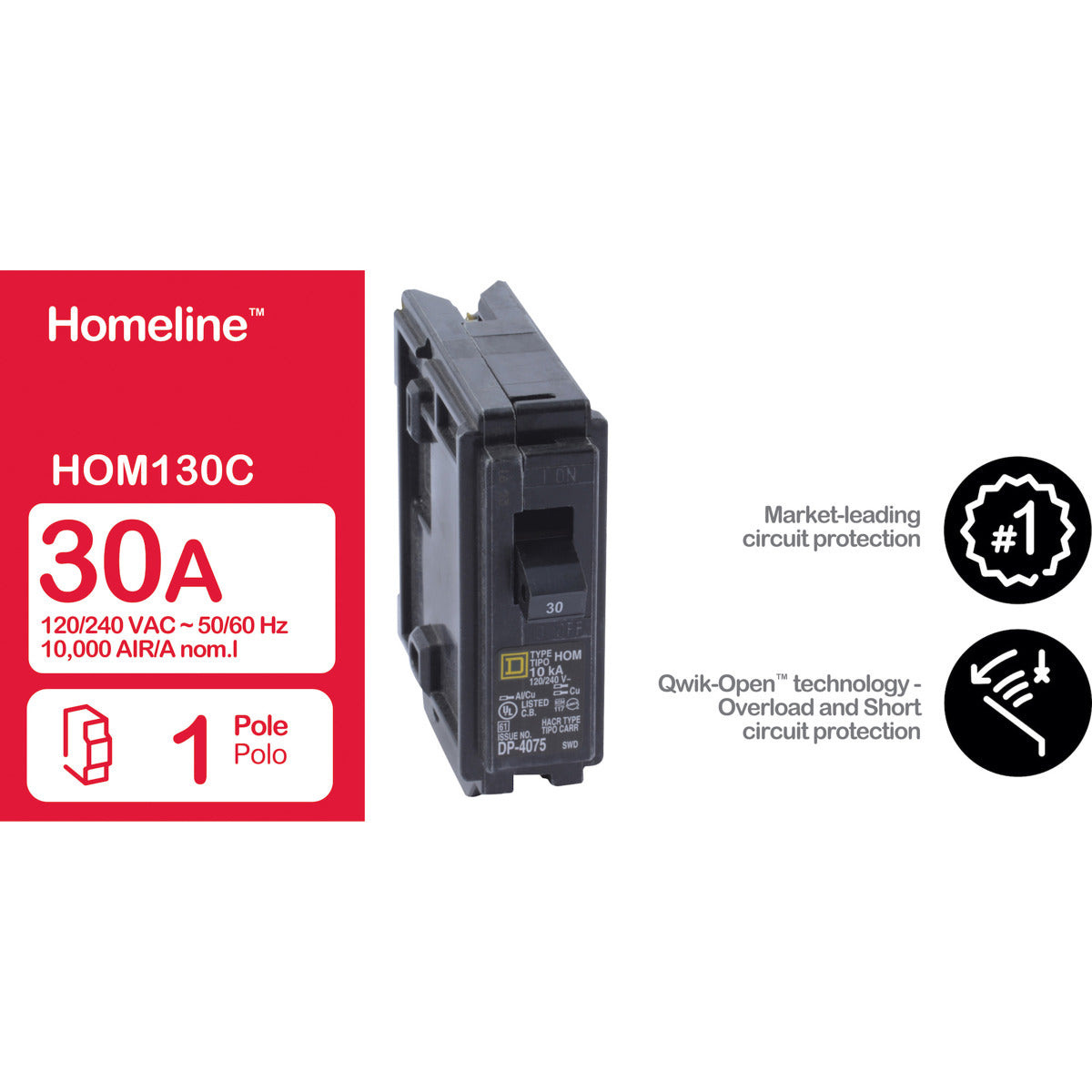

Square D HOM130 Square D Miniature Circuit Breaker 30 Amp 120/240 Volt

Product Description

The Square D HOM130 is a miniature circuit breaker by Schneider Electric. It is designed for circuit protection and overload safety in residential applications. The HOM130 features a rating of thirty amps at one hundred twenty to two hundred forty volts. This one-pole breaker is easy to install, using a plug-in mounting method, and is compatible with Homeline load centers.

• Compact design with dimensions of three point thirteen inches high by one inch wide by two point ninety-eight inches deep.
• HACR rated and provides standard protection for circuit wiring.
• Wire connections accommodate copper or aluminum wires ranging from fourteen AWG to eight AWG.

Product Highlights

This circuit breaker ensures reliability and safety for residential power distribution.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM130

Technical Specifications

• Voltage: 120/240 Volt
• Current Rating: 30 Amps
• Number of Poles: 1 Pole
• Mounting Type: Plug-in
• Breaking Capacity: 10 kA
• Wire Size: 14 to 8 AWG
• Length: 2.98 inches
• Width: 1.0 inch
• Height: 3.13 inches
• Country of Origin: Mexico
• Certification: UL Listed
