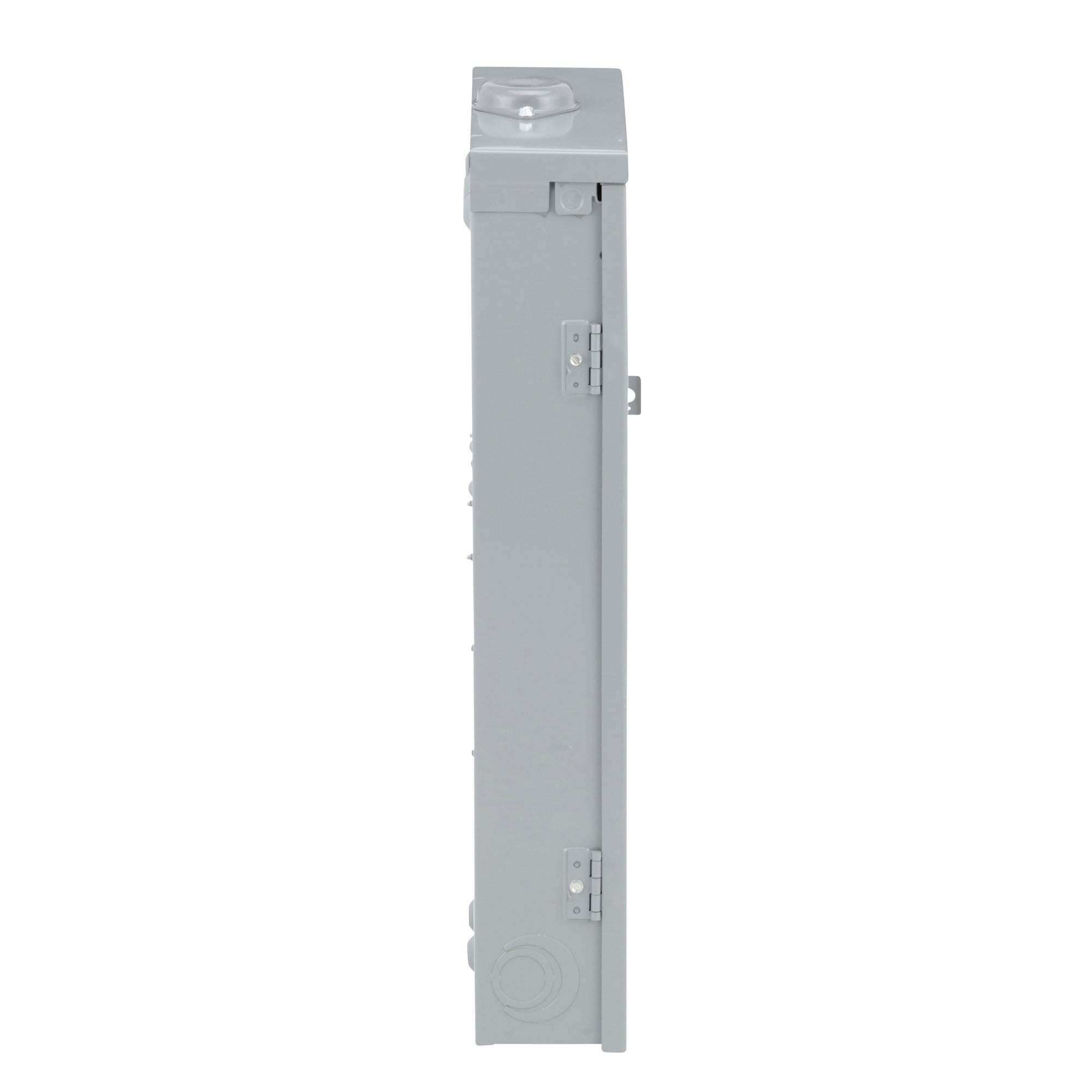

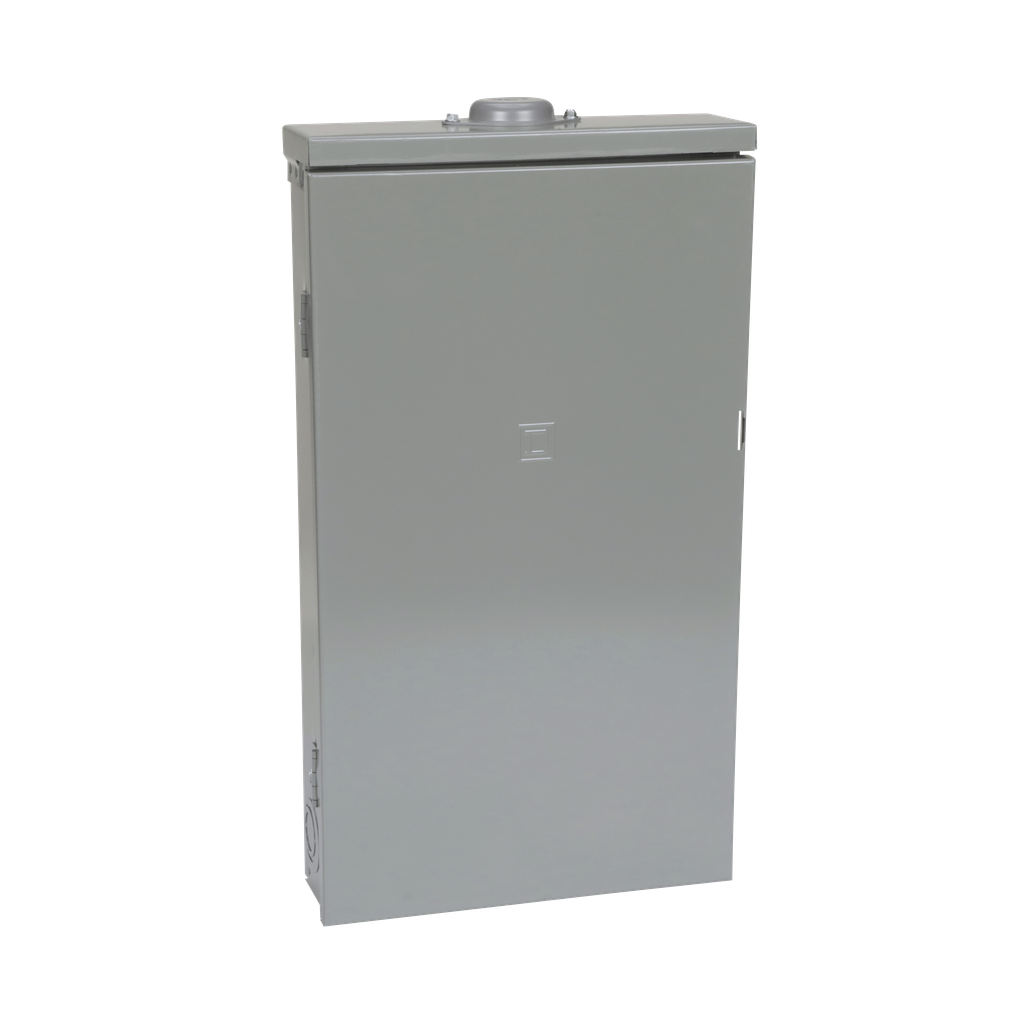

Square D HOM12L225PRB Load Center 225 Amp 1-Phase 12-Space NEMA 1 Load Center

Product Description

The Square D HOM12L225PRB is a load center rated for 225 Amps and operates at 120/240 Volts. It features a NEMA 3R rainproof enclosure suitable for residential and industrial applications. This load center comes with twelve circuits and is capable of accepting a wire range from four AWG to 250 kcmil for copper or four AWG to 300 kcmil for aluminum wires. It includes convertible mains and is UL Listed.

• Wire range: 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum
• NEMA 3R rainproof enclosure
• 10 kA breaking capacity

Product Highlights

This load center is designed to protect electrical systems, equipment, and individuals. It effectively supports a complete range of circuit breakers including ground fault and arc fault types.

Product Information

Standard Information

• Catalog Number: HOM12L225PRB
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120/240 Volts
• Amperage: 225 Amps
• Enclosure Material: Steel
• Country of Origin: USA
• Number of Circuits: 12
• Dimensions: Height 26.02 inches, Width 14.76 inches, Depth 4.52 inches
• Interrupt Rating: 10 kAIC
• Certifications: UL Listed File E-6294
• Special Features: Tin plated aluminum busbar
