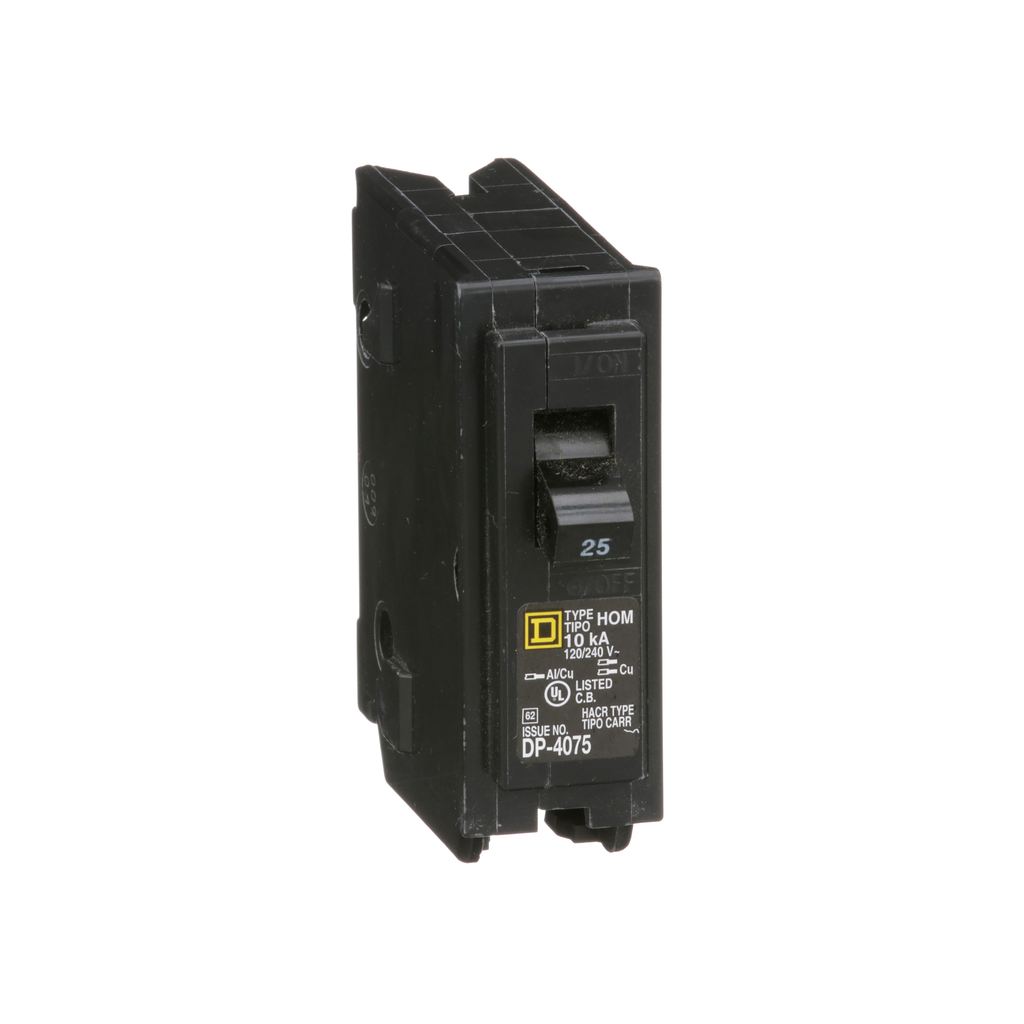

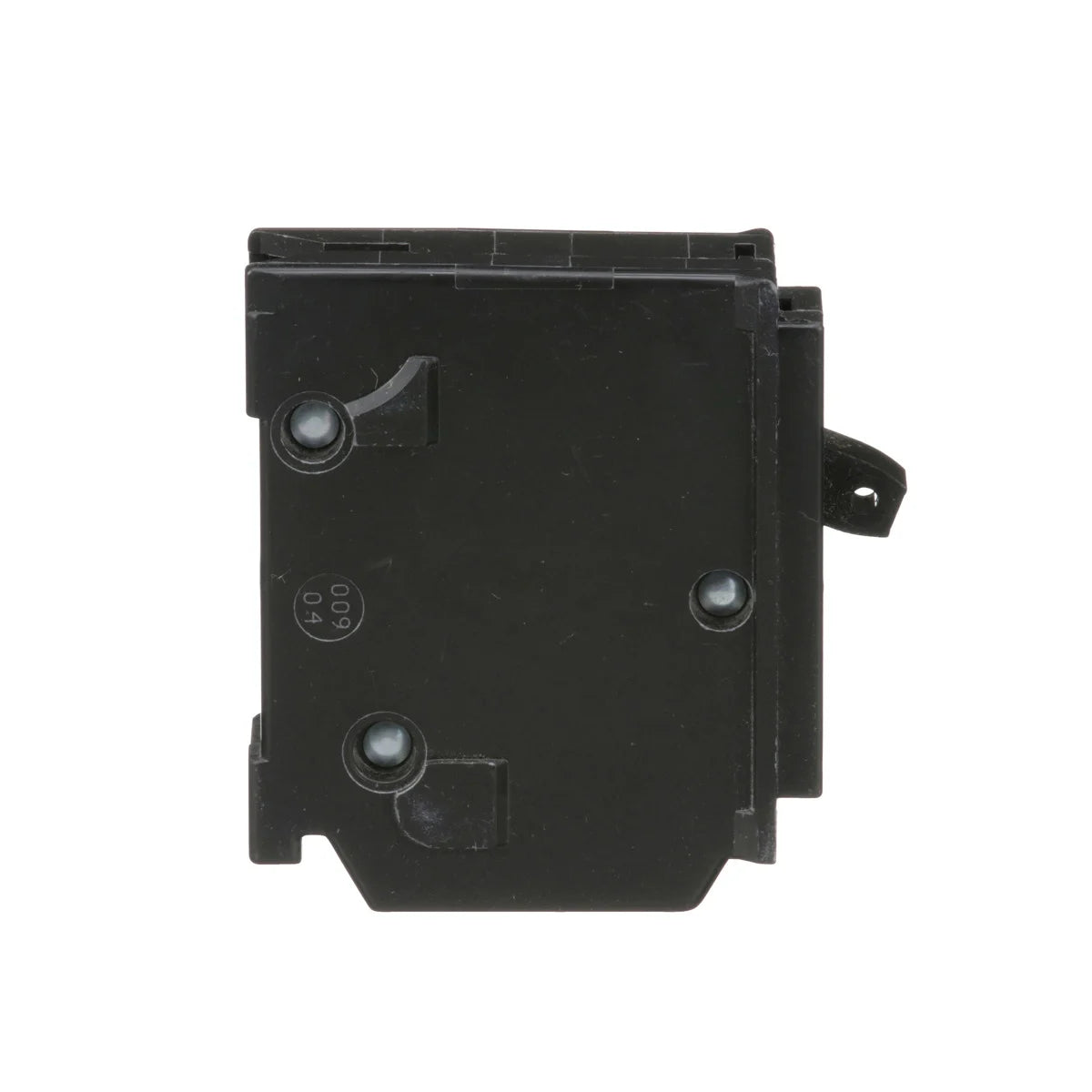

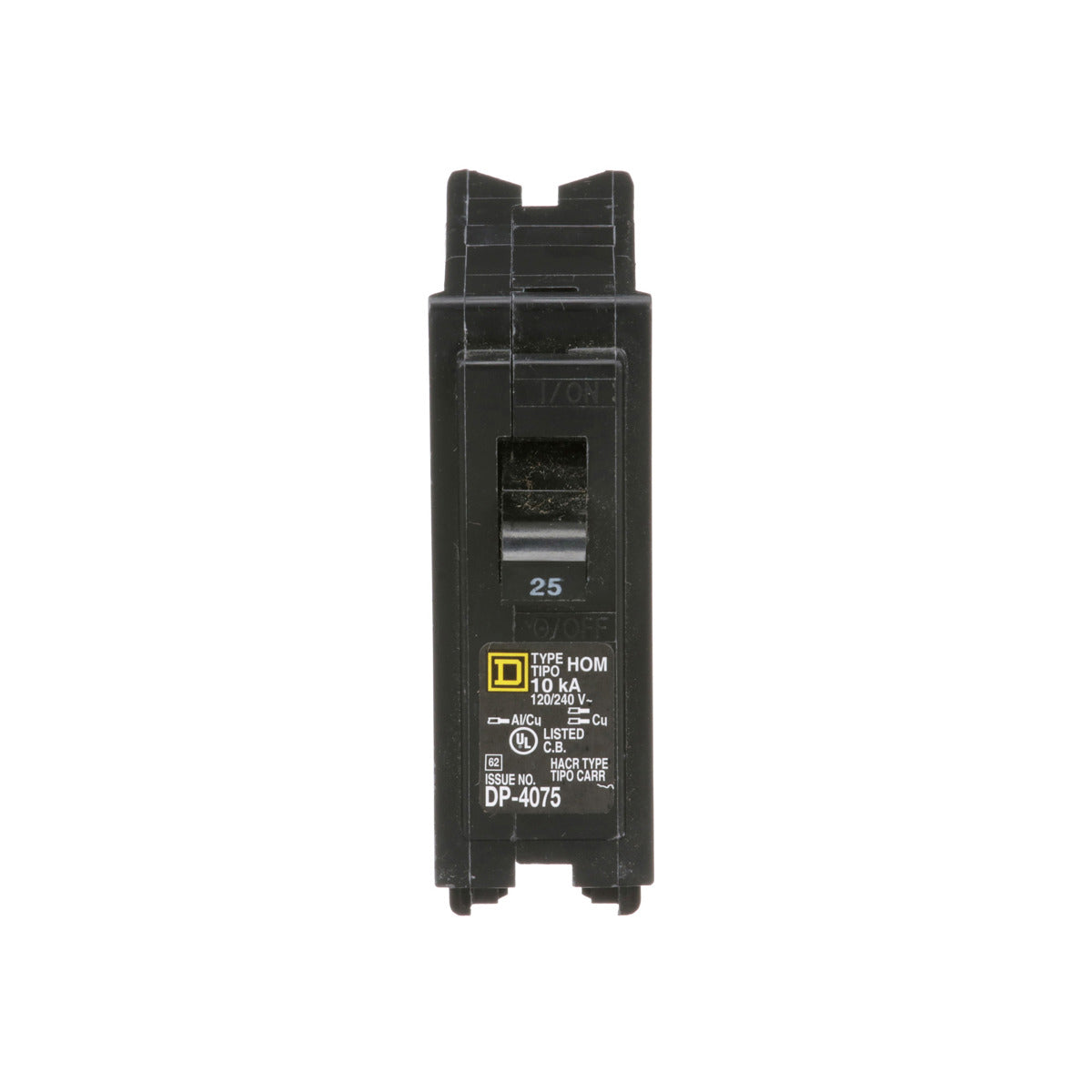

Square D HOM125 Miniature Circuit Breaker 25 Amp 120/240 Volt

Product Description

The Square D HOM125 is a miniature circuit breaker designed for use in Homeline load centers. This breaker is rated for 120/240 volts and provides overload and short circuit protection. The HOM125 has a 25 amp rating and features a plug-in mounting type, making installation straightforward. It is HACR rated and provides a breaking capacity of 10 kA.

• Compatible with Homeline load centers
• Accepts wire sizes between 14 AWG and 8 AWG
• UL listed for safety and compliance

Product Highlights

This breaker is engineered to deliver reliable circuit protection in residential electrical systems.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM125

Technical Specifications

• Current Rating: 25 Amp
• Voltage: 120/240 Volt
• Height: 3.13 inches
• Width: 1 inch
• Depth: 2.98 inches
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Wire Size: 14 AWG to 8 AWG
• Operating Temperature: 40 degrees C
• Country of Origin: Mexico
