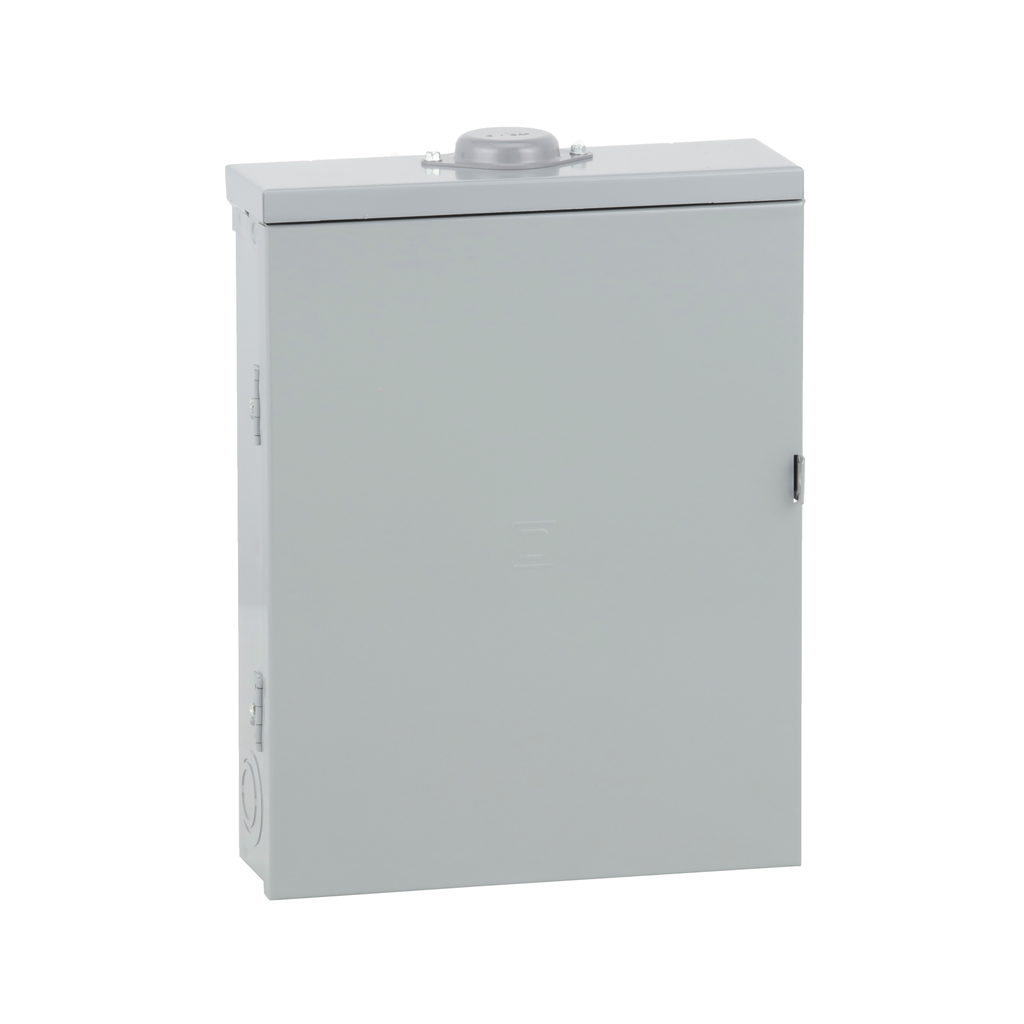

Square D HOM1224M100PRB Load Center 100 Amp 120/240 VAC 12 Space NEMA 3R

Product Description

The Square D HOM1224M100PRB is a load center designed to provide reliable electrical distribution for residential and industrial applications. This load center features twelve spaces and is rated for one phase with a maximum current of one hundred amps at 120/240 volts. It includes a two pole plug on neutral main breaker, which is UL listed for safety.

• Rated for 120/240 VAC single phase
• Enclosure type NEMA 3R for rainproof protection
• Accommodates wire sizes from AWG 6 to 2/0 for aluminum and AWG 6 to 1 for copper

Product Highlights

The HOM1224M100PRB load center is engineered to protect electrical systems and equipment, ensuring safe operation in both indoor and outdoor environments.

Product Information

Standard Information

• Product ID: 927093
• Brand: Square D

Technical Specifications

• Catalog Number: HOM1224M100PRB
• Voltage: 120/240 Volt
• Current: 100 Amp
• Number of Circuits: 24
• Enclosure Rating: NEMA 3R
• Height: 18.92 inches
• Width: 14.75 inches
• Depth: 4.52 inches
