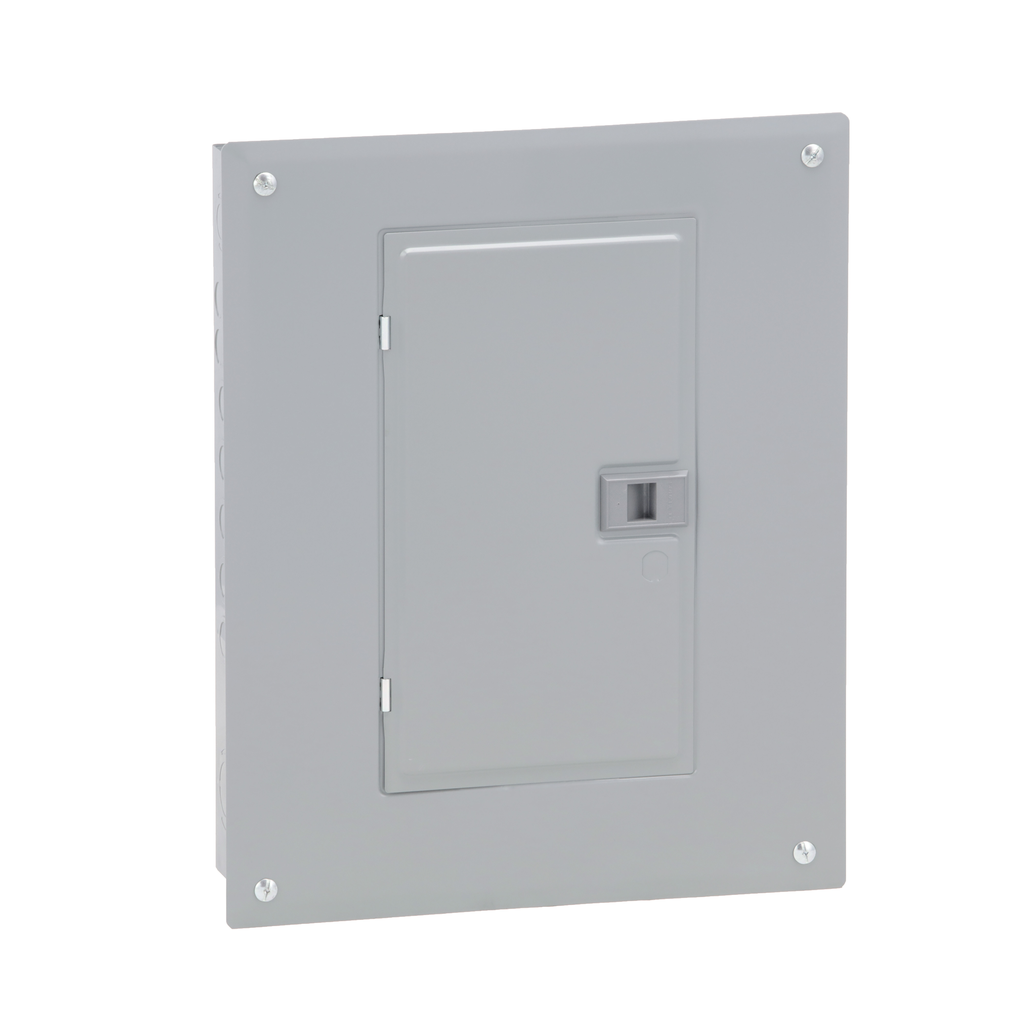

Square D HOM1224M100PC Load Center 120/240 VAC 100 Amp 1-Phase 12-Space 24-Circuit NEMA 1

Product Description

The Square D HOM1224M100PC is a 120/240 VAC, 100 Amp, single-phase load center. Designed for residential and light industrial use, it offers reliable protection for your electrical systems. This model features a total of 12 spaces and 24 circuits in a NEMA 1 indoor enclosure. The load center is equipped with a two-pole breaker for a main supply circuit, rated at 100 Amps.

• 12 spaces for circuit breakers
• Rated for both indoor and rainproof outdoor use
• UL Listed for safety

Product Highlights

The Square D HOM1224M100PC load center supports a range of accessories and is built to safeguard electrical systems and equipment. Its robust design and ease of installation make it suitable for a variety of applications.

Product Information

Standard Information

• Catalog Number: HOM1224M100PC
• Brand: Square D

Technical Specifications

• Voltage: 120/240 Volt
• Current: 100 Amp
• Number of Phases: 1 Phase
• Number of Spaces: 12
• Enclosure Type: NEMA 1
• Height: 17.92 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Wire Size Acceptance: 6 AWG to 2/0 AWG copper or aluminum
