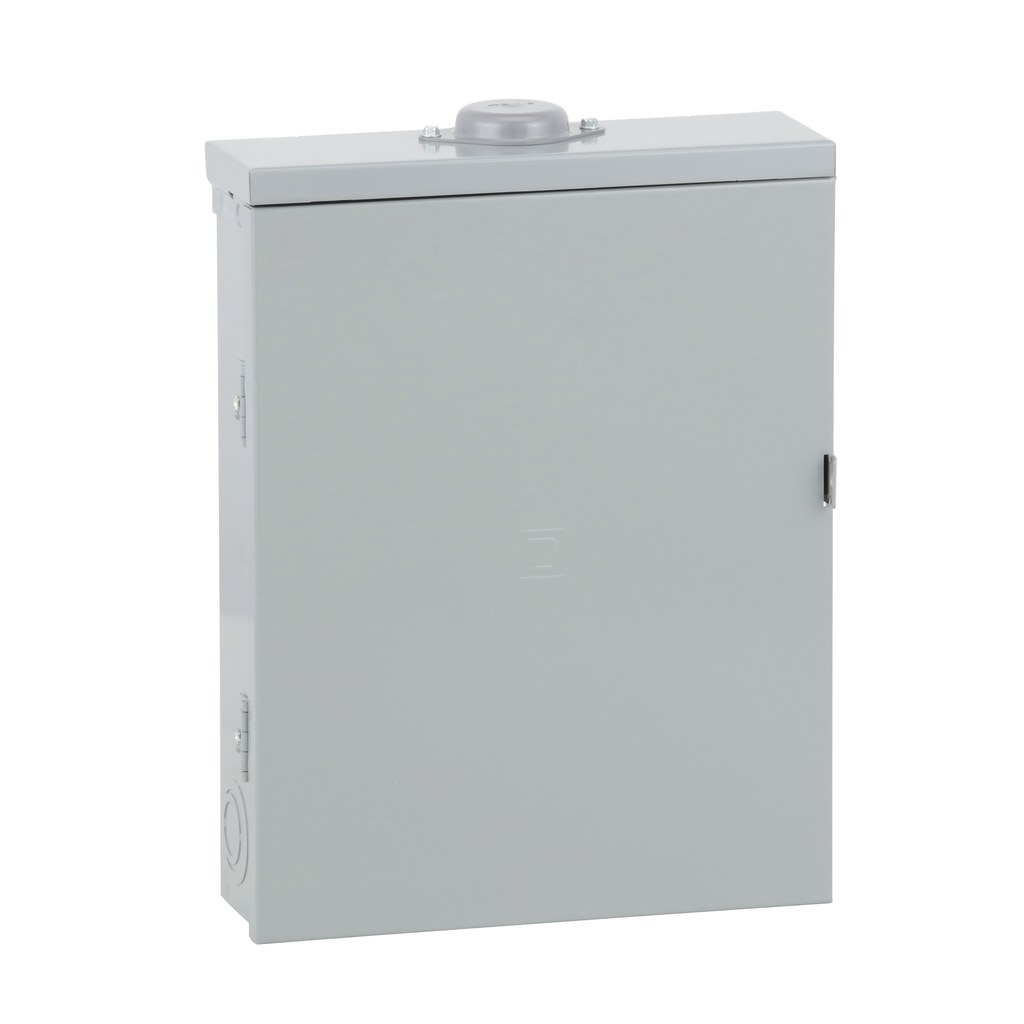

Square D HOM1224L125PRB 120/240 VAC 125 Amp 1-Phase 12-Space 24 Circuit NEMA 3R Outdoor Load Center

Product Description

The Square D HOM1224L125PRB is a reliable load center designed for residential and industrial applications. This outdoor-rated unit supports a power range of one phase at one hundred twenty to two hundred forty volts with a capacity of one hundred twenty-five amps. It includes twelve spaces within a NEMA 3R rain-proof enclosure, providing essential protection for electrical wiring.

• Includes accessory support for circuit and ground fault breakers.
• Rated for ten kiloamp breaking capacity.
• Accepts wire sizes from six AWG to one AWG for copper and six AWG to two-aught AWG for aluminum.

Product Highlights

This load center is UL listed, ensuring compliance with safety standards, suitable for various electrical installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM1224L125PRB
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Enclosure: NEMA 3R
• Number of Spaces: 12
• Depth: 4.52 inches
• Height: 18.92 inches
• Width: 14.75 inches
