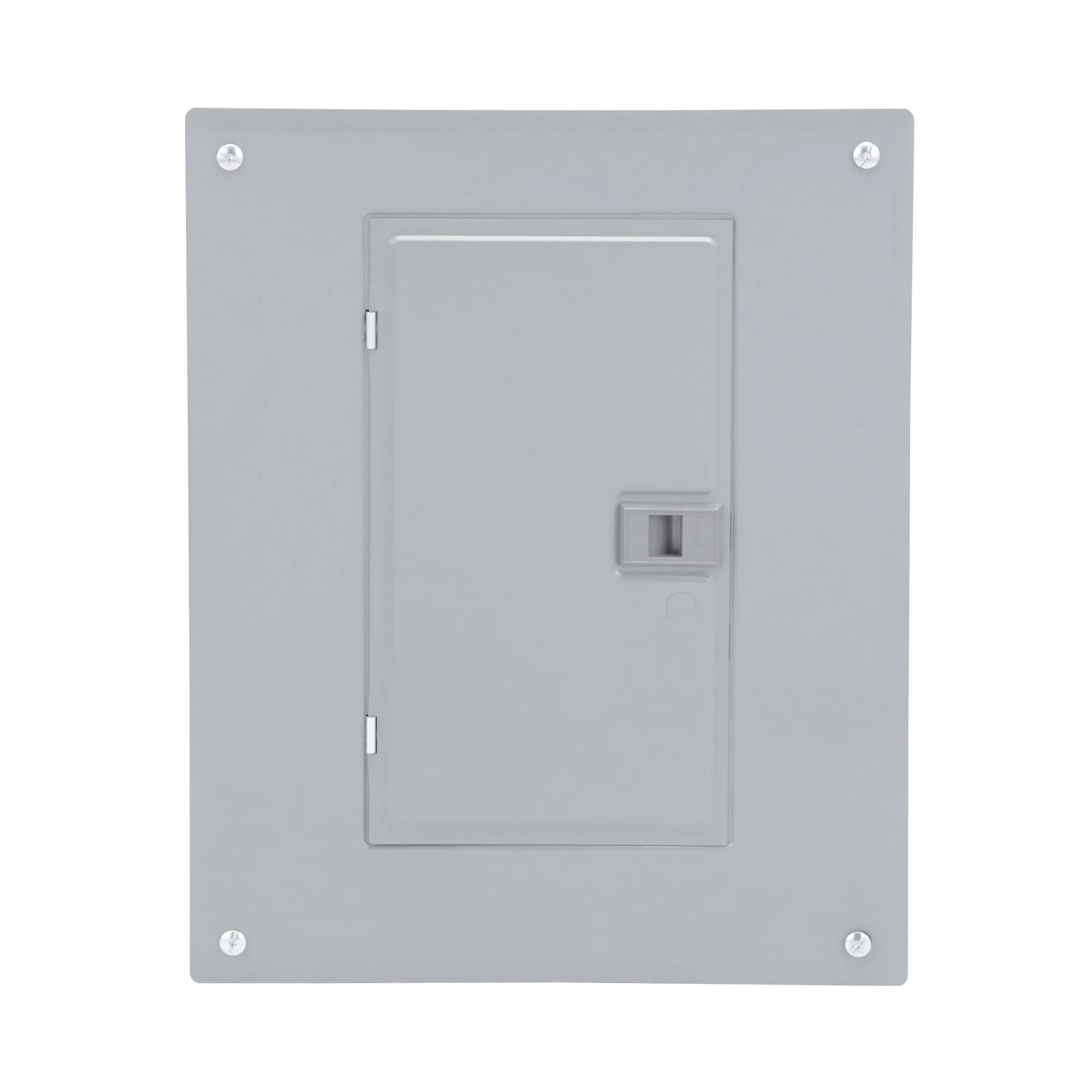

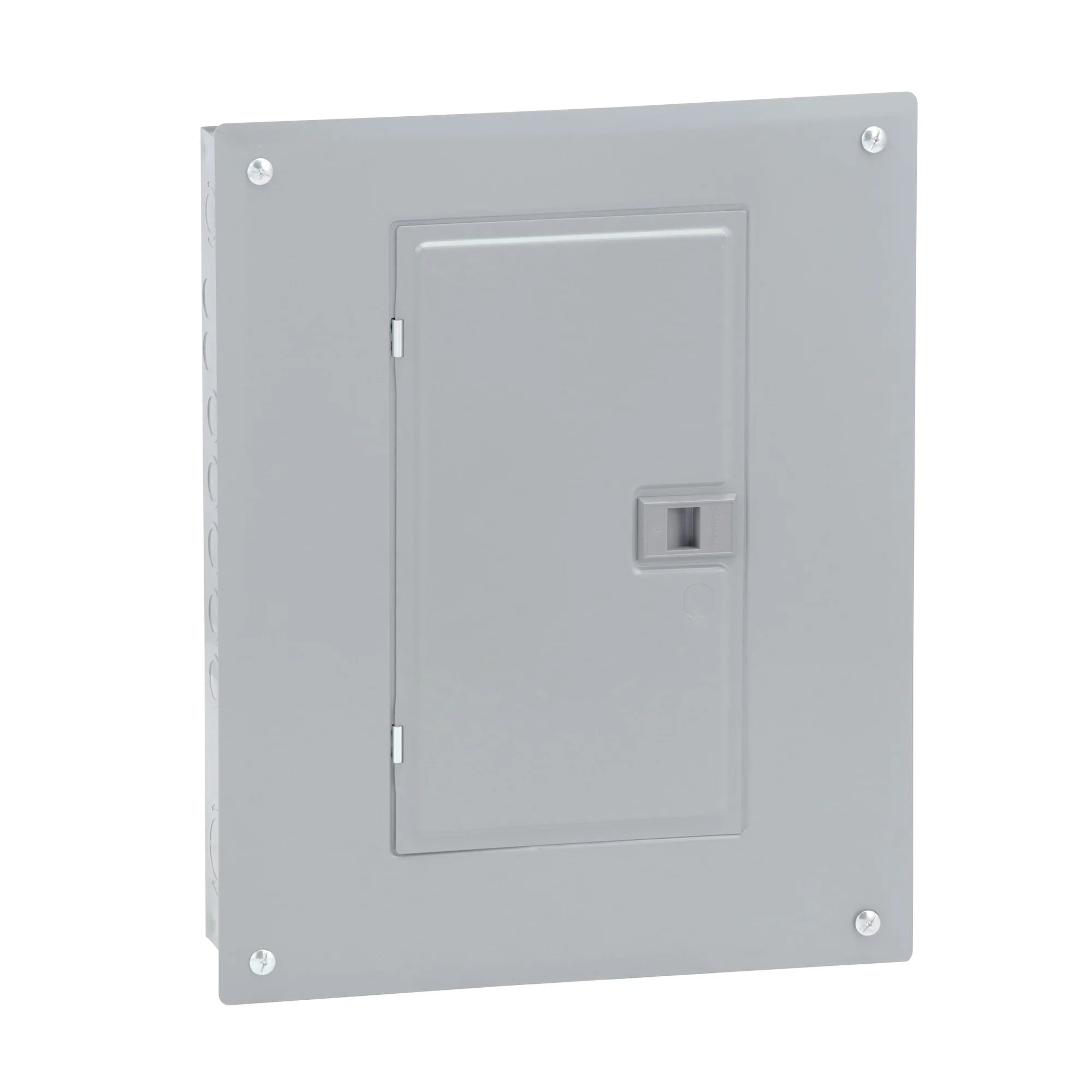

Square D HOM1224L125PGC 120/240 VAC 125 Amp 1-Phase 12-Space 24-Circuit NEMA 1 Load Center

Product Description

The Square D HOM1224L125PGC is a load center designed for residential and industrial applications. It operates on 120/240 VAC with a current rating of 125 Amp. This model features twelve spaces for circuit breakers and can accommodate up to twenty-four circuits with the use of tandem breakers. It is designed for indoor installation within a NEMA 1 enclosure and includes a grounding bar for added safety.

• Operates at 120/240 VAC with a 125 Amp rating
• 12 spaces and supports 24 circuits
• UL Listed for safety compliance

Product Highlights

The load center supports a variety of circuit breakers including ground fault and arc fault interrupters. It is equipped with box lugs for easy wire connection, and the box lugs can accept a wire range of six AWG to two AWG aluminum and six AWG to one AWG copper. This model also includes a combination flush/surface cover, making it versatile for various installation needs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM1224L125PGC
• Current Rating: 125 Amp
• Voltage Rating: 120/240 Volt
• Number of Spaces: 12
• Number of Circuits: 24
• Size: 1 Phase
• Enclosure Rating: NEMA 1

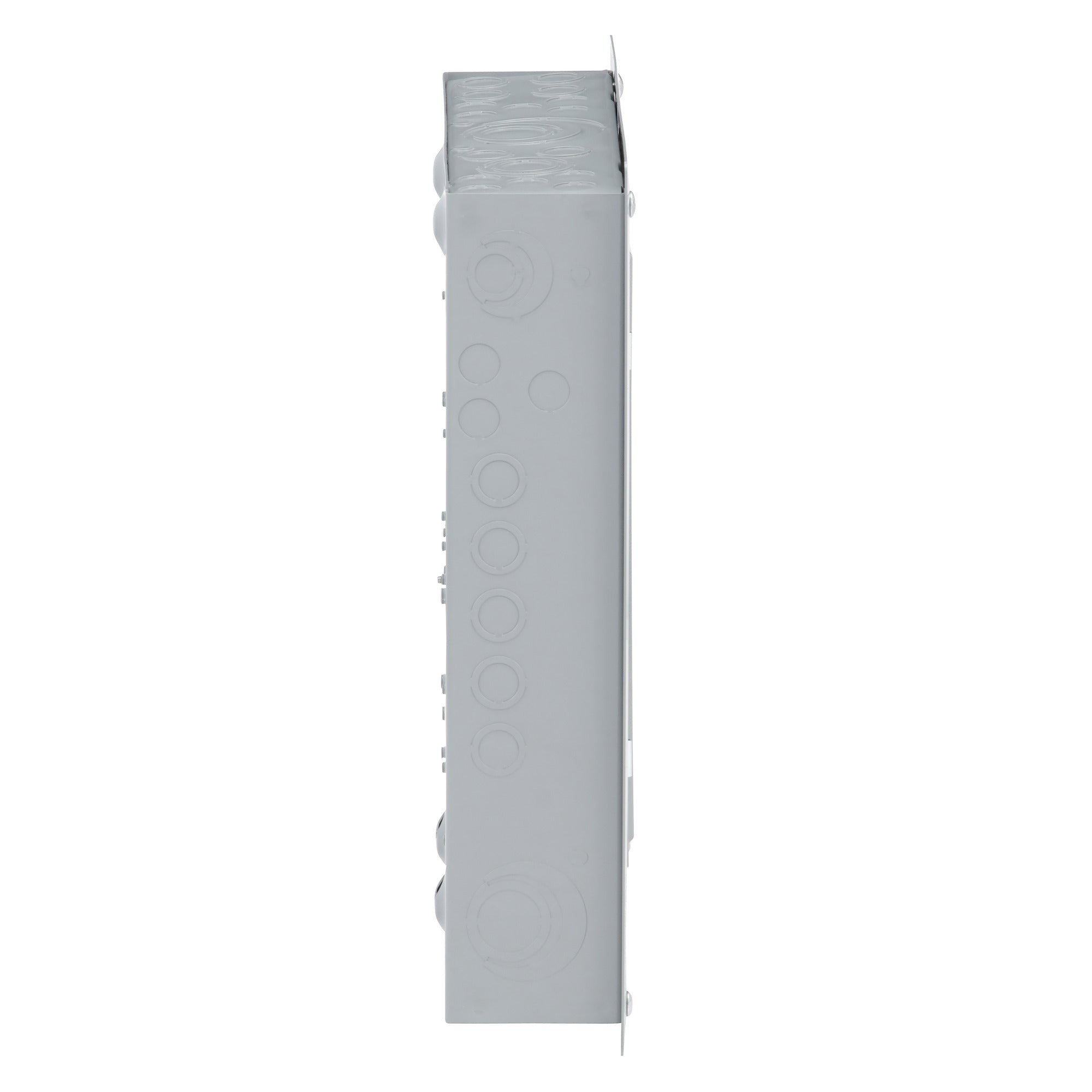

• Dimensions: Height 17.92 inches, Width 14.25 inches, Depth 3.74 inches
