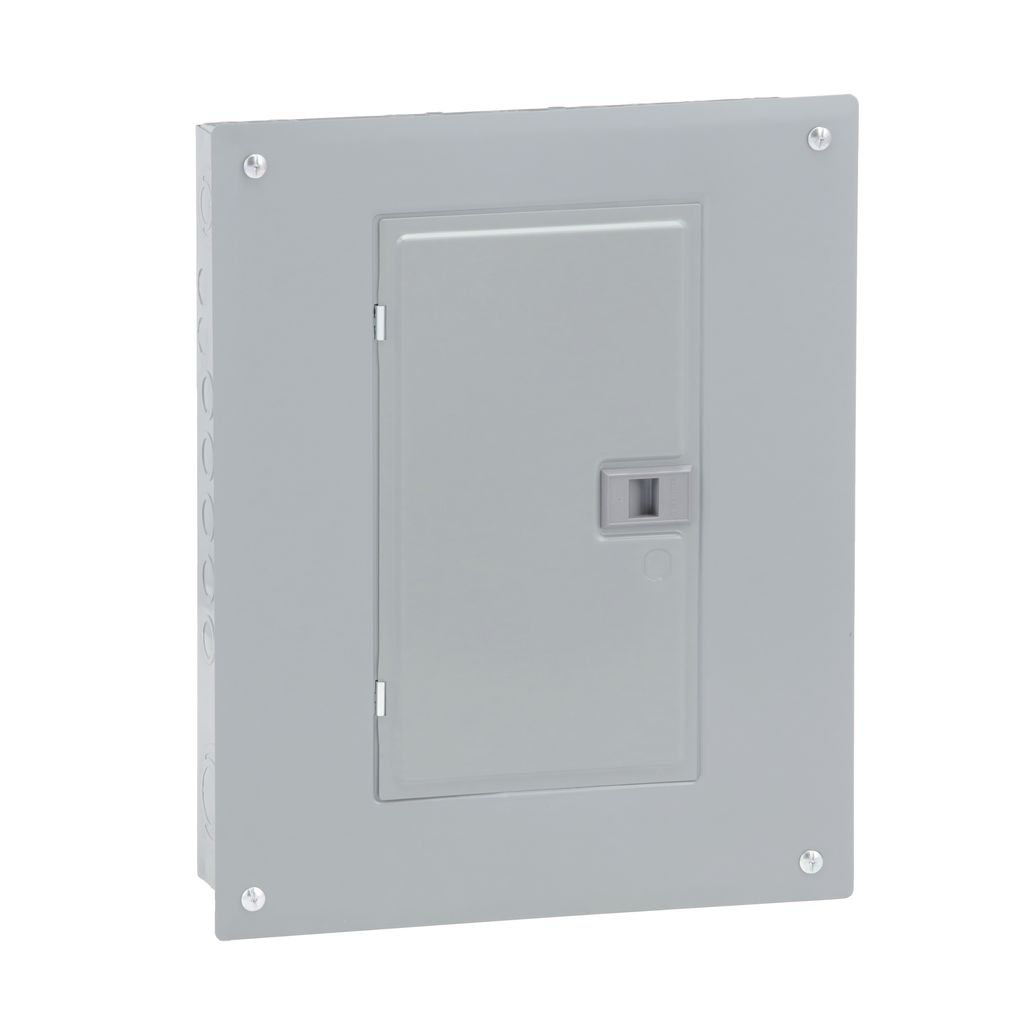

Square D HOM1224L125PC 120/240 VAC 125 Amp 1-Phase 12-Space 24 Circuit NEMA 1 Indoor Load Center

Product Description

The Square D HOM1224L125PC is a load center designed for both residential and light commercial use. It features a total of 12 spaces within a NEMA 1 indoor enclosure. The system operates at 120/240 VAC and supports up to 125 Amps. Users can install ground fault breakers and arc fault interrupters as needed. This load center has a versatile design, allowing for either flush or surface cover installations.

• 12 circuits and spaces available
• UL listed with a 10 kA interrupting capacity
• Accepts a wide range of wire sizes

Product Highlights

The Square D HOM1224L125PC is built for reliability and flexibility in power distribution. Its smart design ensures easy installation and compliance with electrical standards.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM1224L125PC
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Number of Circuits: 24
• Height: 17.92 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Wire Size: AWG 6 to 2/0 aluminum; AWG 6 to 1 copper
