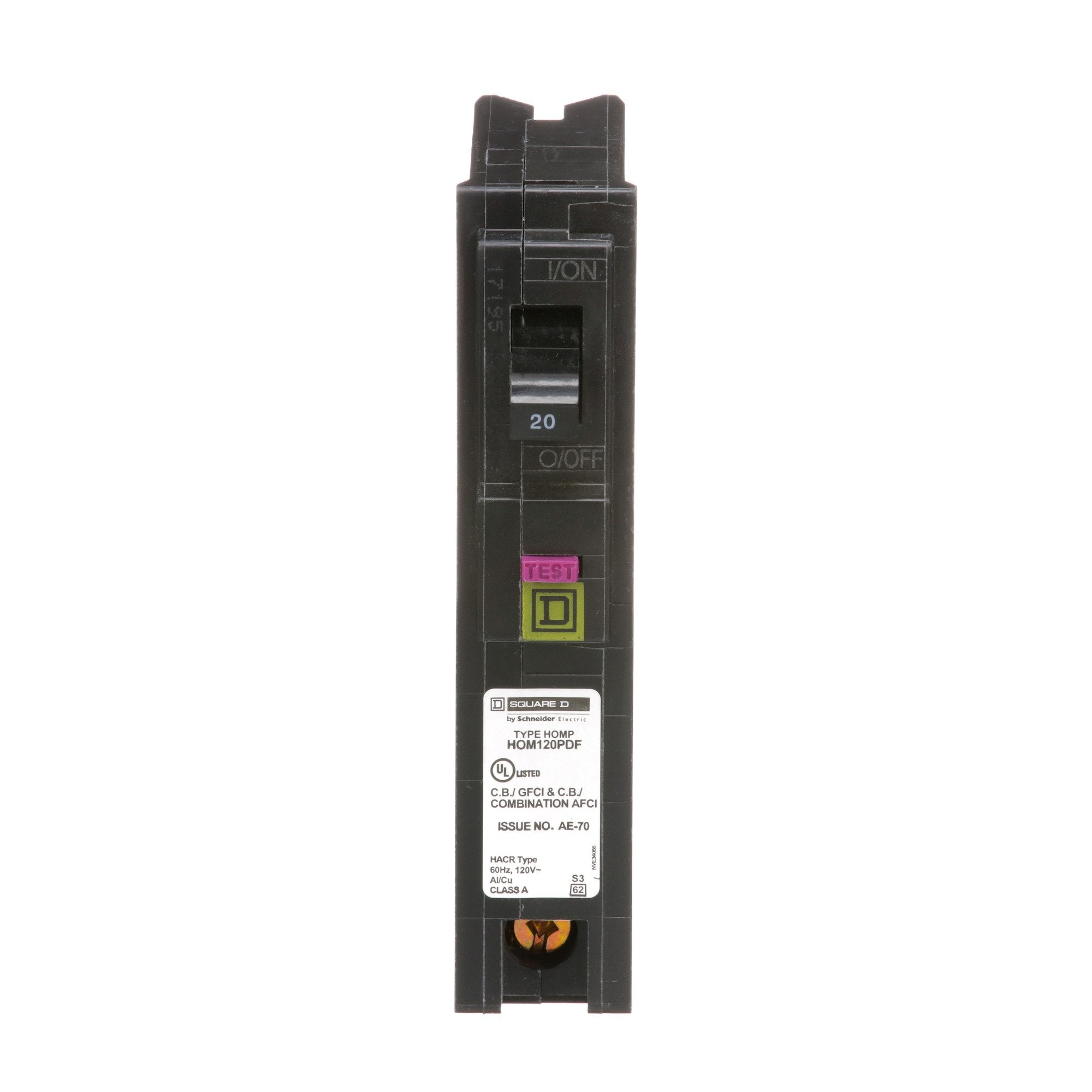

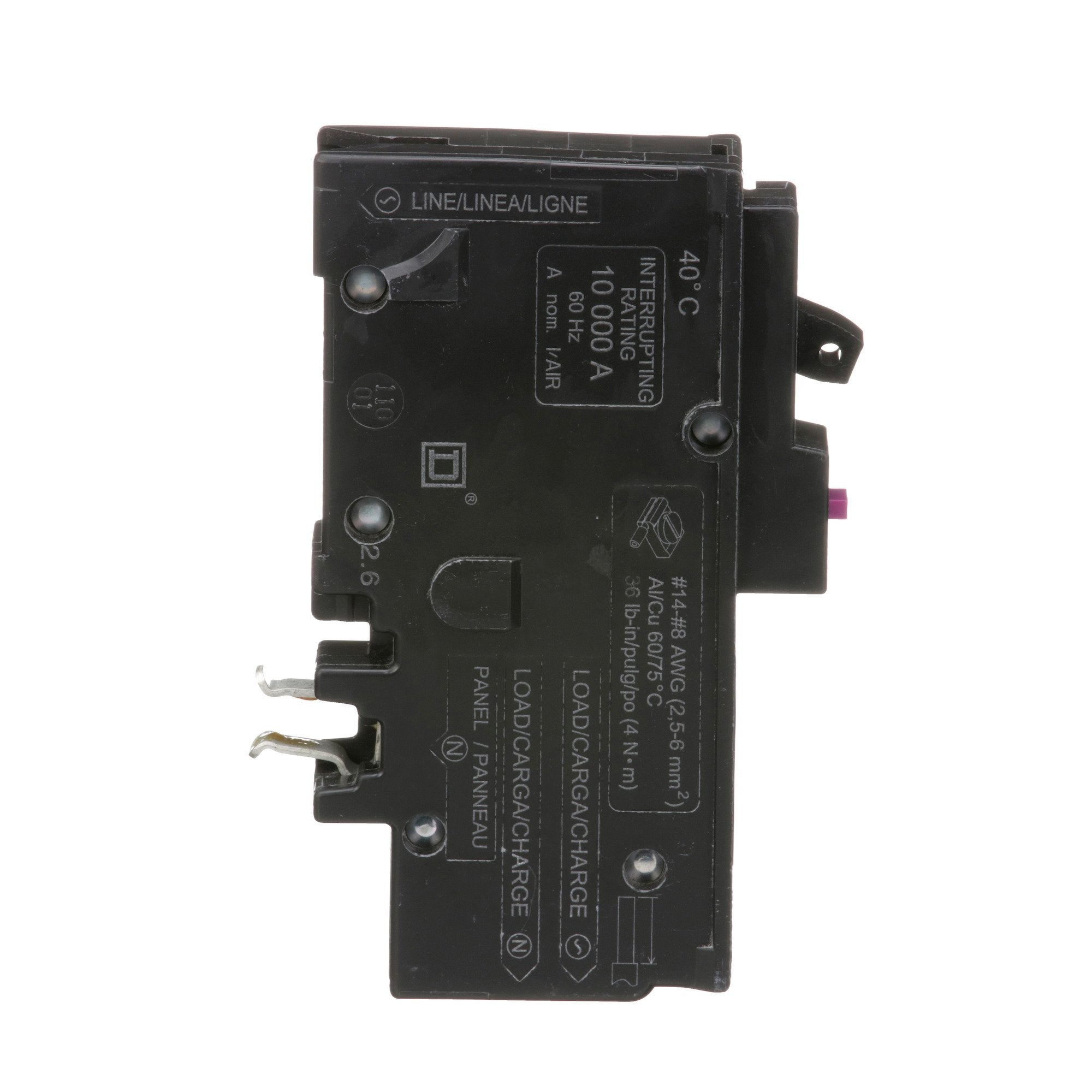

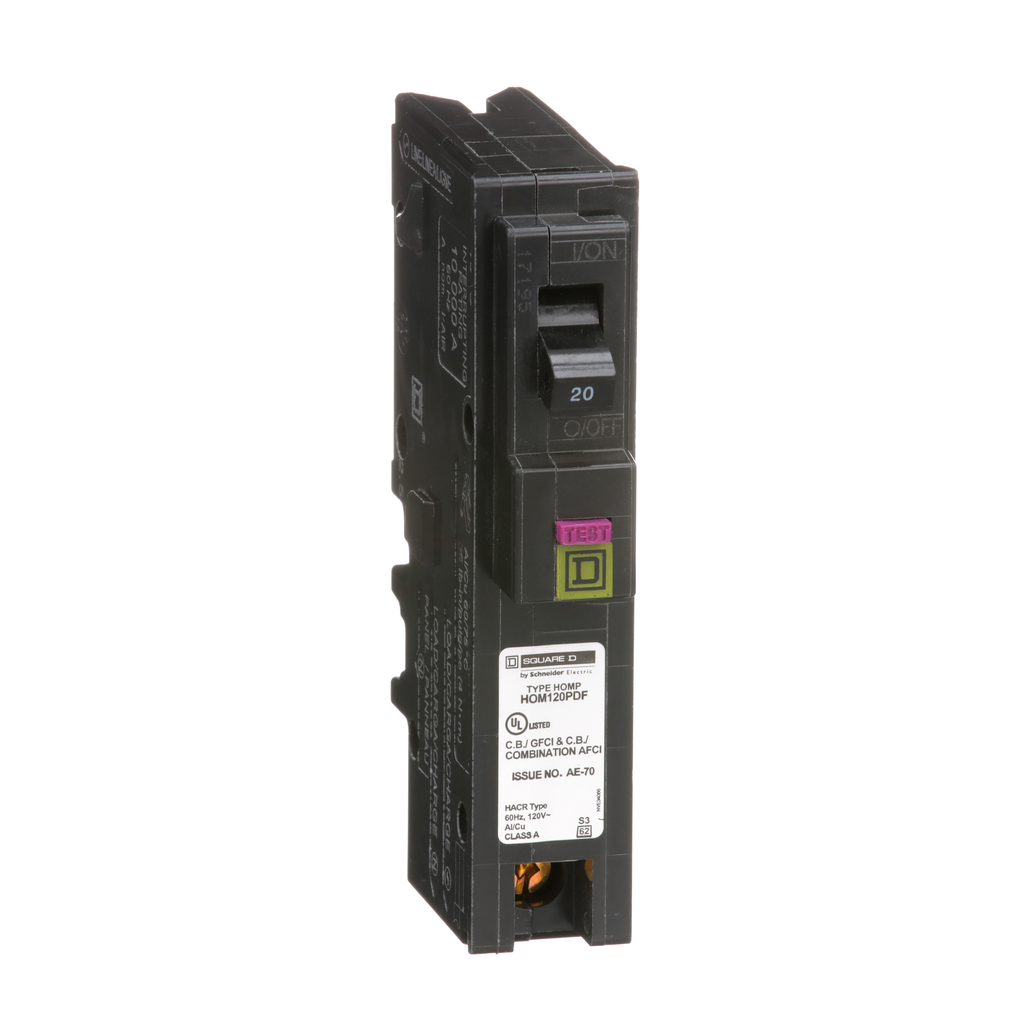

Square D HOM120PDF 1-Pole 20 Amp 120 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D HOM120PDF is a 1-pole, 20 Amp, 120 Volt plug-on thermal magnetic miniature circuit breaker. This device is designed for fast installation and effective circuit protection. The HOM120PDF circuit breaker plugs directly into Homeline load centers, ensuring reliable circuit protection.

• HACR rated for standard circuit protection
• 10 kA breaking capacity
• Combines overload, short circuit, arc fault and ground fault protection

Product Highlights

This circuit breaker is a dual function device, offering both arc fault and ground fault interrupters in one unit, compliant with NEC, UL1699, and UL943 guidelines.

Product Information

Standard Information

• Catalog Number: HOM120PDF
• Manufacturer: Schneider Electric

Technical Specifications

• Dimensions: Height 3.13 inches, Width 1 inch, Depth 2.98 inches
• Current Rating: 20 Amp
• Voltage Rating: 120 Volt
• Wire Size: Accepts 14 AWG to 8 AWG copper or aluminum wire
• Mounting Type: Plug-in
• Certifications: UL Listed
• Warranty Length: Lifetime
