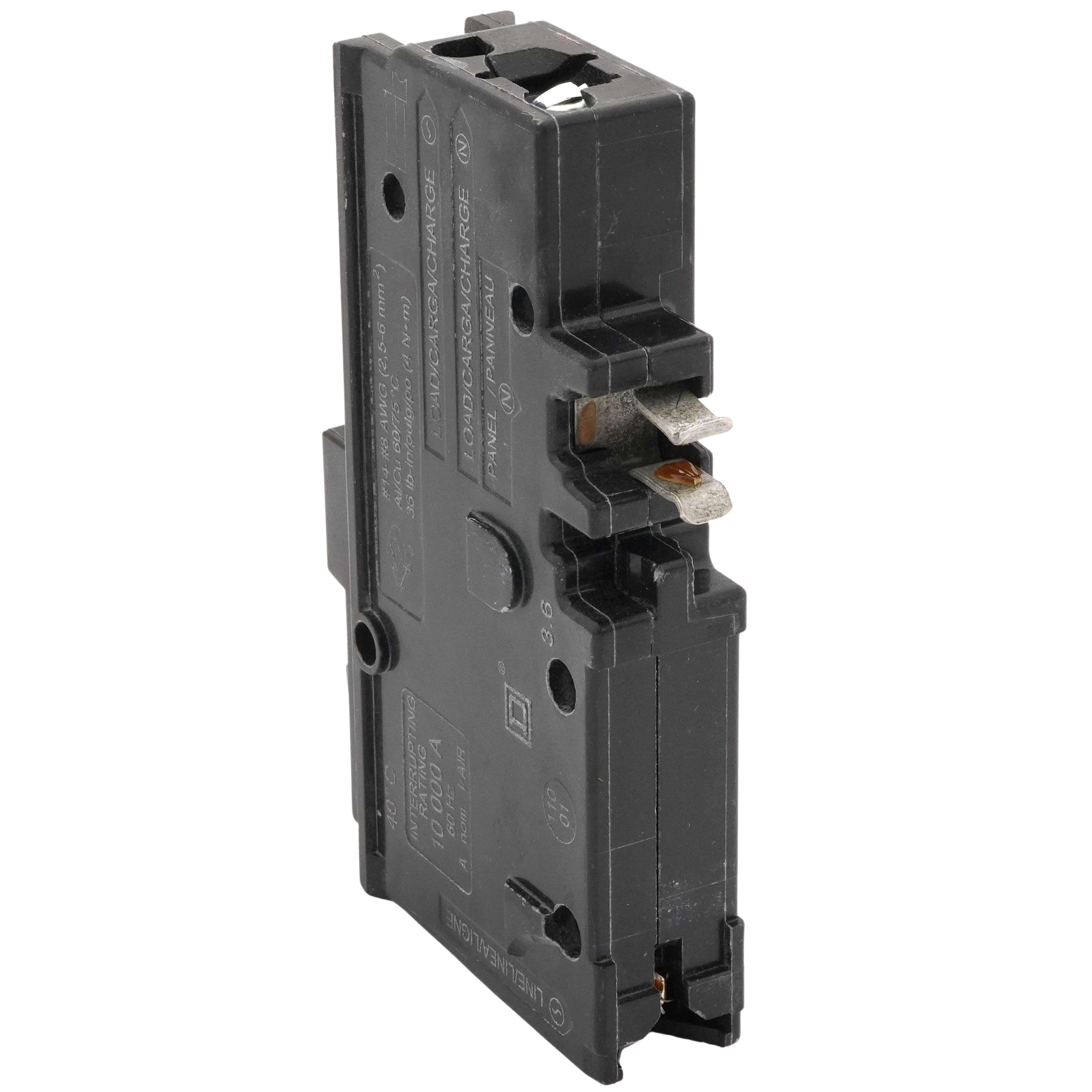

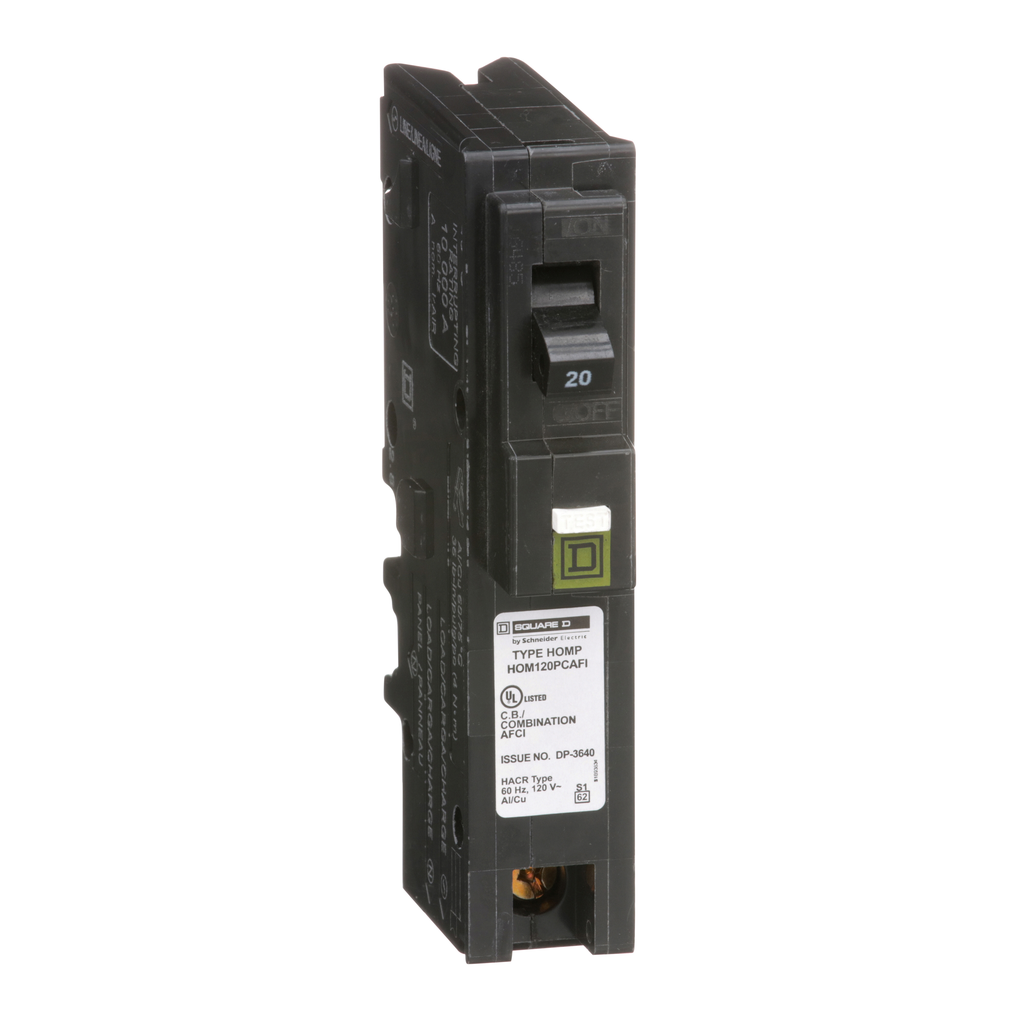

Square D HOM120PCAFI 1-Pole 20 Amp 120 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

Square D HOM120PCAFI is a 1-pole, 20 Amp, 120 Volt plug-on thermal magnetic miniature circuit breaker. It is designed to quickly install into Homeline load centers for reliable circuit protection. The breaker is HACR rated and features a ten kA interrupt capacity, providing essential safety in residential applications.

• HACR rated for heating, air conditioning, and refrigeration equipment
• Compatible with Homeline series load centers
• Plug-on neutral design simplifies installation

Product Highlights

This breaker ensures effective overload and short circuit protection while meeting the requirements of the National Electric Code. The plug-on neutral design minimizes wiring complexity, enhancing installation efficiency. It comes with a lifetime warranty backing its quality.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: HOM120PCAFI
• Voltage: 120 Volt
• Amperage: 20 Amp
• Current Type: AC
• Number of Poles: 1 Pole
• Overall Dimensions: Height 3.13 inches, Width 1 inch, Depth 2.98 inches
• Wire Size Range: 14 AWG to 8 AWG copper or aluminum
• Certifications: UL Listed
• Country of Origin: Mexico
