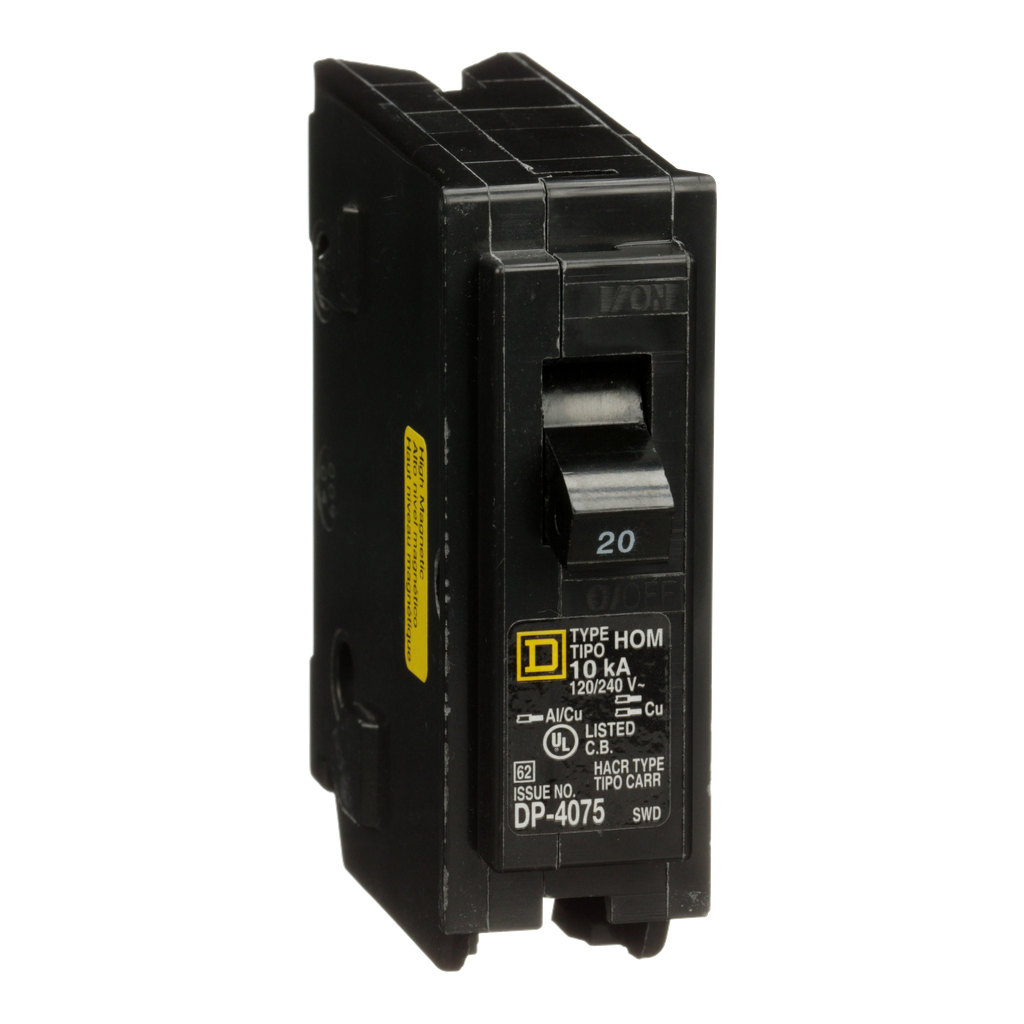

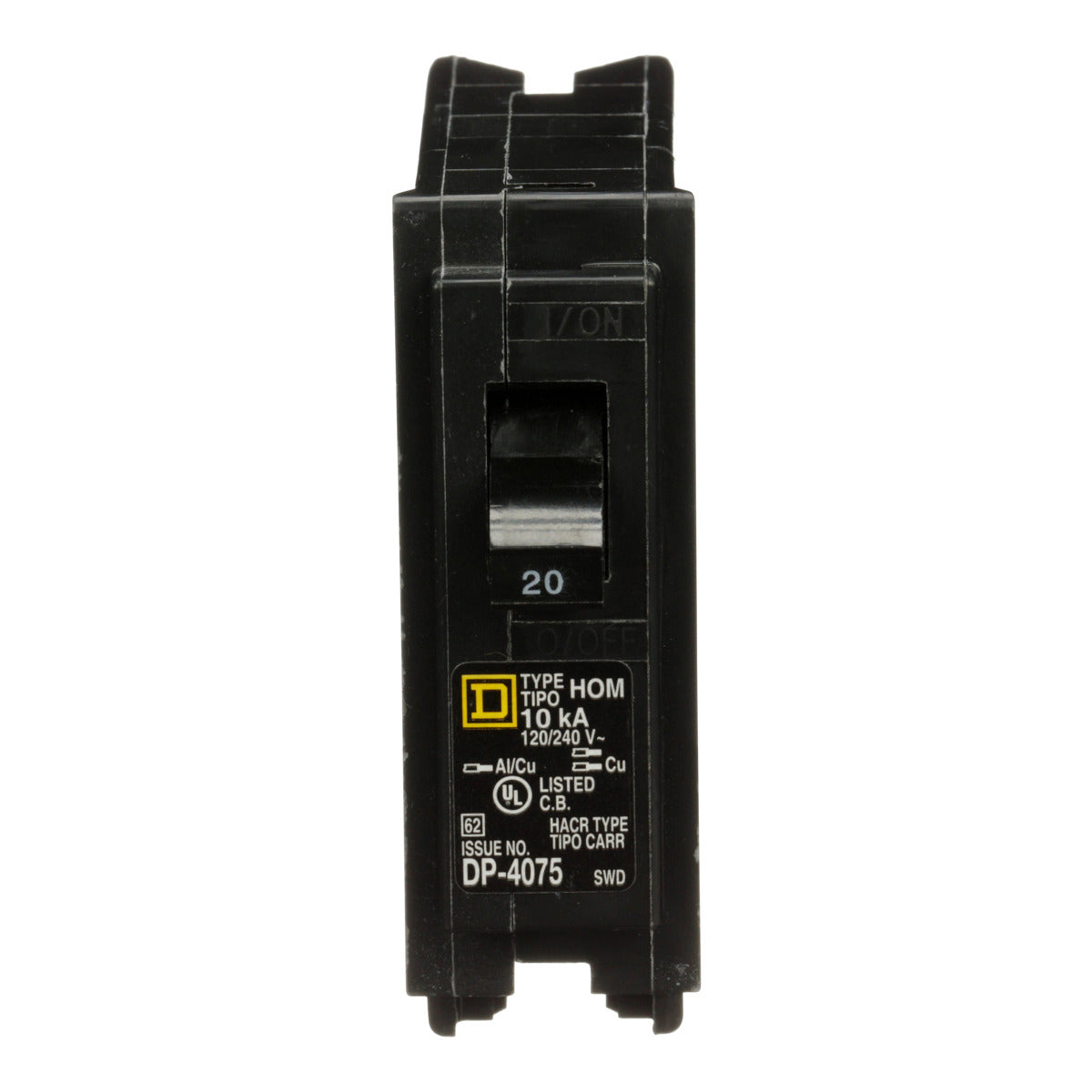

Square D HOM120HM Miniature Circuit Breaker 20 Amp 120/240 Volt

Product Description

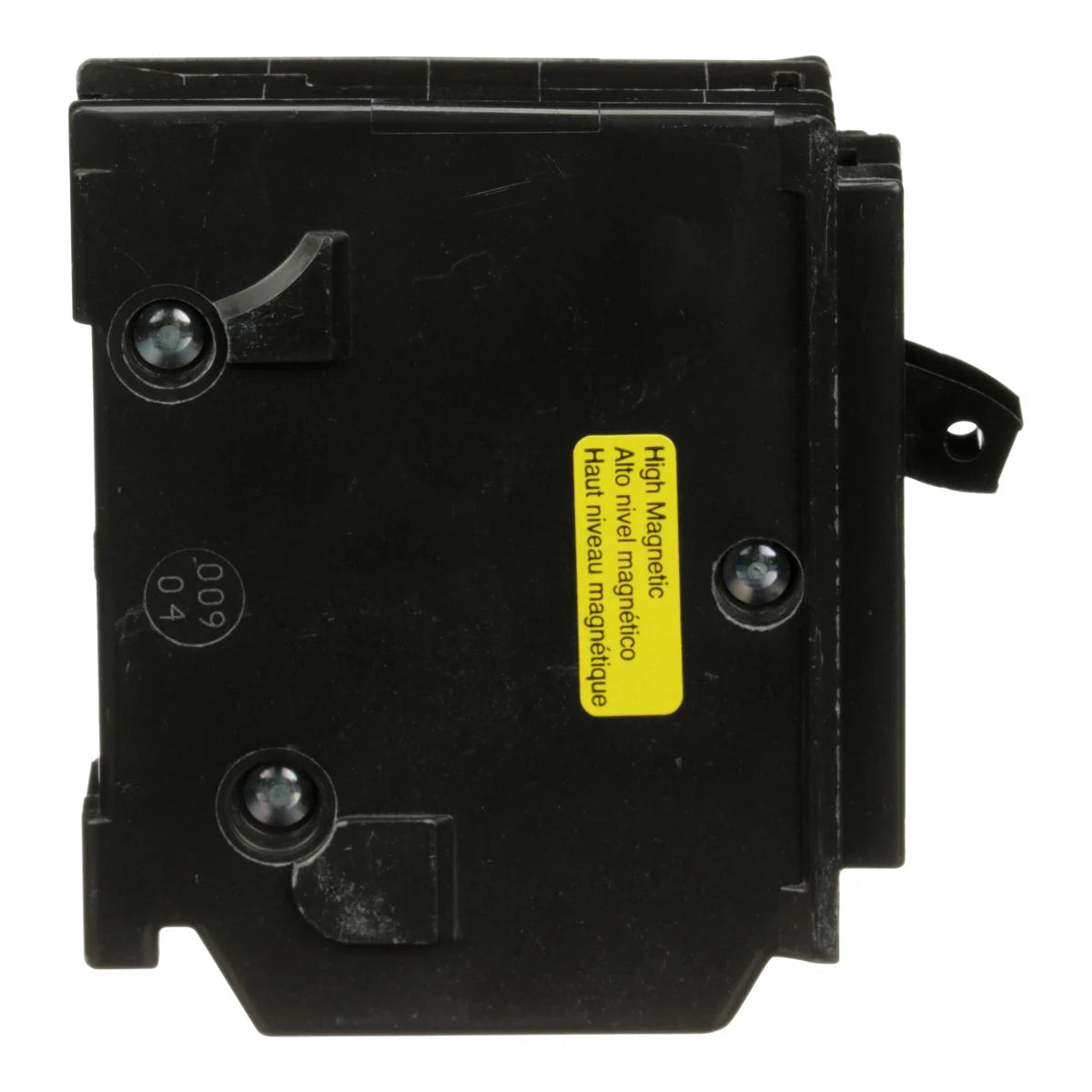

The Square D HOM120HM is a miniature circuit breaker designed for effective circuit protection. It is a plug-in type circuit breaker rated for twenty amps at 120/240 volts. This device is suitable for use in Homeline load centers and is especially useful in environments where high inrush current may occur. The HOM120HM circuit breaker includes a one-pole configuration and features a breaking capacity of ten kA. The electrical connection utilizes a clamp terminal, accommodating a range of wire sizes from fourteen AWG to eight AWG for both copper and aluminum connections. This circuit breaker measures three point thirteen inches in height, one inch in width, and two point ninety-eight inches in depth.

• Designed for fast installation in Homeline load centers.
• Plug-in mounting allows straightforward integration into existing systems.
• UL Listed for safety and reliability.

Product Highlights

The HOM120HM circuit breaker delivers dependable overload and short circuit protection for various electrical applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM120HM
• Current Rating: 20 Amp
• Voltage Rating: 120/240 Volt
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
