Product Description

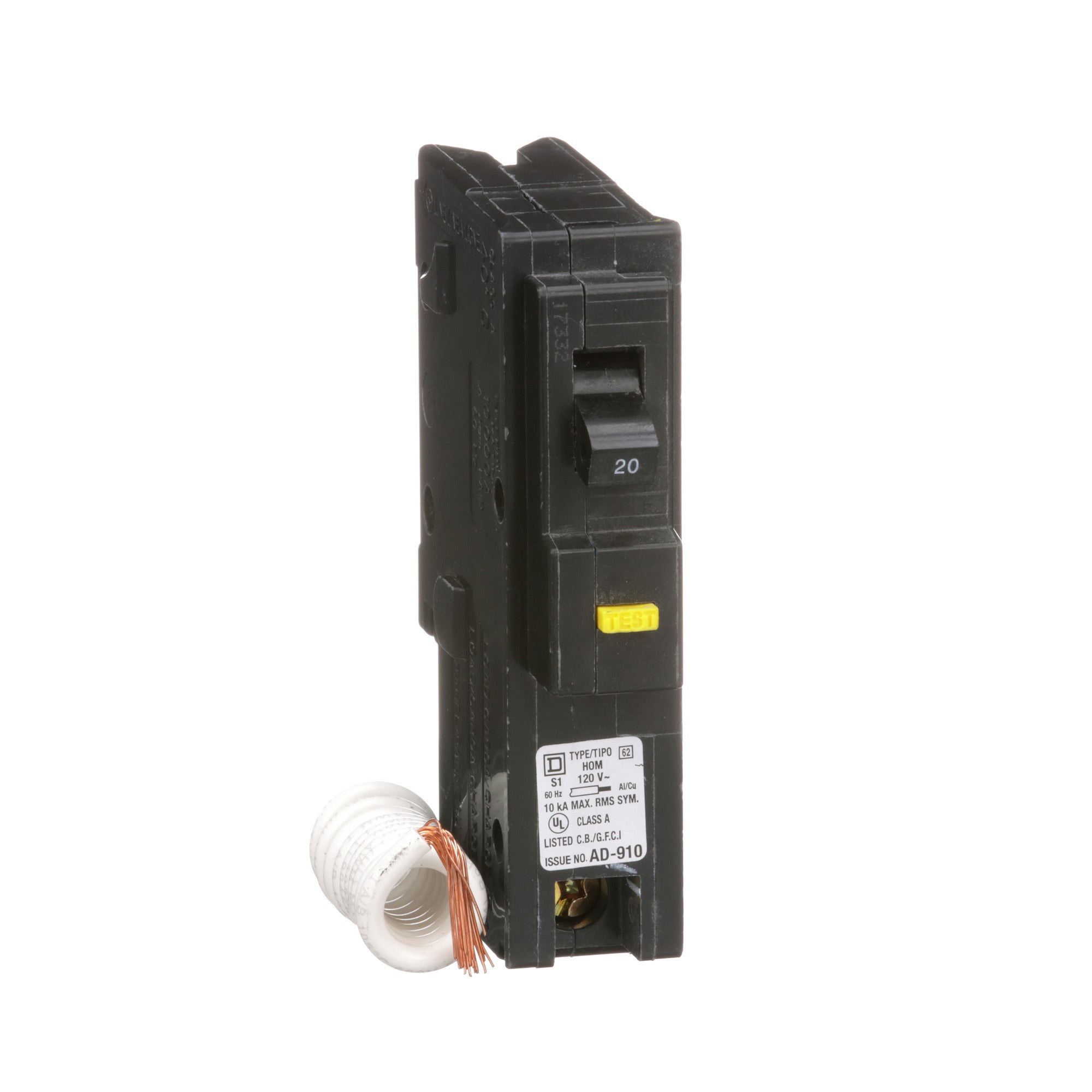

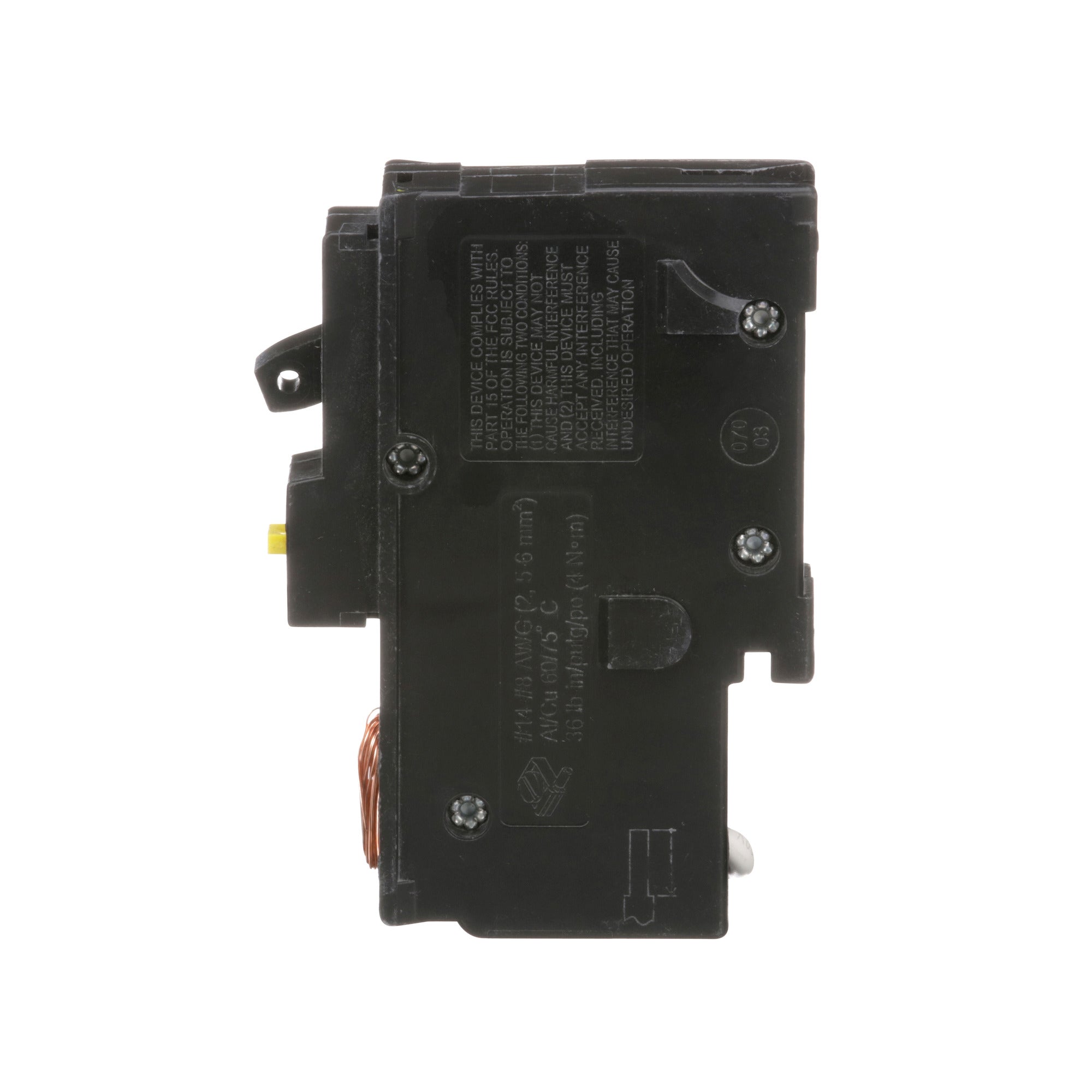

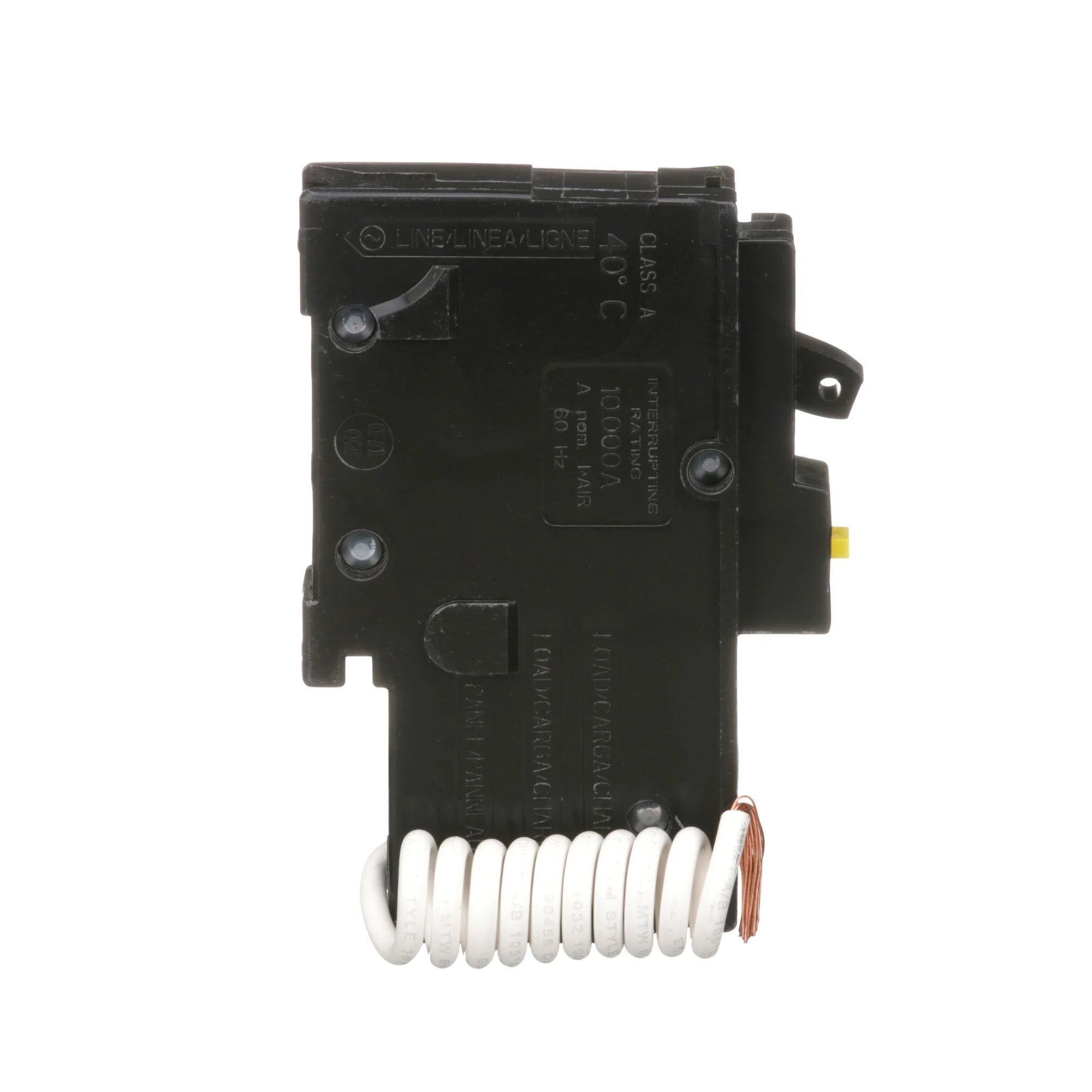

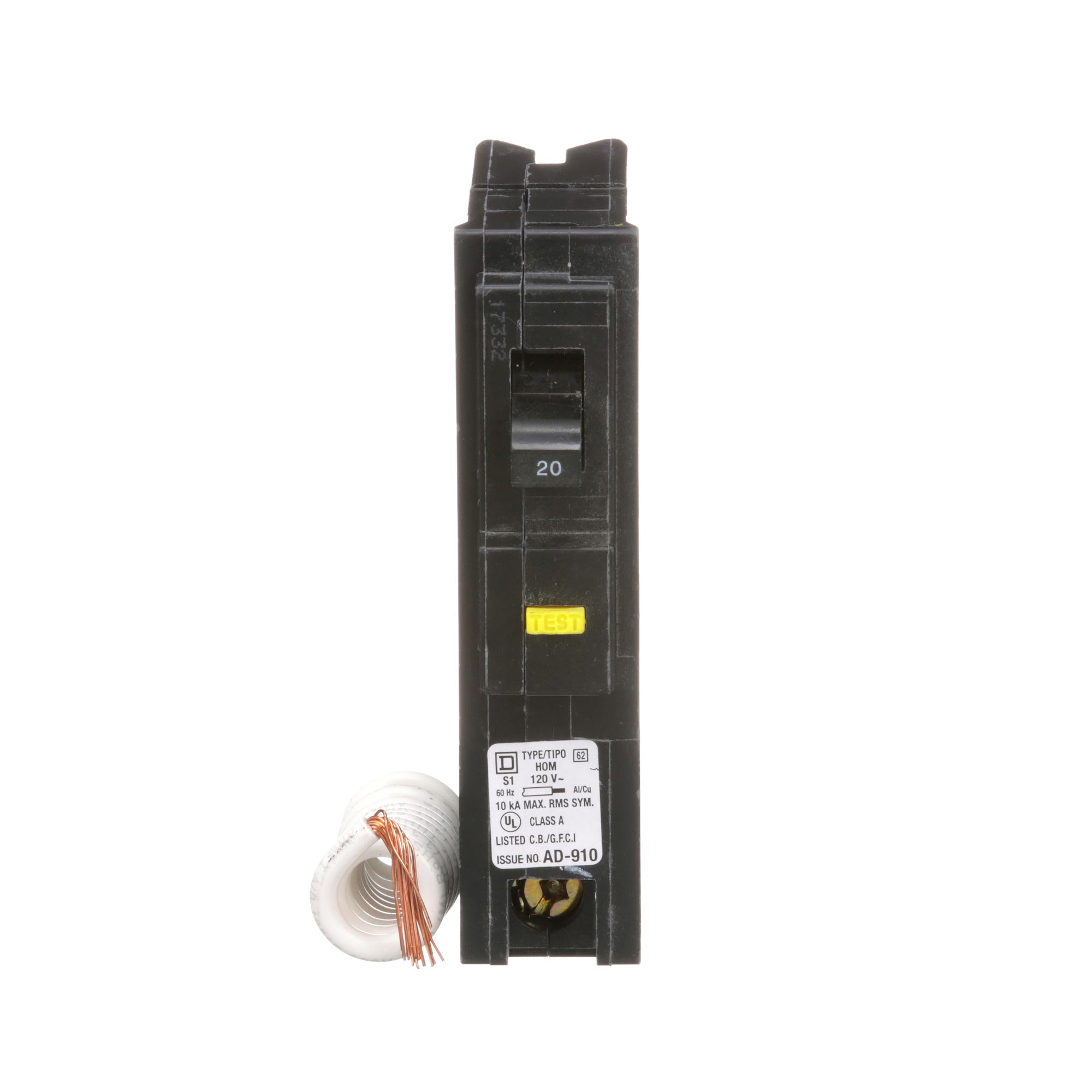

Square D HOM120GFI is a miniature circuit breaker designed for effective circuit protection. This circuit breaker is recognized for its fast installation and reliable operation. It connects easily to Homeline load centers and is rated for 120 volts and 20 amps. It features a ground fault protection mechanism that meets Class A standards, activating when a ground fault current reaches six milliamperes. With a breaking capacity of 10 kA, it ensures robust protection against overloads and short circuits.
- Compact design for easy installation
- Rated for 20A at 120VAC
- Ground fault protection included
Product Highlights
This circuit breaker is HACR rated and includes a clamp terminal that accepts wire sizes from 14 AWG to 10 AWG copper and aluminum. It is UL Listed for safety and reliability.
Product Information
Standard Information
-
Brand: Square D
-
MPN: HOM120GFI
-
Country of Origin: Mexico
Technical Specifications
-
Current Rating: 20 Amp
-
Voltage Rating: 120 Volt
-
Number of Poles: 1 Pole
-
Height: 3.13 inches
-
Width: 1.0 inch
-
Depth: 2.98 inches
-
Interrupting Rating: 10 kAIC
-
Wire Size Compatibility: 14 AWG to 10 AWG
