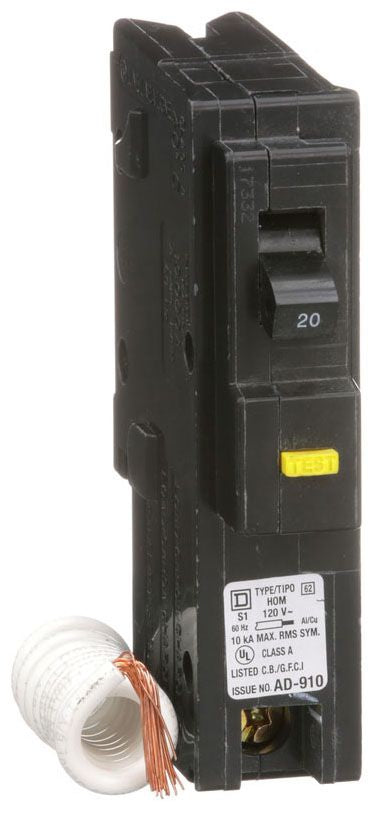

Square D HOM120GFI Breaker Ckt Mintr 120/240VAC 20A 10KA 1

Product Description

The Square D HOM120GFI is a miniature circuit breaker with a voltage rating of one hundred twenty to two hundred forty VAC and an amperage rating of twenty amperes. This device features an interrupt rating of ten kiloamps and is designed for plug-in installation. Engineered for reliability, the HOM120GFI breaker is suitable for residential and commercial applications.

• Ground fault protection with Class A sensitivity
• Designed for 14 to 10 AWG aluminum or copper wire
• UL and CSA certified for safety

Product Highlights

Enhances electrical safety with built-in ground fault protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part No: HOM120GFI

Technical Specifications

• Voltage Rating: 120/240 VAC
• Current Rating: 20 A
• Interrupt Rating: 10 kA
• Trip Type: Long Time/Instantaneous
• Wire Size: 14 to 10 AWG
• Mounting Type: Plug-In
• Dimensions: 2.98 inches L x 1 inch W x 3.13 inches H
• No. of Poles: 1
• Temperature Rating: 40 deg C
