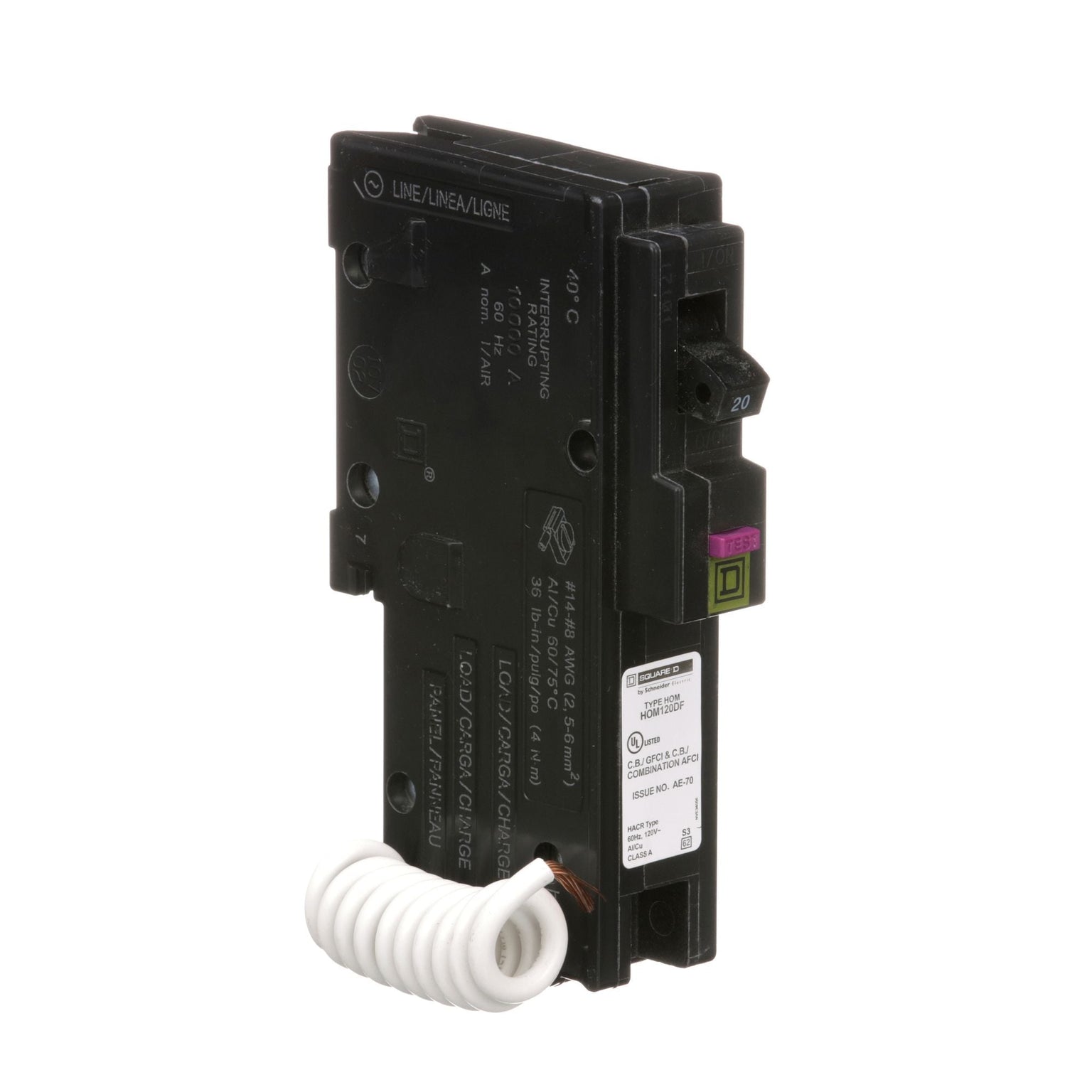

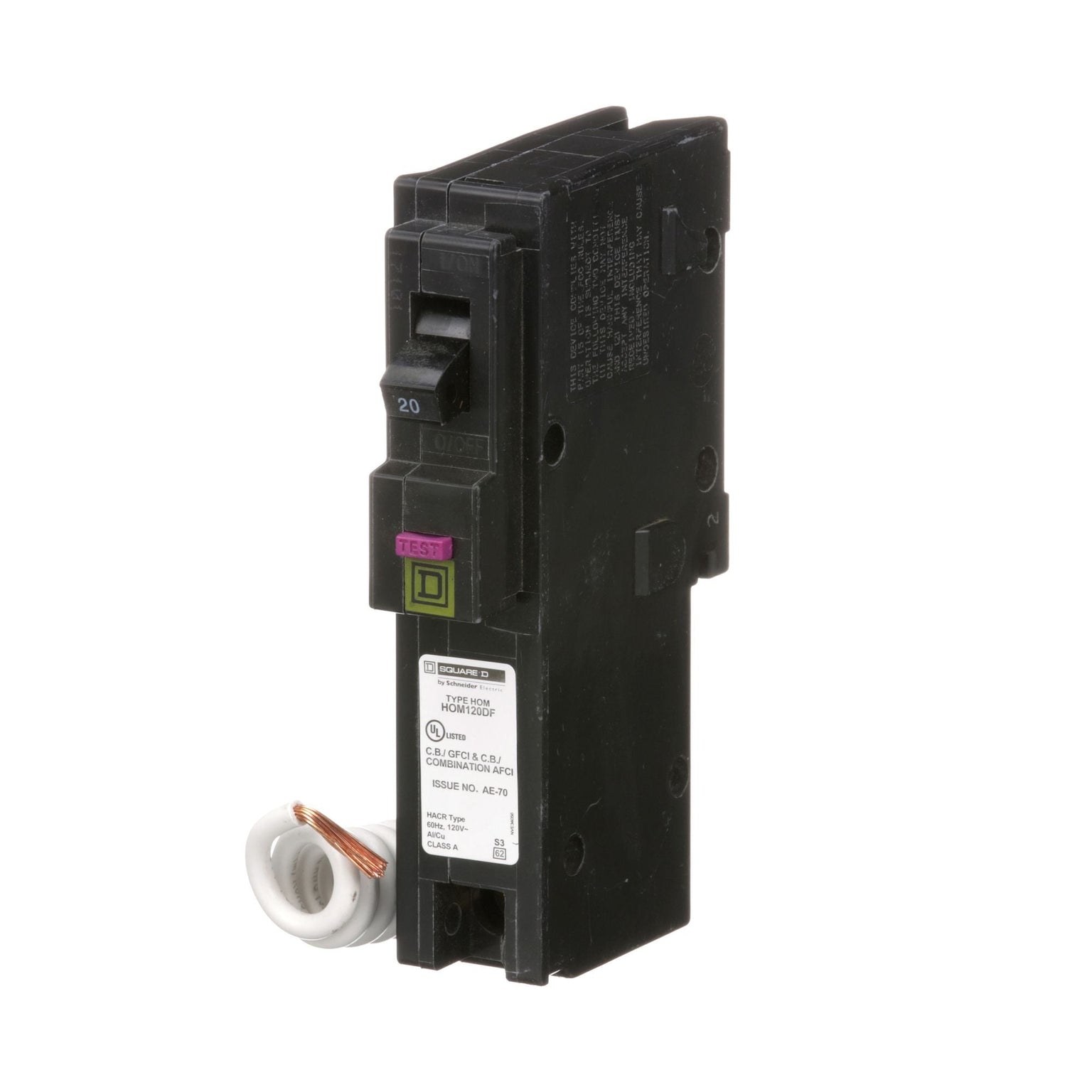

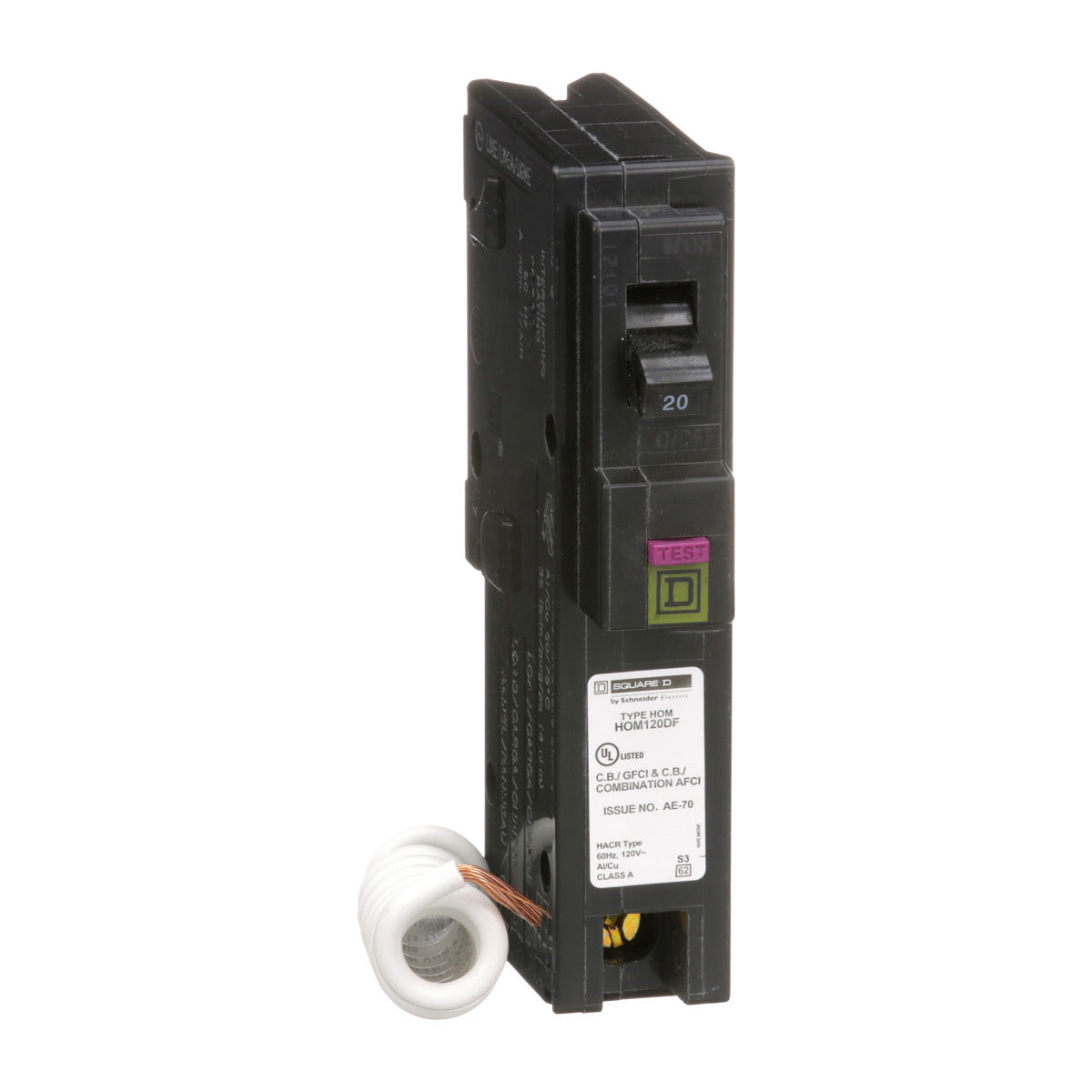

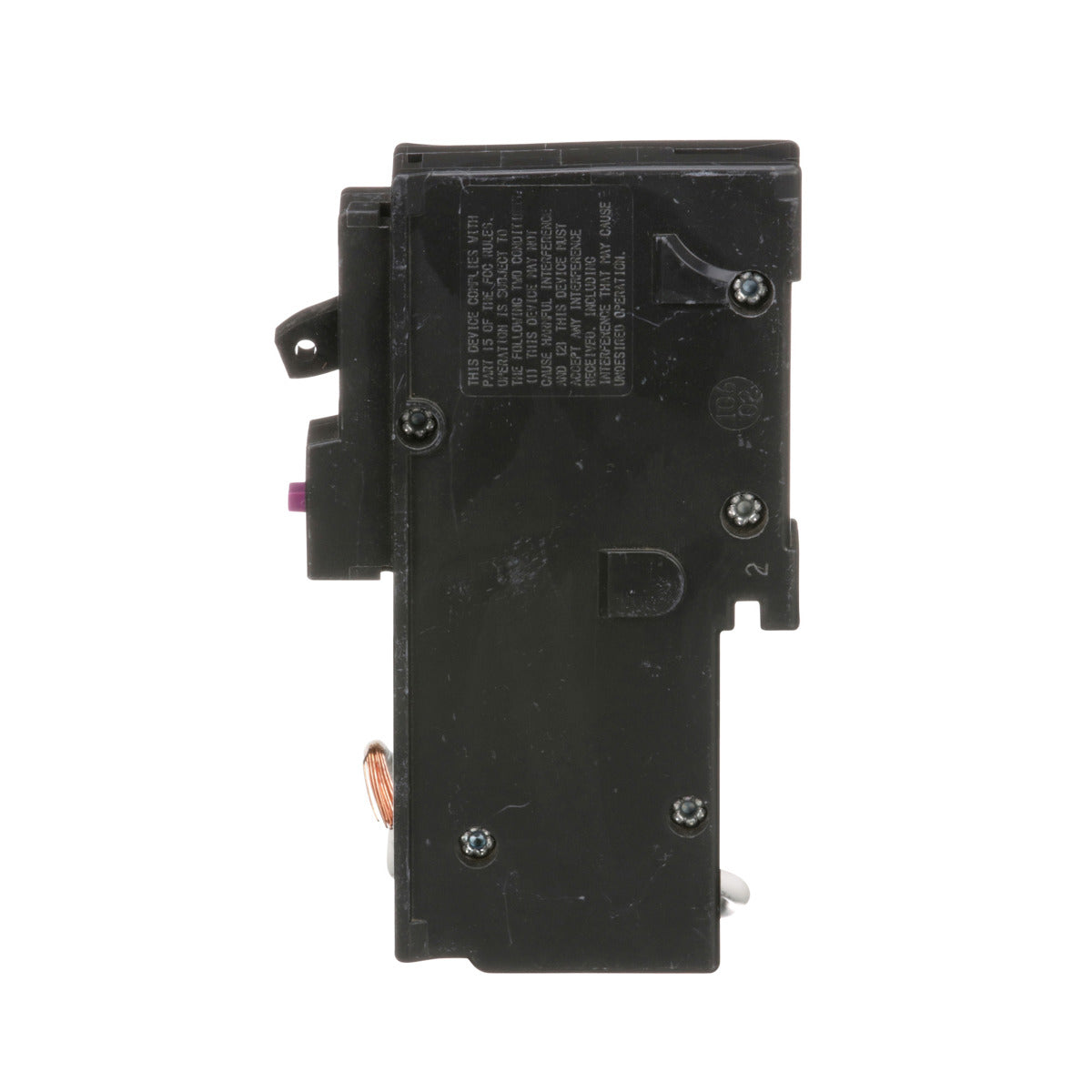

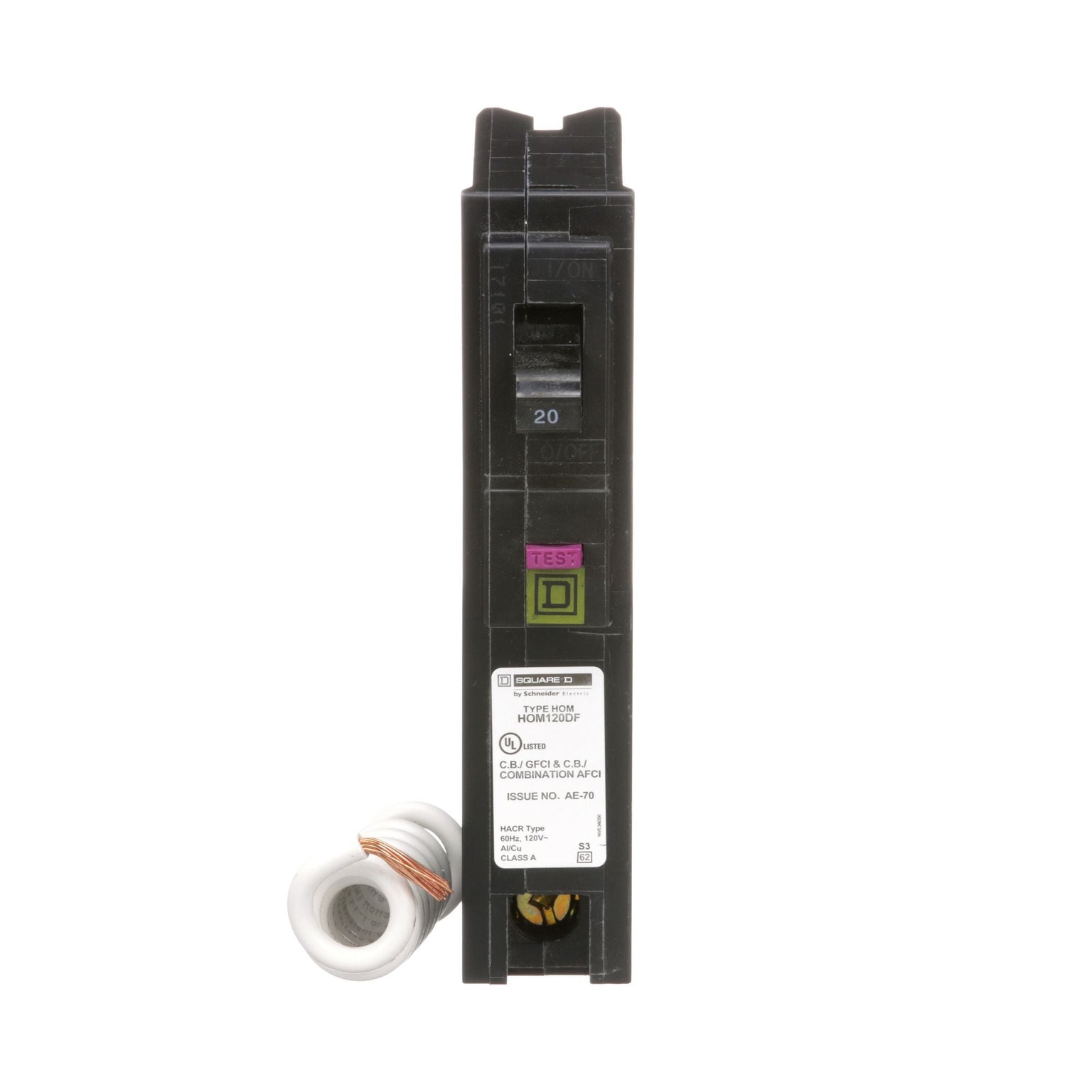

Square D HOM120DF 1-pole 20 amp 120 volt plug-on thermal magnetic miniature circuit breaker

Product Description

The Square D HOM120DF is a 1-pole, 20 Amp, 120 Volt Homeline miniature circuit breaker designed for fast installation and superior circuit protection. It plugs into Homeline load centers, providing standard circuit protection and is HACR rated. This dual-function breaker combines arc fault and ground fault circuit interrupters, offering overload and short circuit protection in a single device. It features a 10 kA breaking capacity and a clamp terminal for 14-8 AWG copper or aluminum wire.

• Engineered for fast installation and superior circuit protection.
• Dual function combines arc fault and ground fault circuit interrupters.
• Provides overload, short circuit, arc fault, and ground fault protection.

Product Highlights

Combines arc fault and ground fault protection with overload and short circuit protection in one device.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM120DF
• Country of Origin: Mexico

Technical Specifications

• Type: Thermal Magnetic Miniature Circuit Breaker
• Brand: Square D
• Frame: HOM
• Amperage: 20 Ampere
• Voltage: 120 VAC
• Sub Brand: HOMELINE
• Trip Type: THERMAL-MAGNETIC
• Wire Size: (1) 14 to 8 AWG (Copper/Aluminum), (2) 14 to 10 AWG (Copper)
• HACR Rated: Yes
• Mounting Type: Plug-On
• Electrical Connection: Pigtail neutral;Clamp terminal for 2 cables
• Certifications: UL
• Poles: 1
• Interrupt Rating: 10 kAIC
• Number of Spaces: 1
• Protection Type: Combination ARC-fault And Ground Fault Class A 6 MA
• Operating Temperature: 40 degrees C
• Protection Features: Overload, Short Circuit, Arc Fault, Ground Fault
• Standards Compliance: NEC, UL1699, UL943
• Trip Sensitivity: 6 Milliampere
• Compatible With: Homeline Loadcenter
• Ground Fault Current Protection: Greater than 6mA
• Phase: 1
• Protection Functions: LI - Long-Time and Instantaneous
