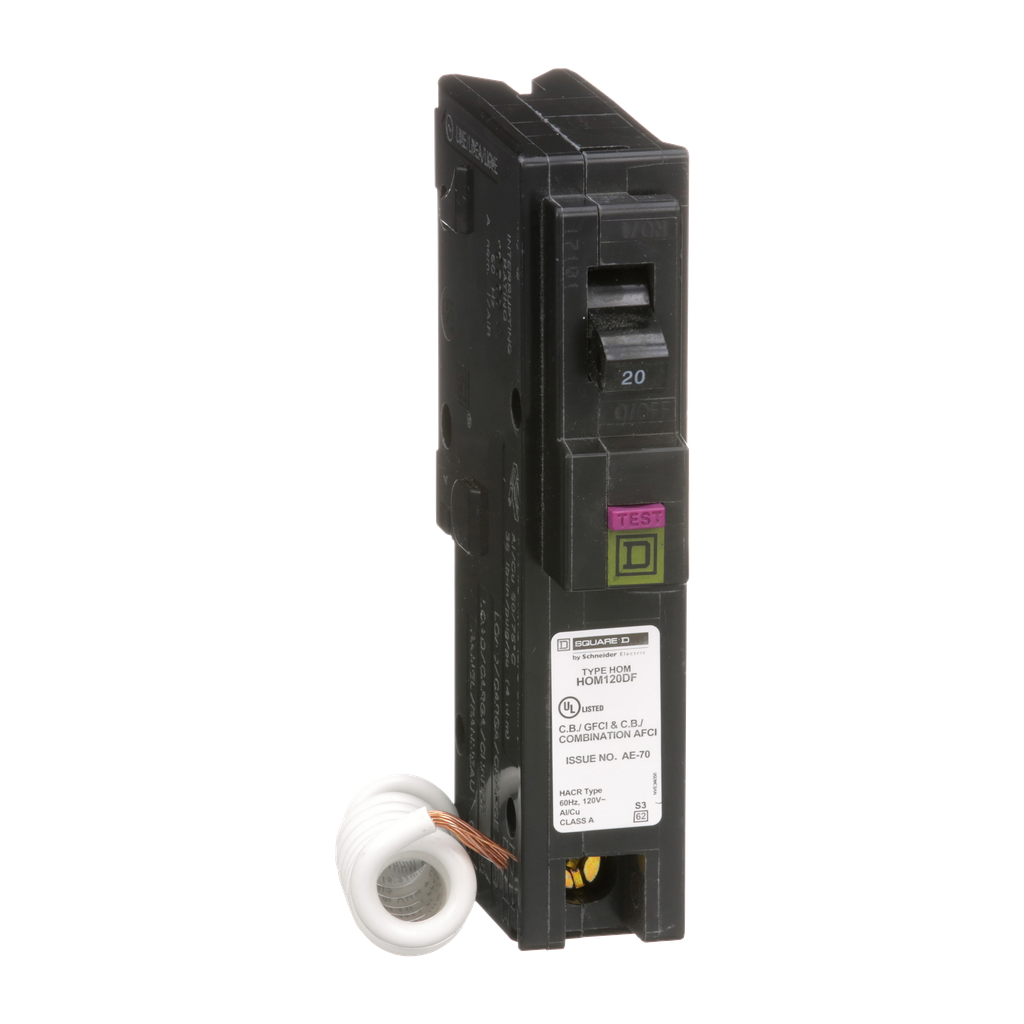

Square D HOM120DF 1-Pole 20 Amp 120 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D HOM120DF is a miniature circuit breaker designed for fast installation and reliable circuit protection. This device is suitable for use in Homeline load centers and provides standard circuit protection. The HOM120DF is rated for 20 Amps at 120 Volts and features a plug-in mounting system, facilitating quick and easy integration.

• 1-pole thermal magnetic breaker, 20 Amps, 120 Volts.
• Combines arc fault and ground fault protection in one device.
• UL Listed for safety and compliance.

Product Highlights

This breaker ensures overload and short circuit protection, along with arc fault and ground fault safeguards, all within a compact design that meets NEC, UL1699, and UL943 standards.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM120DF

Technical Specifications

• Break Rating: 10 kAIC
• Dimensions: Height 3.13 inches, Width 1 inch, Depth 2.98 inches
• Wire Size Compatibility: 14 AWG to 8 AWG copper or aluminum
• Trip Type: Thermal-Magnetic
• Country of Origin: United States
• Warranty: Lifetime
• Certifications: UL Listed
• Applications: HACR rated
