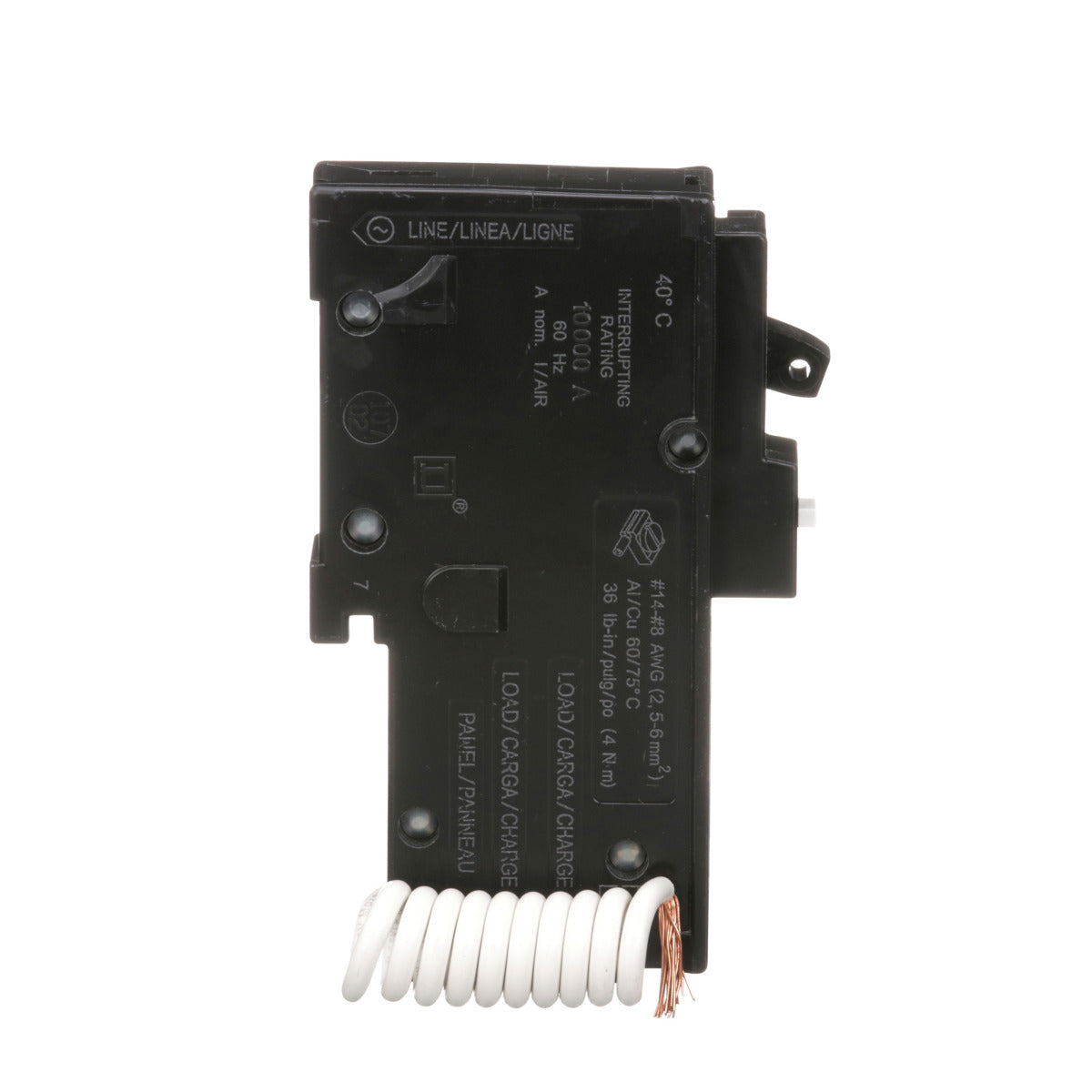

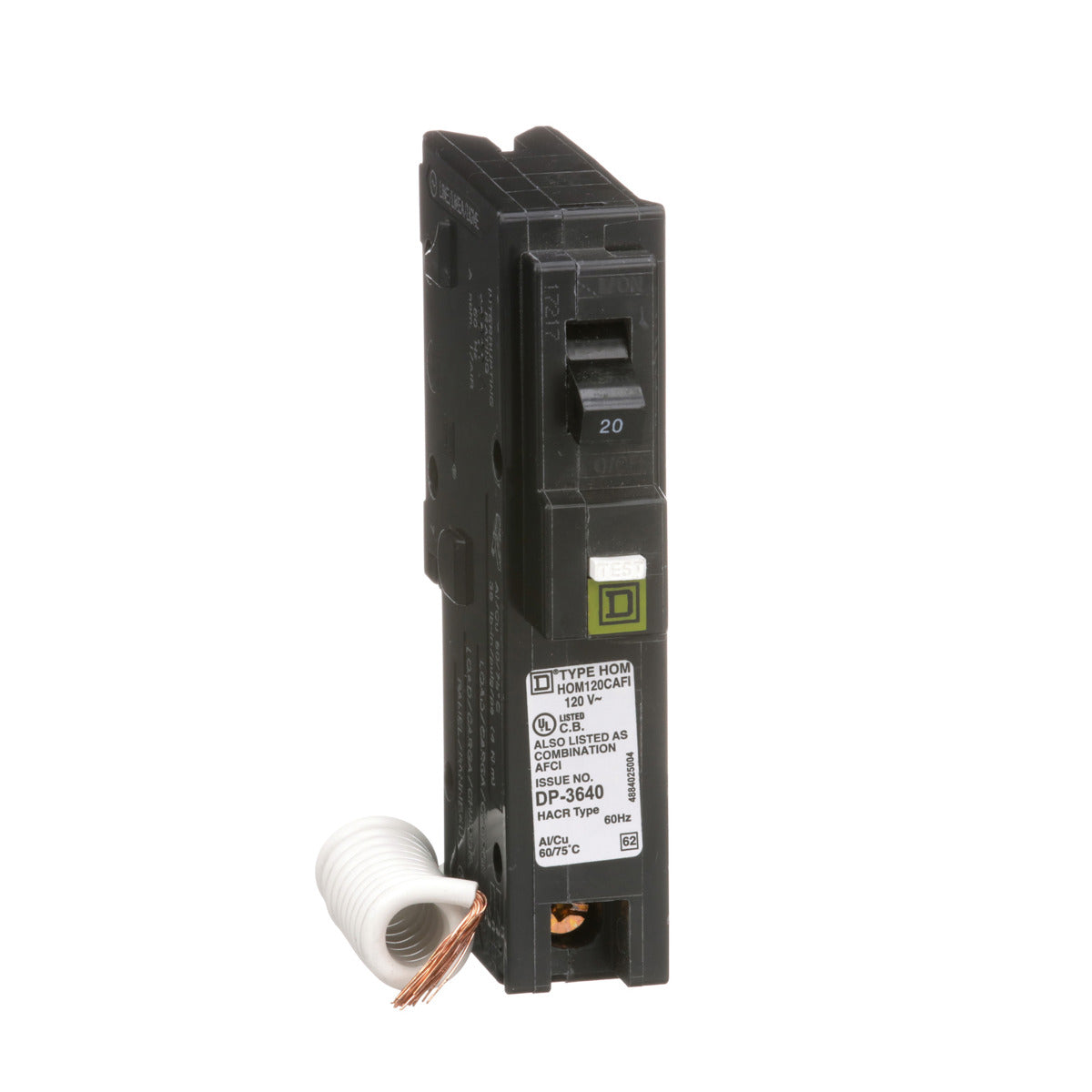

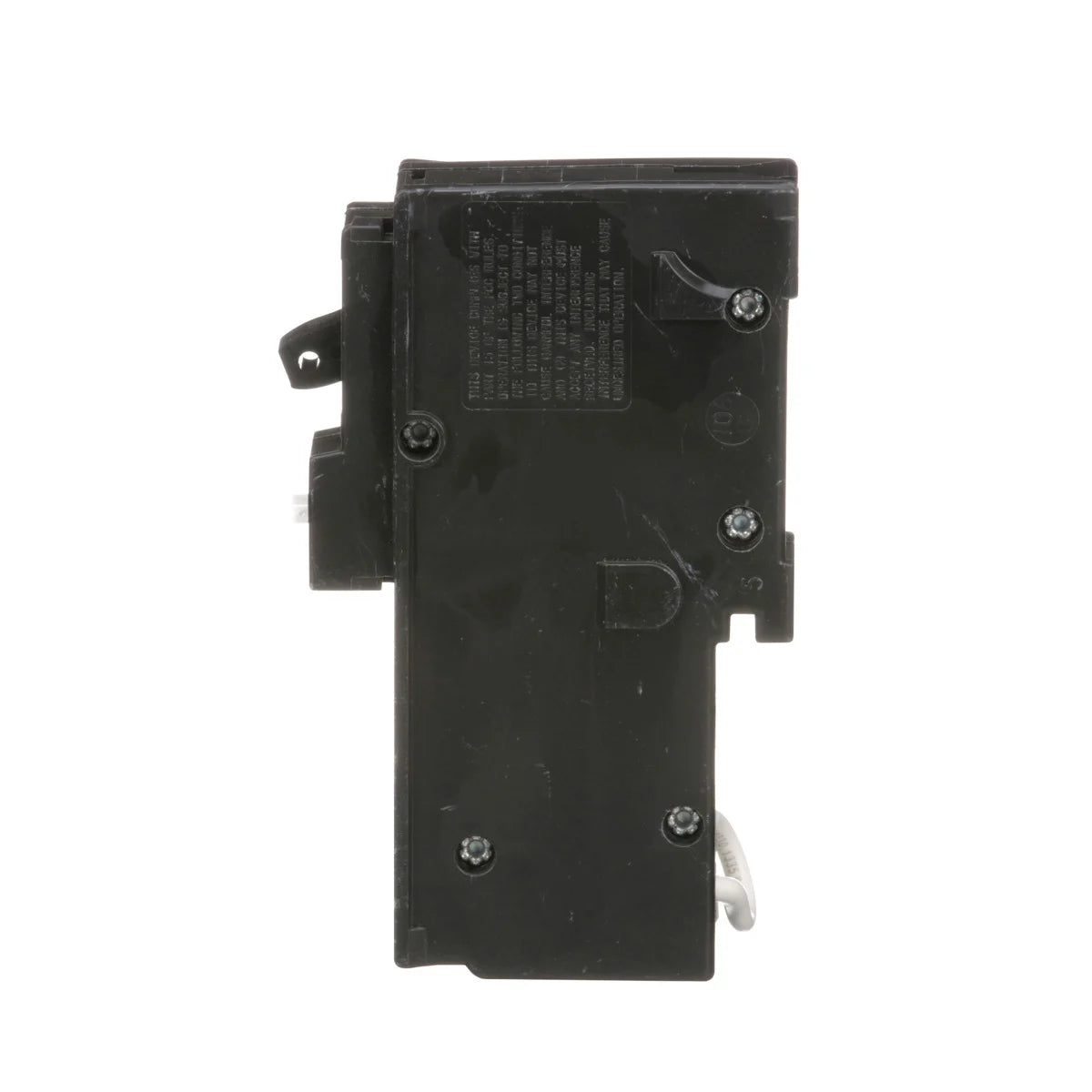

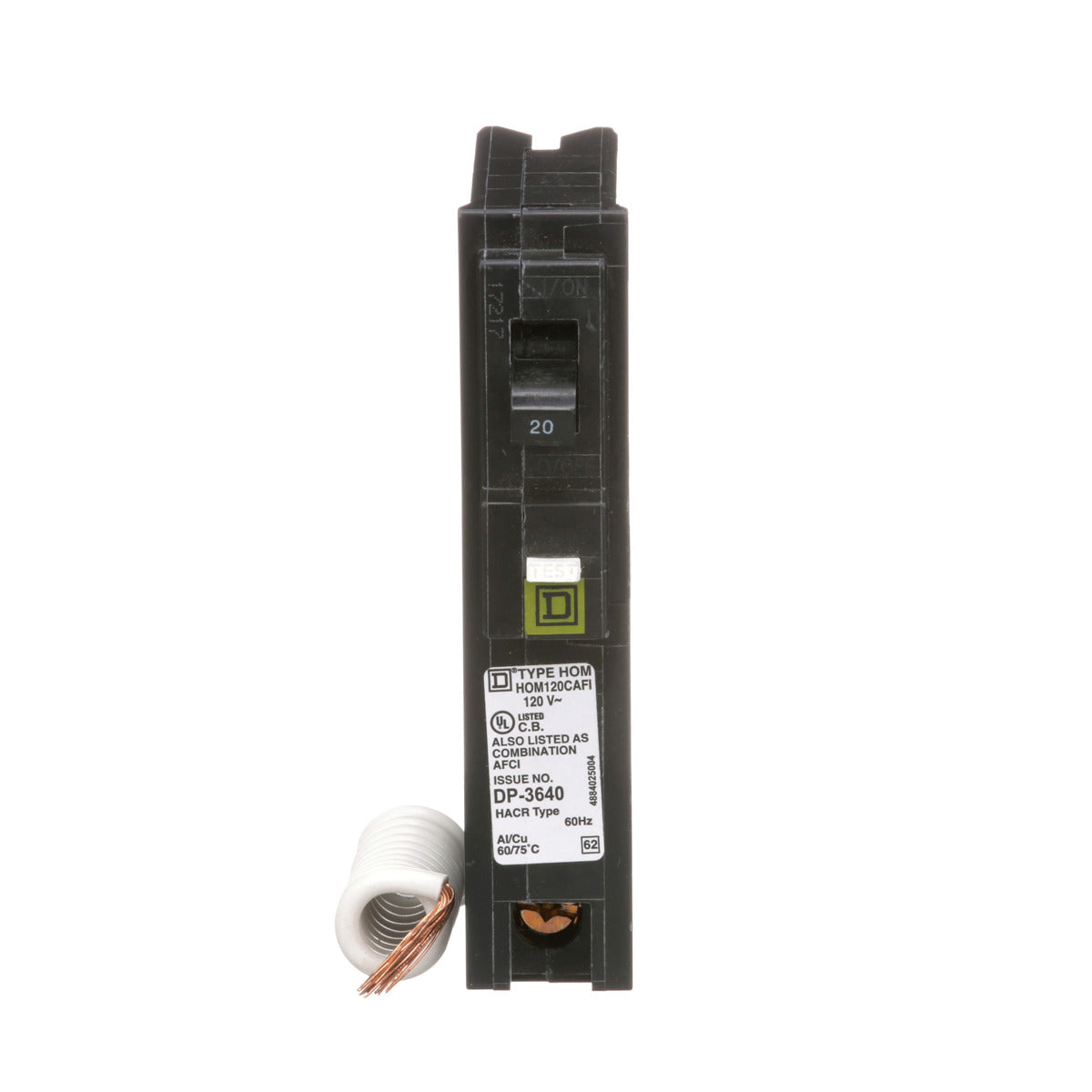

Square D HOM120CAFI Miniature Circuit Breaker 20 Amp 120 Volt

Product Description

The Square D HOM120CAFI is a 20 Amp, one-pole miniature circuit breaker designed for fast installation and effective circuit protection. This breaker is compatible with Homeline load centers and offers overload and short-circuit protection, meeting NEC and UL1699 standards. It features a clamp terminal for a wire range of fourteen to eight AWG copper or aluminum. The compact dimensions are three point thirteen inches in height, one inch in width, and two point ninety-eight inches in depth.

• HACR rated for heating, air conditioning, and refrigeration.
• Provides a breaking capacity of ten kA.
• UL listed for safety and reliability.

Product Highlights

This Homeline breaker includes advanced trip indication technology that assists in quickly identifying the type of fault that has occurred, reducing troubleshooting time and potentially saving costs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM120CAFI
• Voltage: 120 Volt
• Current Rating: 20 Amp
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Dimensions: 3.13 inches (Height) x 1 inch (Width) x 2.98 inches (Depth)
• Wire Size: AWG 14 to AWG 8
