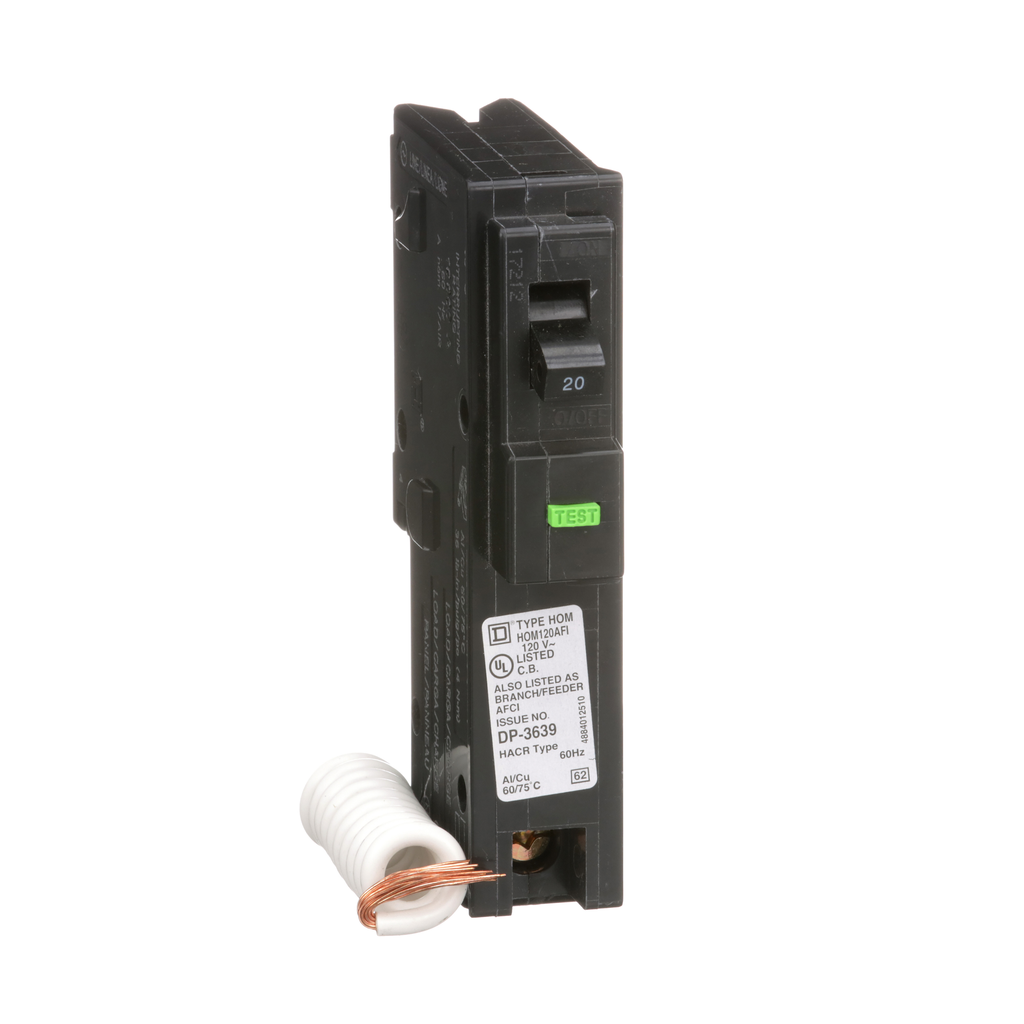

Square D HOM120AFI Miniature Circuit Breaker 20 Amp 120 Volt

Product Description

The Square D HOM120AFI is a miniature circuit breaker designed for reliable circuit protection. It is engineered for fast installation in Homeline load centers. This device provides standard protection and meets HACR rating standards, equipped with a one-pole connection. The circuit breaker is rated for twenty amps at one hundred twenty volts, with a breaking capacity of up to ten kA.

• HACR rated for air conditioning and refrigeration circuits
• Accepts wire sizes from fourteen to eight AWG
• UL Listed for safety and reliability

Product Highlights

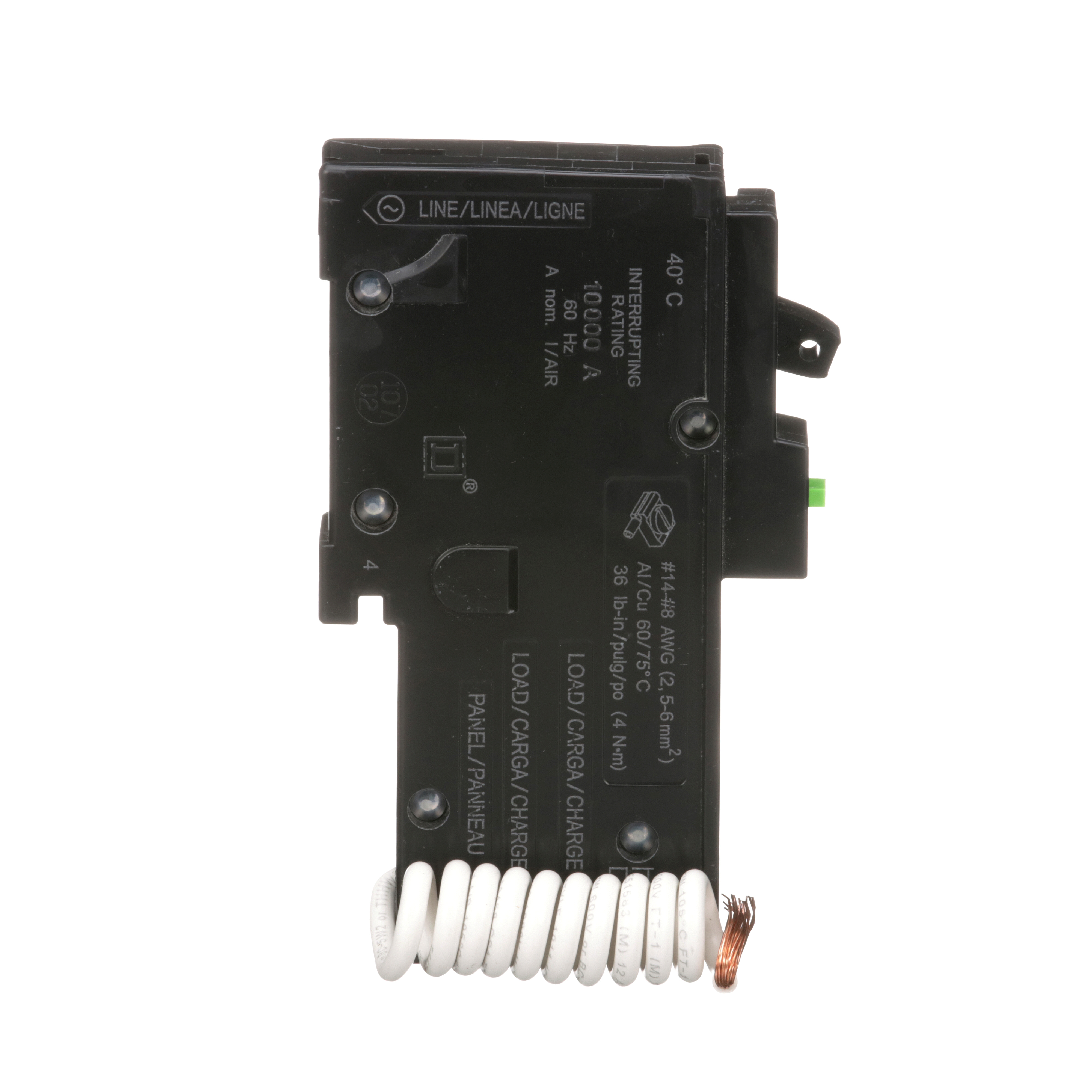

This circuit breaker features a clamp terminal for easy connections and has a pigtail neutral wire for extended compatibility. It offers efficient performance in protecting residential and commercial electrical systems against overload and short circuits.

Product Information

Standard Information

• Catalog Number: HOM120AFI
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit breaker
• Number of Poles: 1
• Amperage: 20 Amp
• Voltage: 120 Volt
• Height: 3.13 inches
• Width: 1 inch
• Depth: 2.98 inches
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
