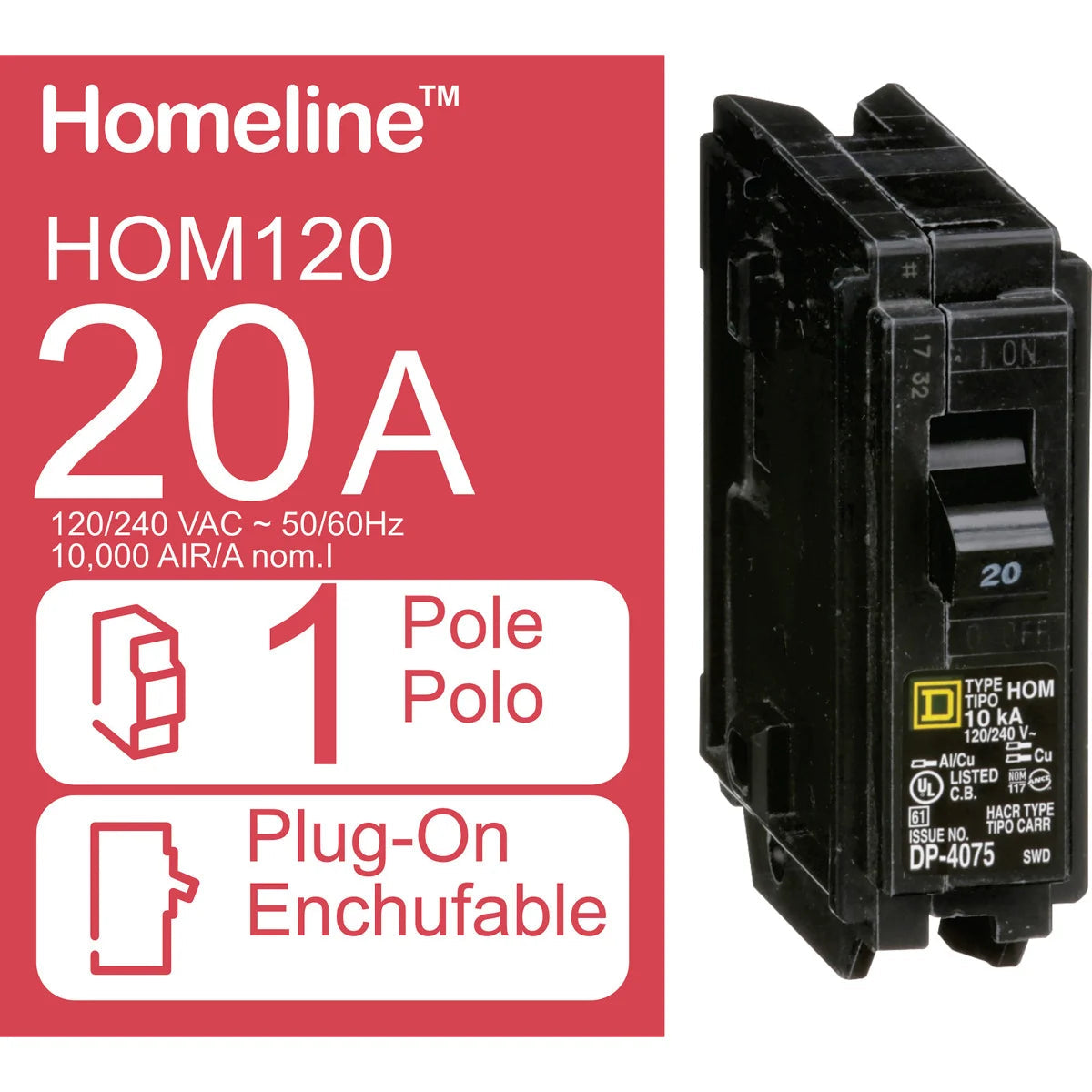

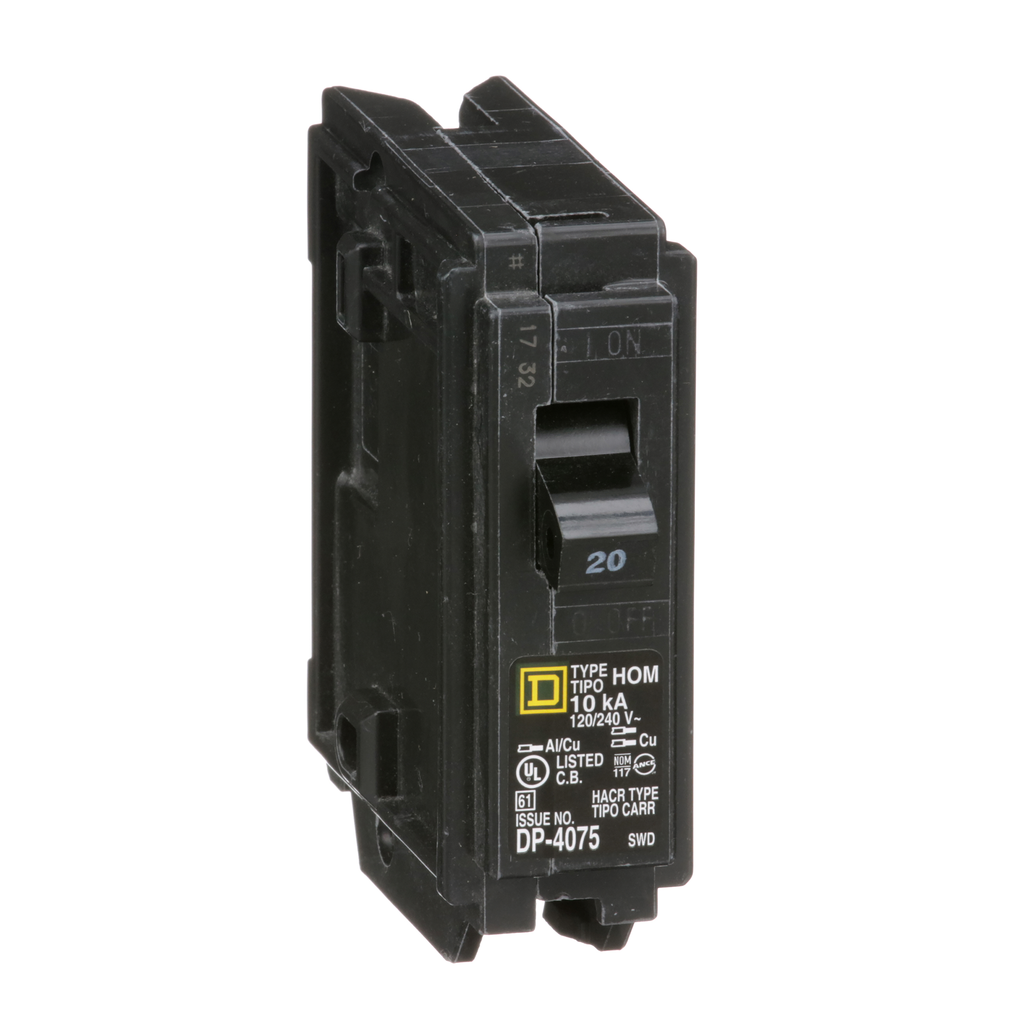

Square D HOM120 Square D HOM120 20 Amp Miniature Circuit Breaker 120/240 Volt

Product Description

The Square D HOM120 is a 20 Amp miniature circuit breaker designed for use in load centers. This device provides reliable circuit protection for residential electrical systems. It is built to meet the needs of HVAC systems, lighting, and general purpose circuits.

• Rated for 120/240 volts.
• Plug-in installation for quick setup.
• Features a 10 kA interrupting capacity.

Product Highlights

The HOM120 circuit breaker provides dependable overload and short-circuit protection while complying with UL standards. This plug-in breaker is designed for easy installation in compatible Homeline load centers.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM120
• Amperage: 20 Amp
• Voltage: 120/240 Volt
• Number of Poles: 1 Pole
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
• Wire Size Compatibility: AWG 14 to 8 aluminum/copper
• Interrupting Rating: 10 kA
• Certifications: UL Listed
• Warranty: Lifetime
