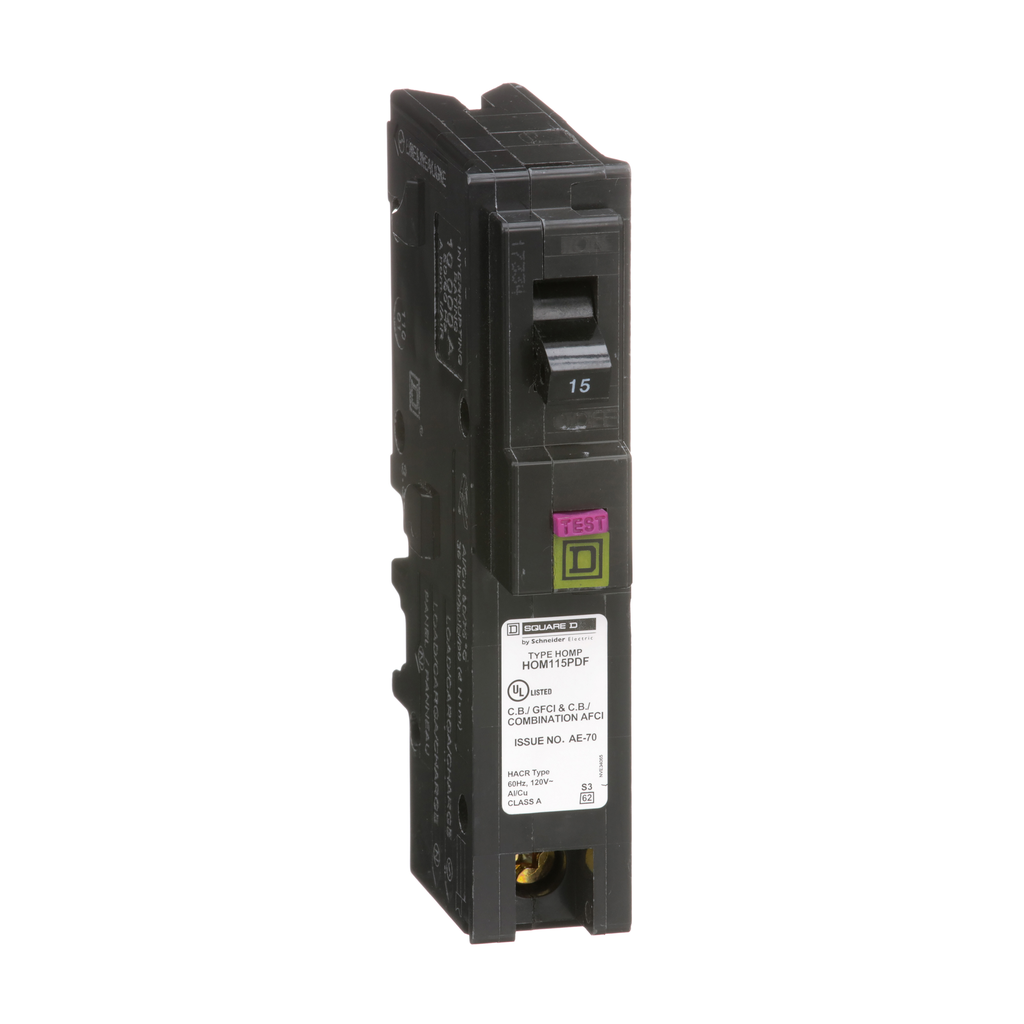

Square D HOM115PDF Miniature Circuit Breaker 15 Amp 120 Volt Plug-On Thermal Magnetic

Product Description

The Square D HOM115PDF is a 1-pole, 15 Amp, 120 Volt plug-on thermal magnetic miniature circuit breaker. It is engineered for fast installation and reliable circuit protection. This breaker plugs directly into Homeline load centers, ensuring effective circuit protection. The HOM115PDF meets HACR ratings, providing standard circuit protection and a breaking capacity of 10 kA.

• HACR rated for heating, air conditioning, and refrigeration loads.
• Dual function: combined arc fault and ground fault protection.
• Suitable for use with copper or aluminum wiring from 14 AWG to 8 AWG.

Product Highlights

Designed for residential use, the Square D HOM115PDF provides overload and short circuit protection, integrated within a compact unit that complies with NEC, UL1699, and UL943 standards.

Product Information

Standard Information

• Catalog Number: HOM115PDF
• Brand: Square D

Technical Specifications

• Frame: HOM
• Voltage: 120 Volt
• Current Rating: 15 Amp
• Trip Type: Thermal-Magnetic
• Number of Poles: 1 Pole
• Width: 1 inch
• Height: 3.13 inches
• Depth: 2.98 inches
• Interrupt Rating: 10 kAIC
• Certifications: UL Listed
• Warranty Length: Lifetime
