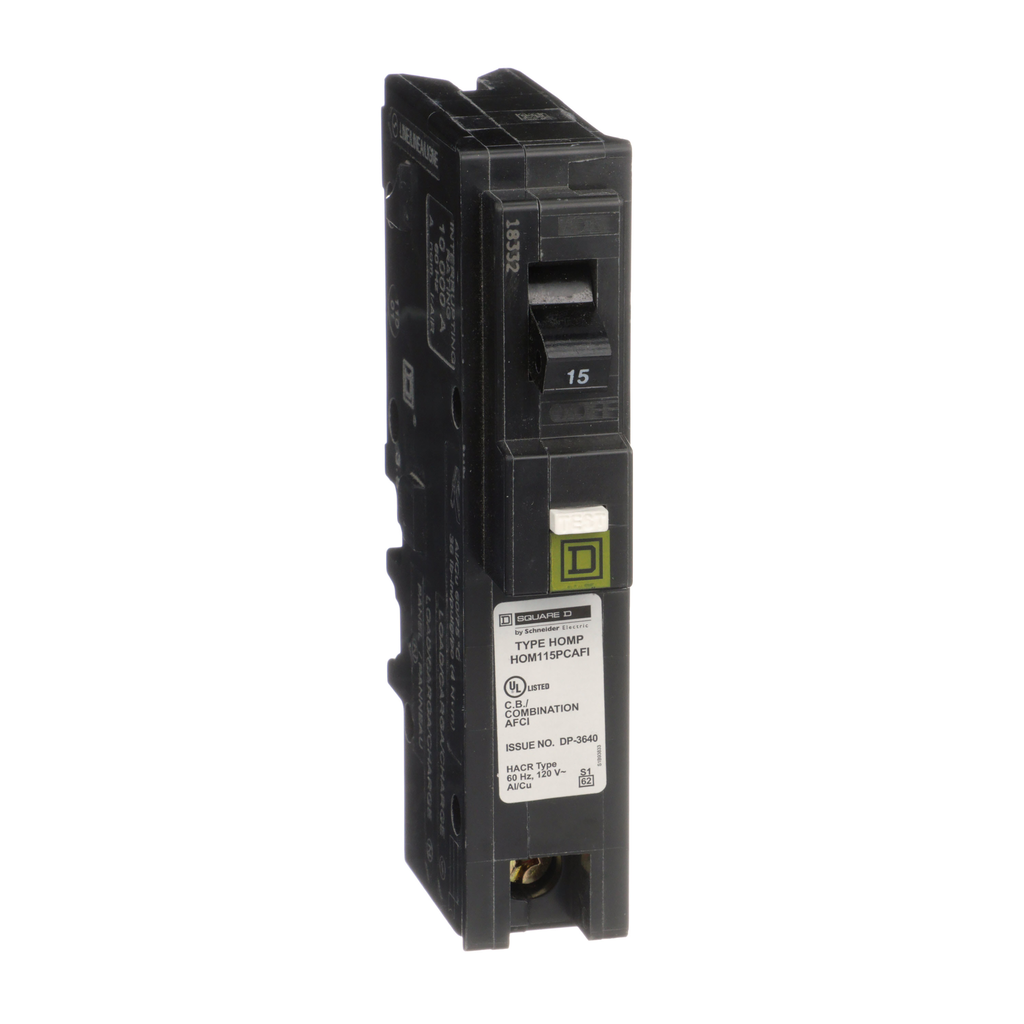

Square D HOM115PCAFI 1-Pole 15 Amp 120 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

Square D HOM115PCAFI is a plug-on thermal magnetic miniature circuit breaker rated at fifteen amps and designed to operate at one hundred twenty volts. This circuit breaker is compatible with Homeline load centers, ensuring swift installation and reliable circuit protection. The product features a plug-on neutral connection and uses screw clamp terminals for easy wiring installation, accommodating a wire range from fourteen AWG to eight AWG for both copper and aluminum wires.

• Rated for 15A at 120/240 VAC
• 10 kA breaking capacity
• UL Listed for safety compliance

Product Highlights

This circuit breaker provides standard overload and short circuit protection. It is HACR rated, meaning it is suitable for heating, air conditioning, and refrigeration circuits. The unit supports dual function as a combination arc fault circuit interrupter.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM115PCAFI
• Voltage: 120 Volt
• Current: 15 Amp
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Dimensions: Height 3.13 inches, Width 1 inch, Depth 2.98 inches
• Country of Origin: United States
• Warranty: Lifetime
