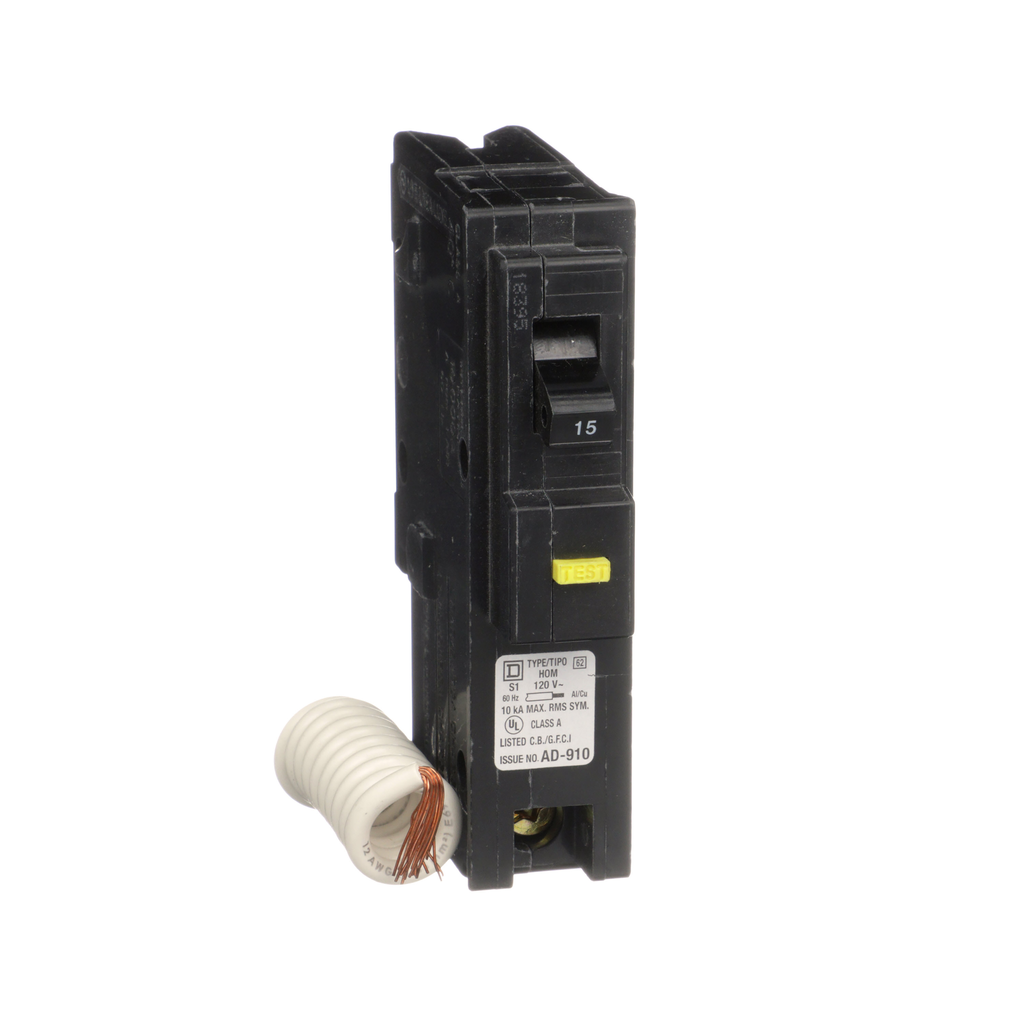

Square D HOM115GFI Miniature Circuit Breaker 15 Amp 1 Pole 120 Volt

Product Description

Square D HOM115GFI is a miniature circuit breaker designed for use in residential applications. It offers overload and short-circuit protection for electrical systems. This breaker is compatible with Homeline load centers and is rated for 15 amps at 120 volts AC. The HOM115GFI features a plug-in mounting type and has a single pole design. It is HACR rated and has a breaking capacity of 10 kA. This circuit breaker provides Class A ground fault protection, tripping at a ground fault current of six milliamperes or more. The clamp terminal is capable of accepting wire sizes from fourteen AWG to eight AWG for both copper and aluminum. The dimensions of the breaker are three point one three inches in height, one inch in width, and two point ninety-eight inches in depth. The HOM115GFI is UL listed for safety and reliability.

• Rated for 15A at 120V AC
• Single pole with plug-in mounting
• Class A ground fault protection

Product Highlights

This product is ideal for protecting residential circuits from overloads and short-circuits.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 15 A
• Voltage Rating: 120 V
• Number of Poles: 1
• Short Circuit Current Rating: 10 kA
• Circuit Breaker Type: Ground fault protecting class A 6 mA
• Height: 3.13 inches
• Width: 1 inch
• Depth: 2.98 inches
