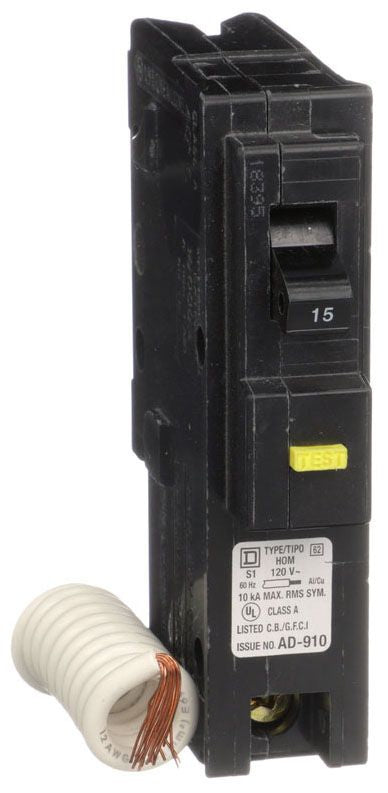

Square D HOM115GFI Miniature Circuit Breaker 120V 15A

Product Description

The Square D HOM115GFI is a miniature circuit breaker designed for reliable protection in electrical systems. This device operates at 120 volts with a current rating of 15 amperes. It is ideal for use in Homeline load centers, accommodating wire sizes ranging from fourteen to ten AWG in aluminum and copper.

• Thermal magnetic design for effective circuit protection
• Plug-on mounting simplifies installation
• UL and CSA approved for safety and reliability

Product Highlights

This circuit breaker features a compact design, making it suitable for various applications in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand Name: Homeline

Technical Specifications

• Model Number: HOM115GFI
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Size: 1 inch wide x 2.98 inches deep x 3.13 inches high
• Current Rating: 15 amperes
• Interrupting Rating: 10 kiloamperes
• Wire Size: 14 to 10 AWG (Aluminum/Copper)
• Number of Poles: 1
• Trip Sensitivity: 6 milliamperes
