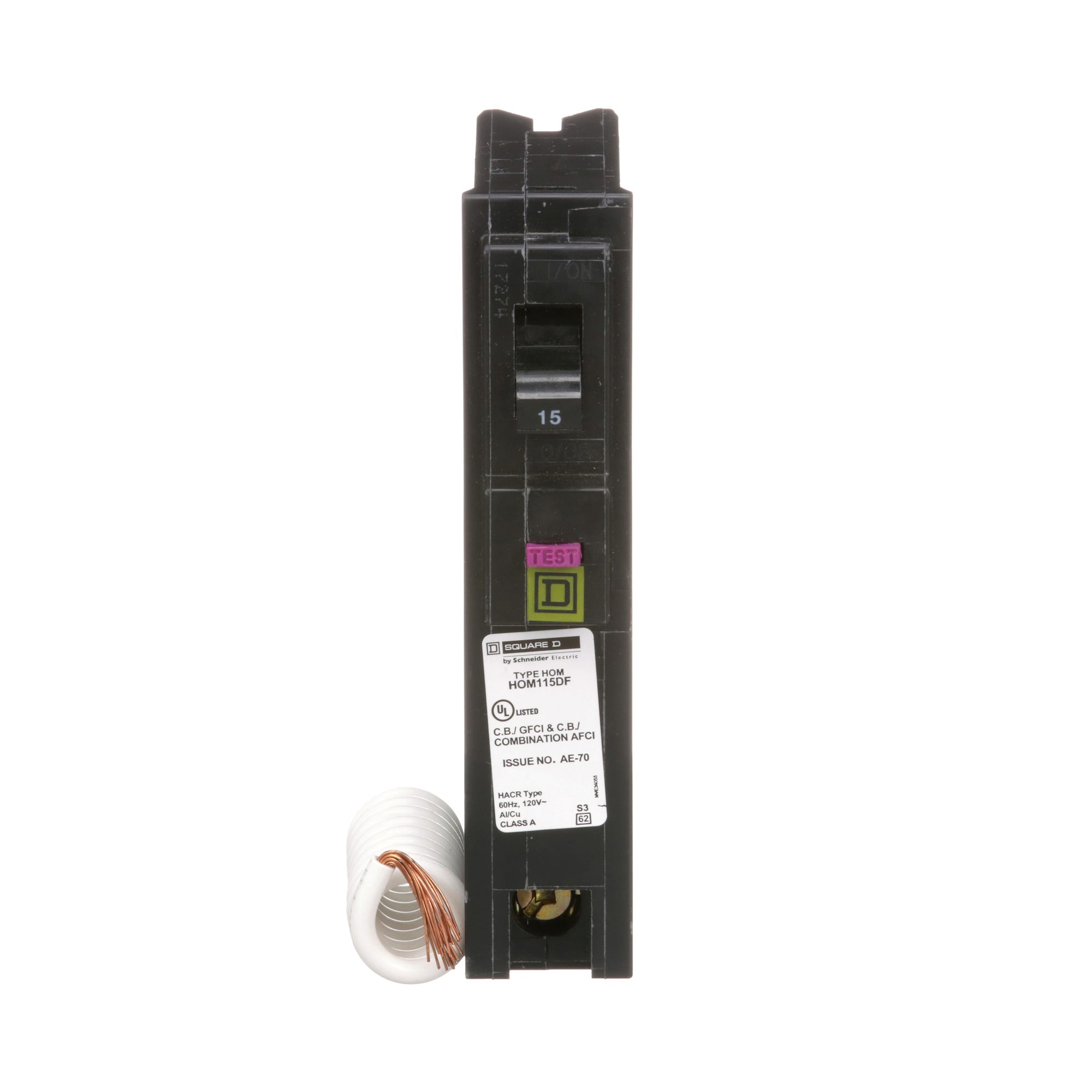

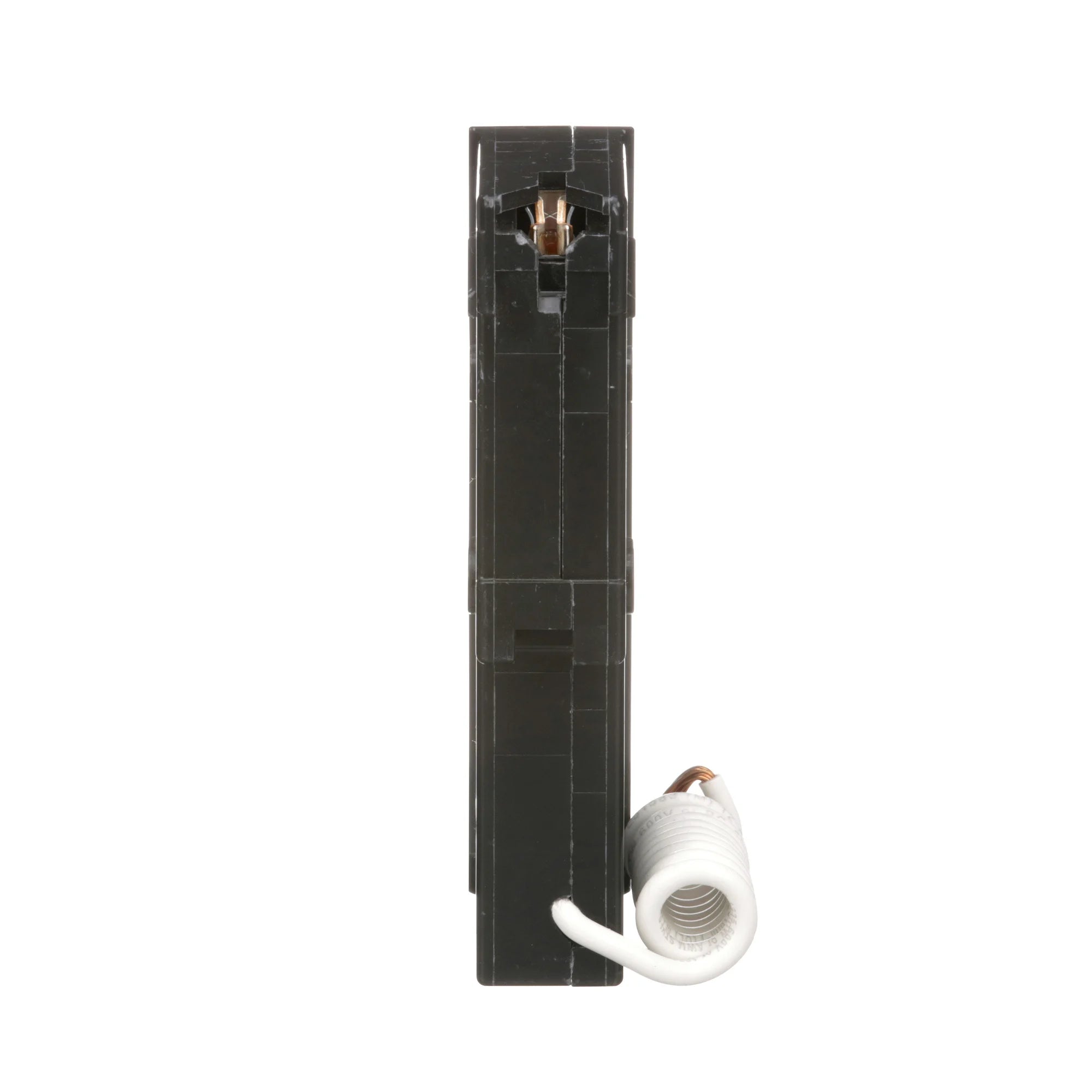

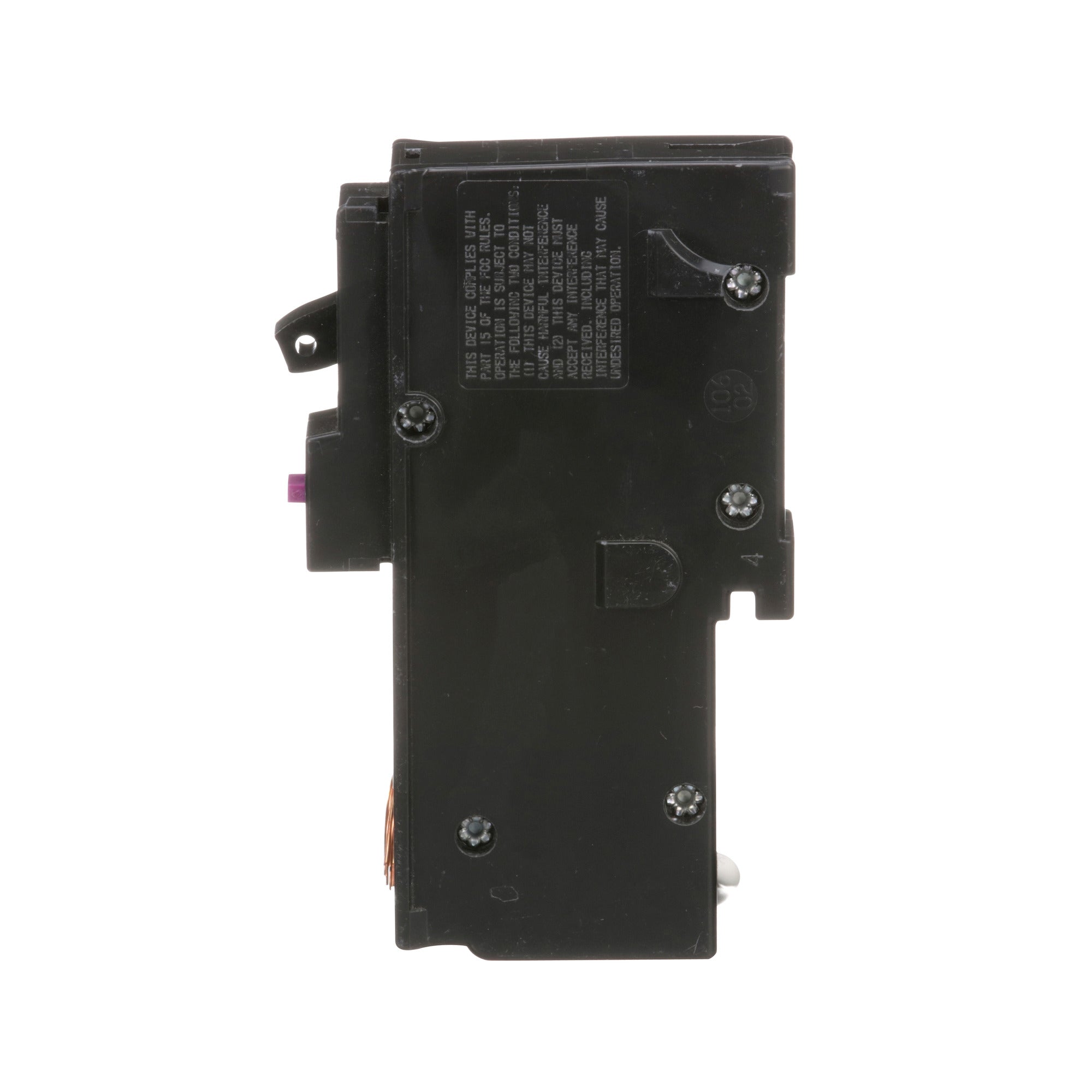

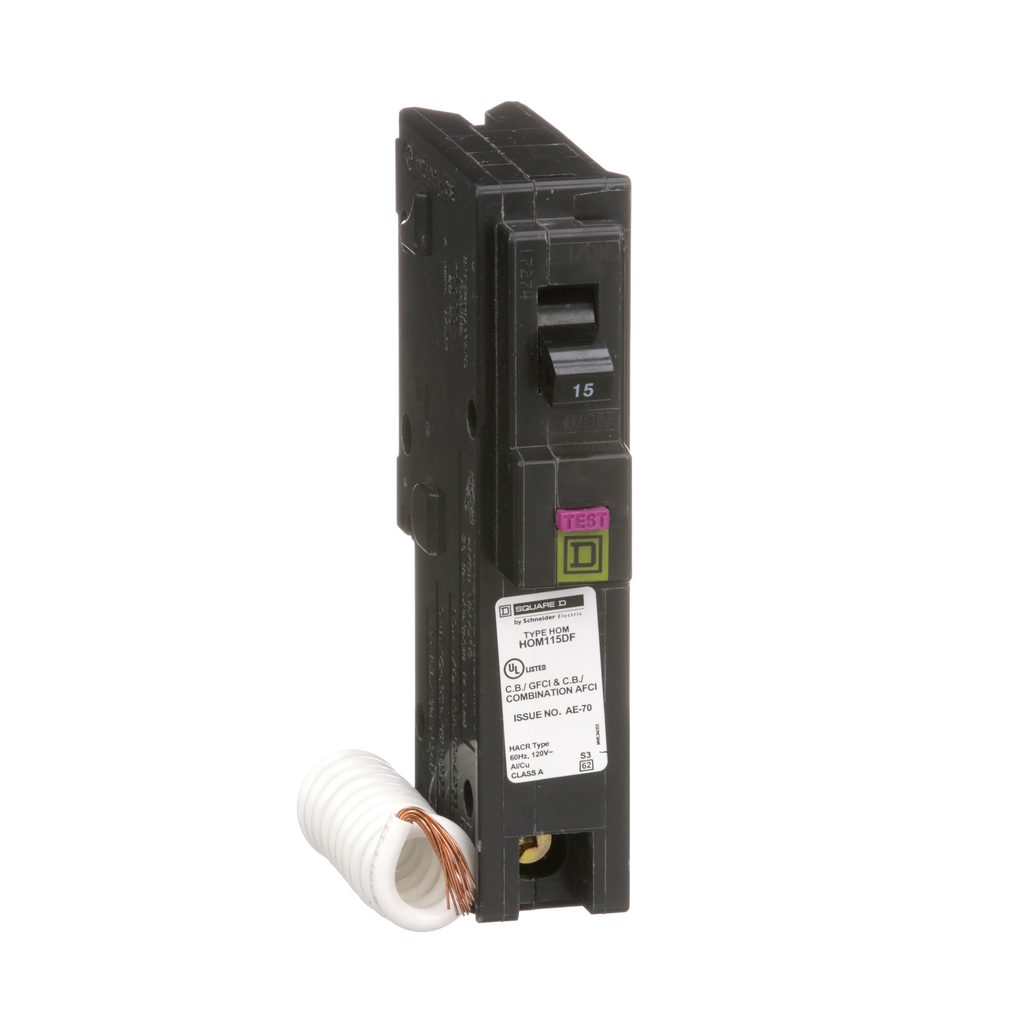

Square D HOM115DF Miniature Circuit Breaker 15 Amp 120 Volt

Product Description

The Square D HOM115DF is a one-pole, 15 amp, 120 volt plug-on dual function thermal magnetic miniature circuit breaker. It is designed for fast installation and reliable circuit protection, making it suitable for both residential and commercial applications. This circuit breaker is HACR rated, providing protection against overload and short circuits. With a breaking capacity of up to 10 kA, it further combines arc fault and ground fault protection into one unit. This innovative design complies with NEC standards and UL testing protocols.

• Compatible with Homeline load centers
• Accepts wire sizes from 14 AWG to 8 AWG
• UL Listed for reliability and safety

Product Highlights

Engineered for the fast installation of effective electrical protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM115DF
• Current Rating: 15 Amp
• Voltage Rating: 120 Volt
• Number of Poles: 1
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Wire Size: AWG 14 to AWG 8
• Product UPC: 785901741329
• Country of Origin: Mexico
• Warranty Length: Lifetime
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
