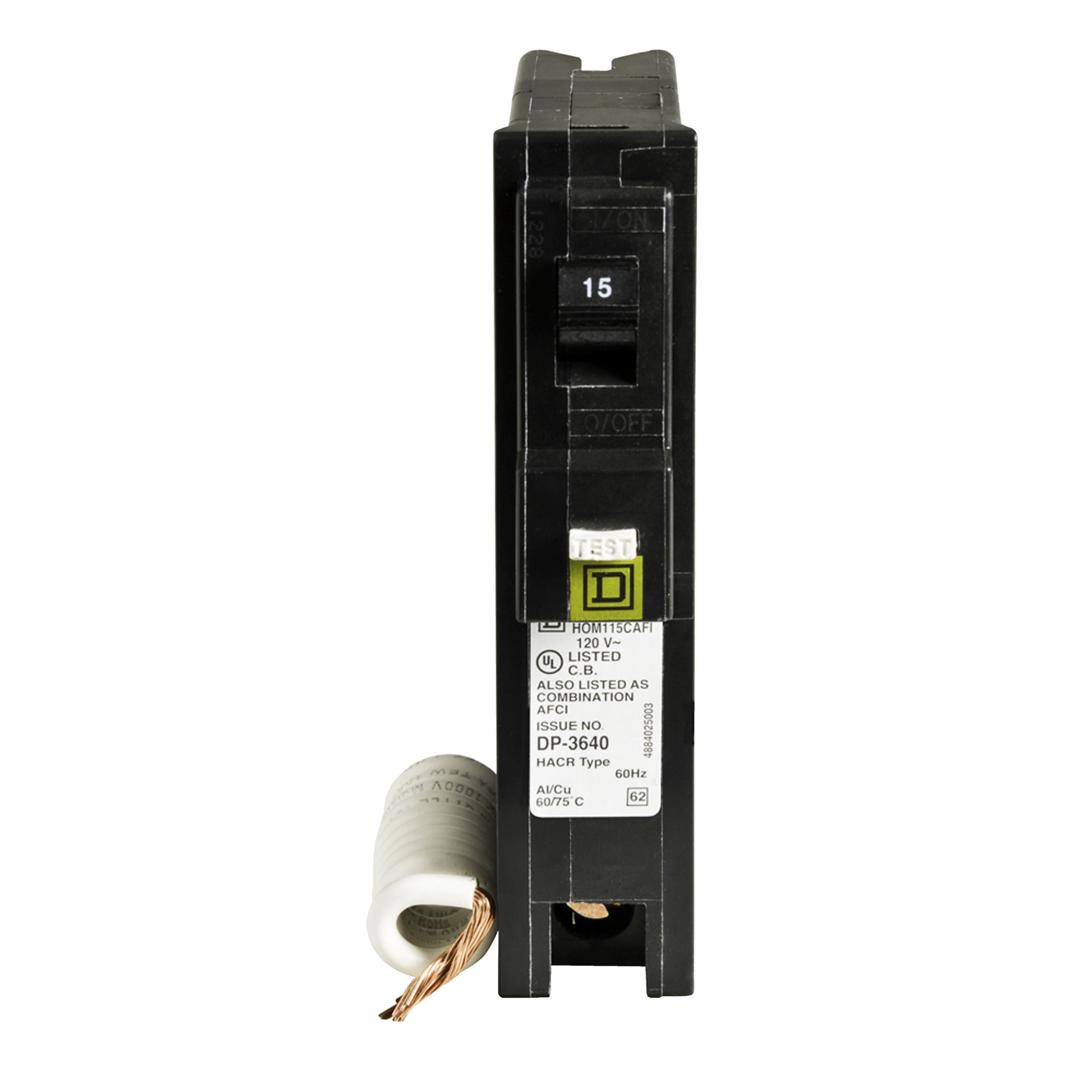

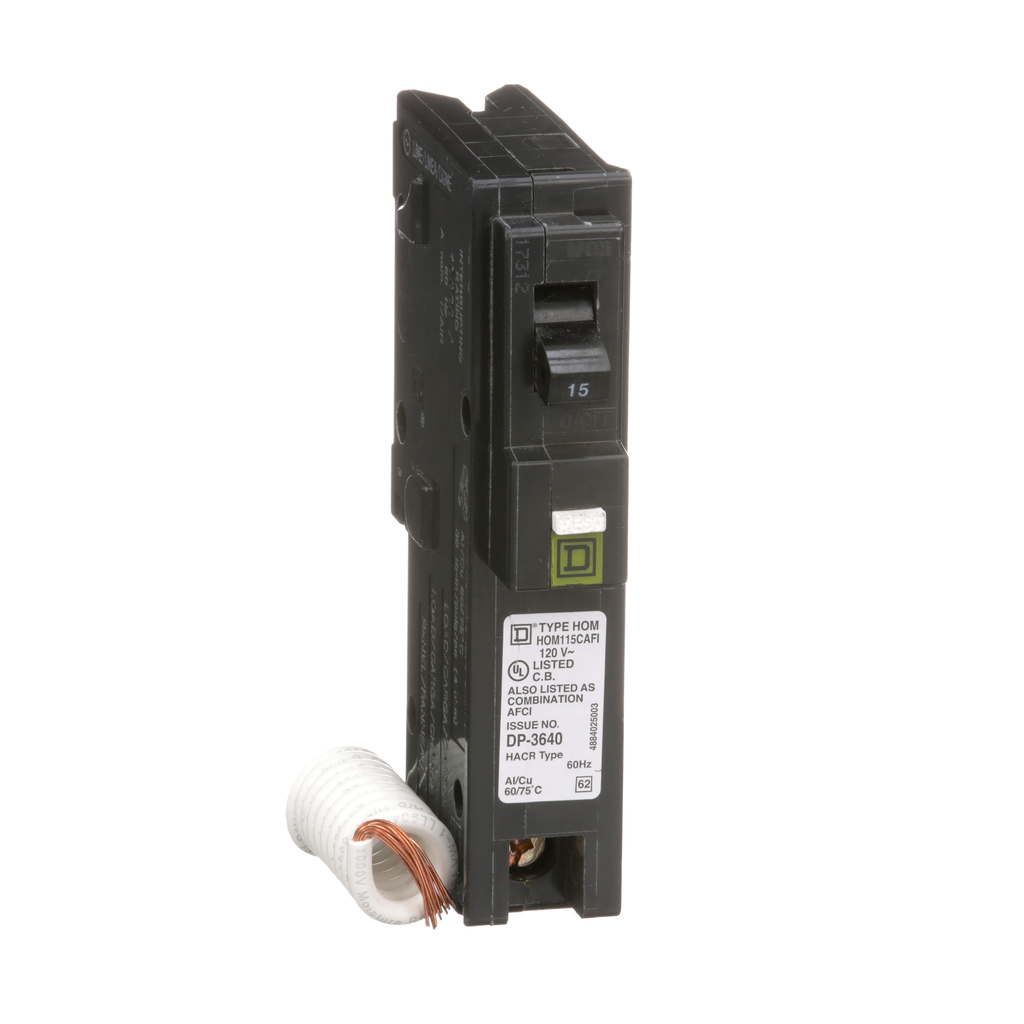

Square D HOM115CAFI Miniature Circuit Breaker 15 Amp 120 Volt

Product Description

Square D HOM115CAFI is a miniature circuit breaker rated for 15 amps at 120 volts. It is designed for quick installation into Homeline load centers, ensuring efficient circuit protection. This breaker is HACR rated and features a plug-in mounting type for easy setup. The HOM series breakers can handle up to 10 kA breaking capacity and include arc fault protection as per the NEC and UL1699 standards.

• 1 pole configuration
• Compact dimensions for easy fit in panels: 3.13 inches height, 1 inch width, 2.98 inches depth
• Compatible with wire sizes from 14 AWG to 8 AWG

Product Highlights

This circuit breaker is a reliable choice for overload and short circuit protection with a built-in pigtail neutral connection for secure installation.

Product Information

Standard Information

• Catalog Number: HOM115CAFI
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120 Volt
• Current: 15 Amp
• Number of Poles: 1 Pole
• Mounting Type: Plug-in
• Interrupt Rating: 10 kAIC
• Width: 1 inch
• Height: 3.13 inches
• Depth: 2.98 inches
• Wire Size Compatibility: 14-8 AWG copper or aluminum
