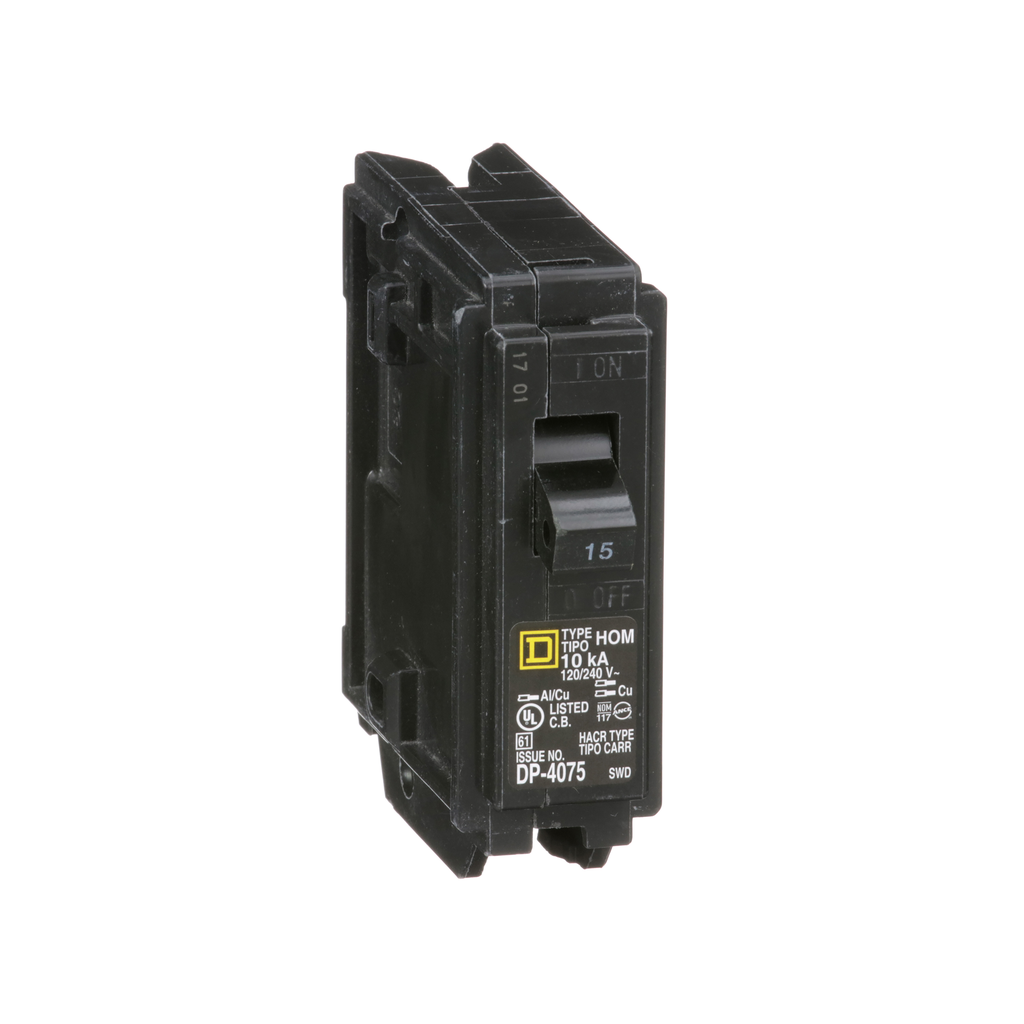

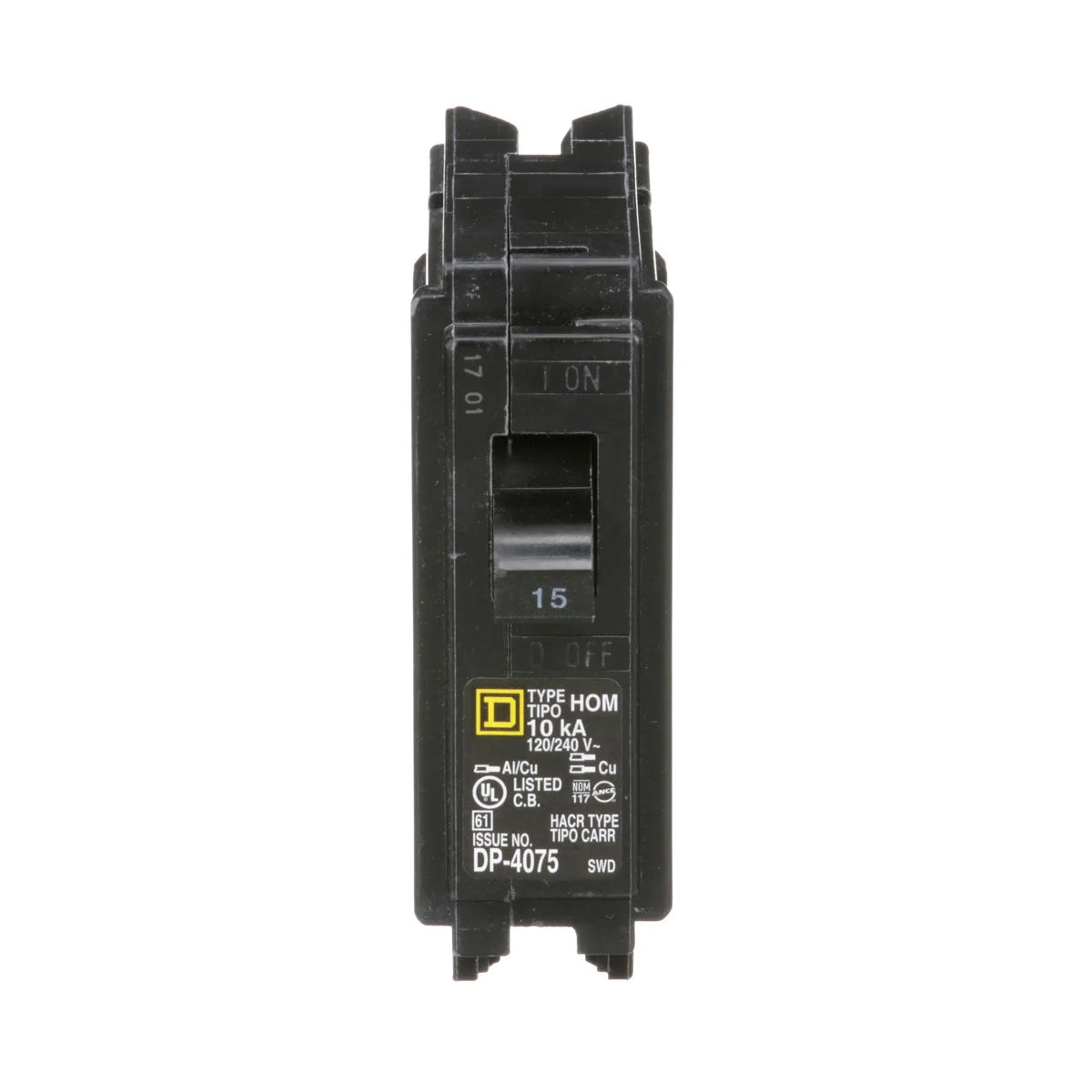

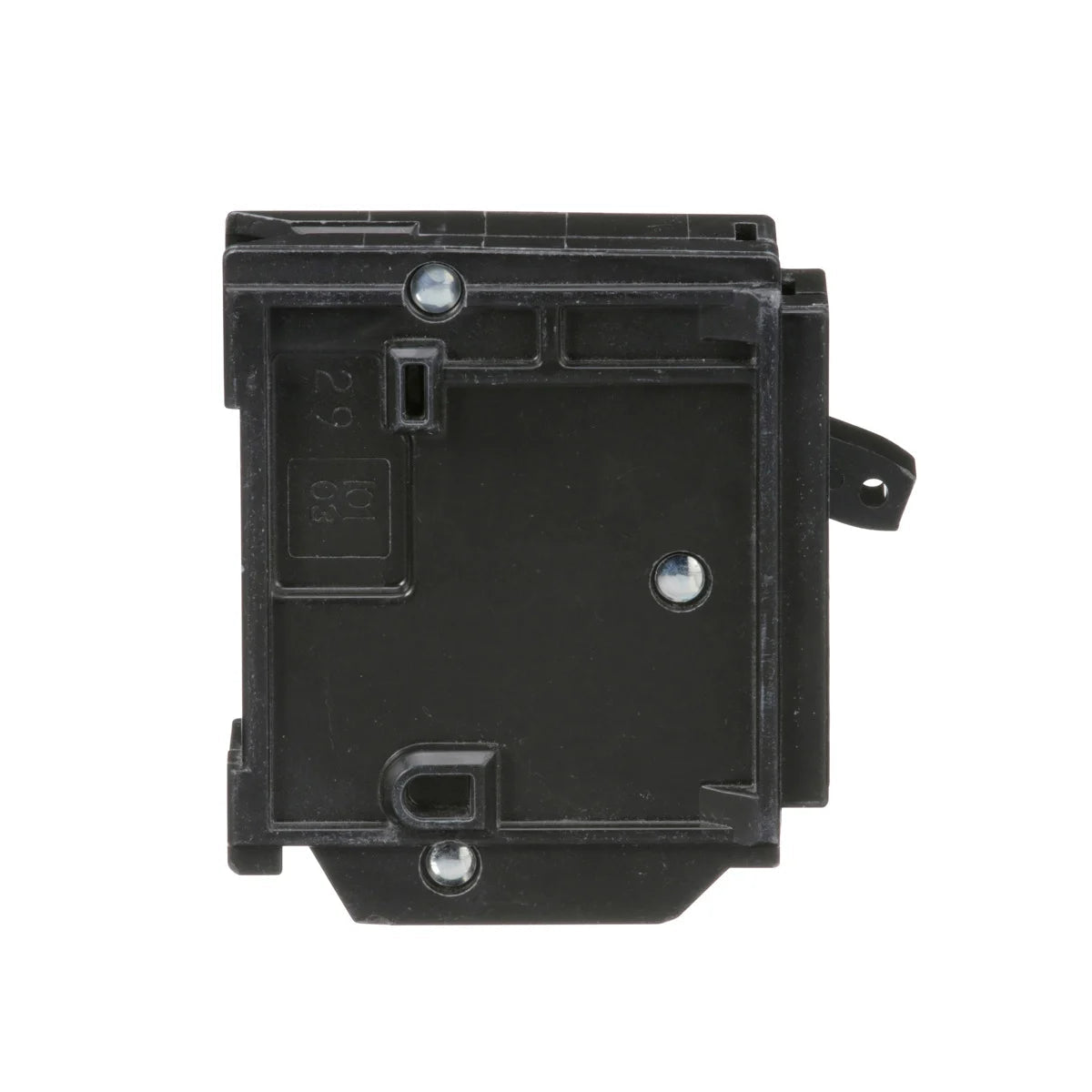

Square D HOM115 Miniature Circuit Breaker 15 Amp 120/240 Volt

Product Description

The Square D HOM115 is a 15 amp miniature circuit breaker designed for use in 120/240 volt systems. This breaker is engineered for fast installation and compatibility with Homeline load centers. The HOM115 provides effective circuit protection against overloads and short circuits, ensuring the safety of your electrical system.

• One pole configuration for quick plug-in installation
• Rated for 15 amps and 120/240 volts
• 10 kA interrupting capacity for reliable protection

Product Highlights

This circuit breaker features a clamp terminal that accommodates wire gauges from 14 AWG to 8 AWG, suitable for both copper and aluminum wiring. It is UL listed for safety and robustness.

Product Information

Standard Information

• Catalog Number: HOM115
• Manufacturer: Schneider Electric

Technical Specifications

• Amperage Rating: 15 Amp
• Voltage Rating: 120/240 Volt
• Interrupt Rating: 10 kA
• Dimensions: Height 3.13 inches, Width 1.0 inch, Depth 2.98 inches
• Wire Size Compatibility: 14 to 8 AWG (Copper / Aluminum)
• Type: Miniature Circuit Breaker
• Mounting Type: Plug-in
• Certifications: UL Listed
• Country of Origin: USA
• Warranty: Lifetime
