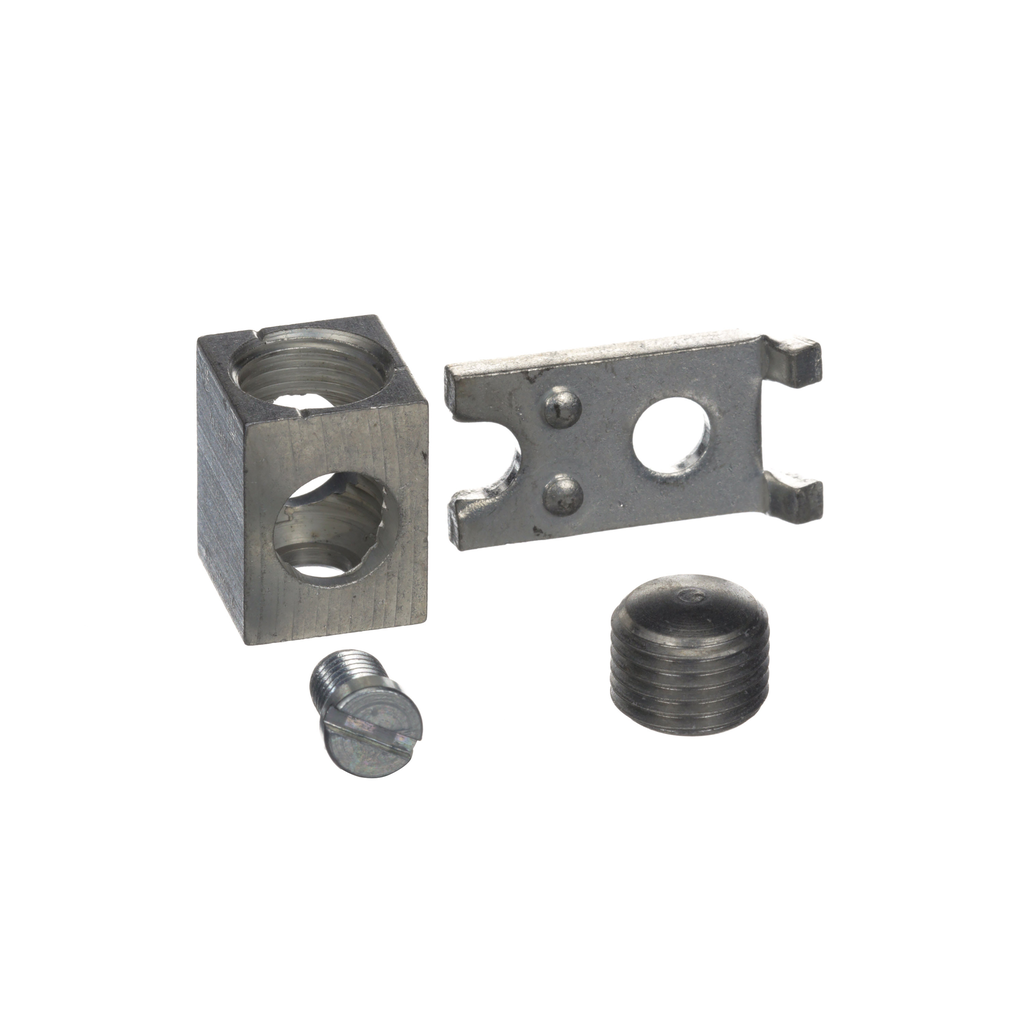

Square D HOM100AN 100 Amp Load Center Neutral Lug Kit

Product Description

The Square D HOM100AN is a 100 Amp neutral lug kit designed for use with Homeline load centers. This kit allows for adding a lug to the neutral bar in a load center, providing enhanced connectivity for wiring. It supports a range of wire sizes, accommodating both copper and aluminum types.

• Accepts wire sizes from 14 AWG to 1 AWG for copper and 12 AWG to 1 AWG for stranded aluminum.
• Compatible with Homeline load centers for residential and industrial applications.
• Rated for a maximum of 100 Amps.

Product Highlights

The HOM100AN is suitable for both indoor and outdoor applications, including HVAC and pool installations. It is a reliable solution for load center enhancements.

Product Information

Standard Information

• Catalog Number: HOM100AN
• Brand: Square D

Technical Specifications

• Amperage: 100 Amp
• Wire Compatibility: 14 AWG to 1 AWG copper; 12 AWG to 1 AWG stranded aluminum
• Warranty Length: 18 months
• Country of Origin: USA
