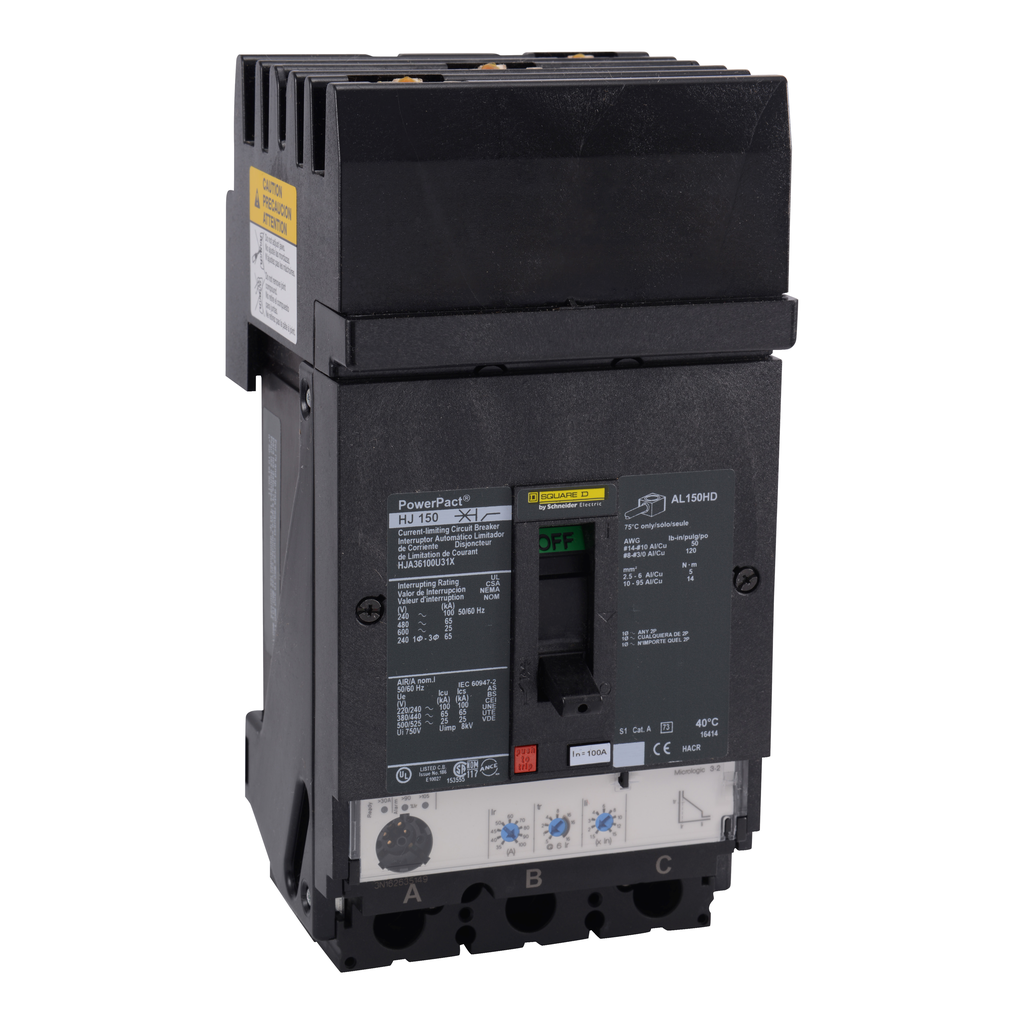

Square D HJA36100U31X Circuit Breaker, PowerPact H, 100 Amp, 3 Pole, 600V

Product Description

Square D offers the HJA36100U31X Circuit Breaker. This device protects electrical systems from overloads and short circuits. It features Micrologic Standard with a 3.2 trip unit, designed for efficient performance. The circuit breaker has a breaking capacity of twenty-five kiloamperes at six hundred volts alternating current. Dual-break rotating contacts reduce peak current during faults.

• Three poles with I-Line construction for easy installation
• Integral push-to-trip button for manual operation
• Complies with UL, CSA, NOM, IEC standards

Product Highlights

The PowerPacT H circuit breaker is reliable for protecting industrial and commercial electrical systems.

Product Information

Standard Information

• Catalog Number: HJA36100U31X
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Voltage: 600 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Continuous Current Rating: 80% with ABC phase
• Dimensions: Width 4.5 Inch, Depth 3.39 Inches, Height 16 mm
• Weight: 2.2 kg
• Trip Type: Electronic Standard Micrologic 3.2 LI
