Product Description

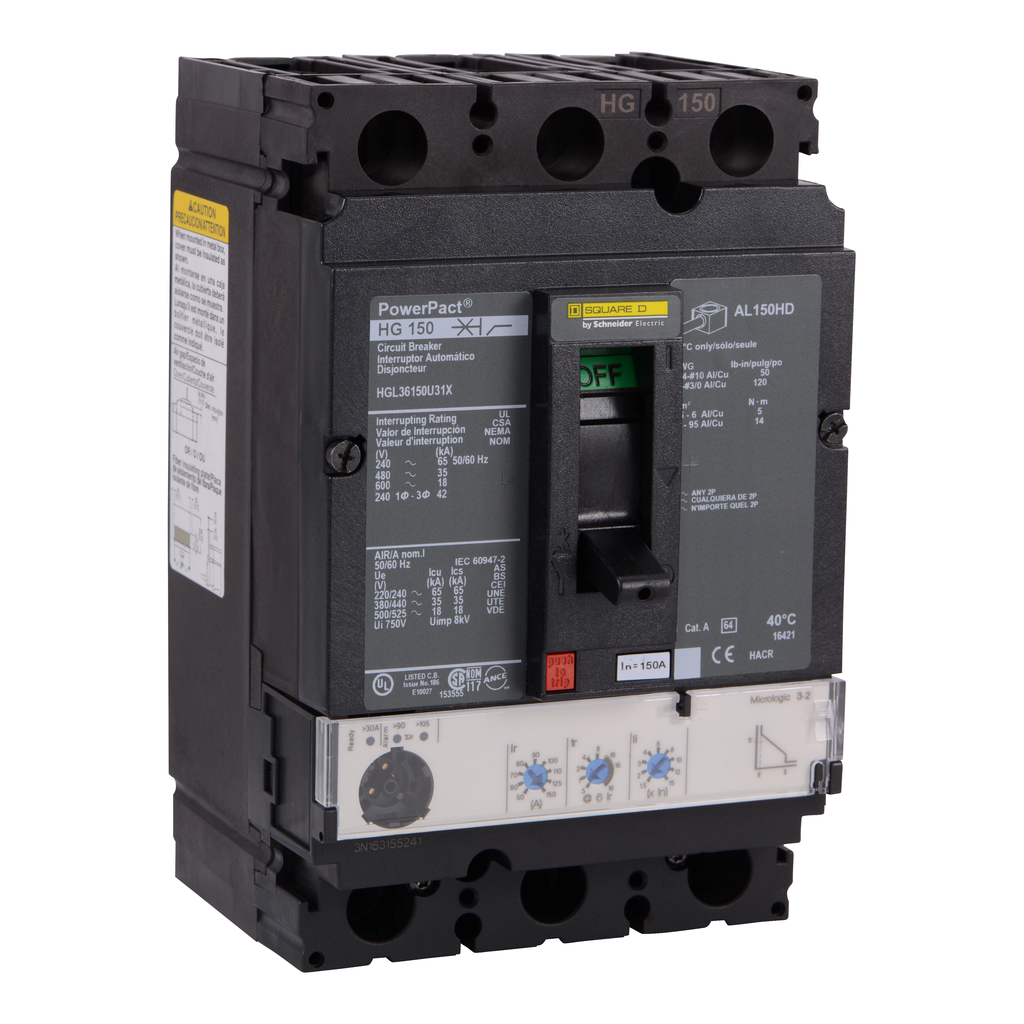

Square D HGL36150U31X is a circuit breaker designed to protect electrical systems from overloads and short circuits. This model features Micrologic Standard trip protection with a three point two trip unit and has a breaking capacity of eighteen kiloamps at six hundred volts alternating current. The dual-break rotating contacts help reduce peak current during fault conditions. It is equipped with a manual push-to-trip button for easy operation. The circuit breaker complies with multiple standards including UL, CSA, and IEC.
- Breaking capacity of 18kA at 600VAC
- Continuous current rating of 150A
- Available in 2 and 3-pole configurations
Product Highlights
This circuit breaker is ideal for use in power distribution systems, providing reliable protection for connected equipment.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Square-D / Schneider
Technical Specifications
-
Catalog Number: HGL36150U31X
-
Voltage: 600 Volt
-
Amperage: 150 Amp
-
Width: 4.1 inches
-
Height: 6.4 inches
-
Depth: 3.4 inches
-
Weight: 4.85 pounds
-
Number of Poles: 3 Pole
-
Certifications: UL, CSA, NOM
-
Country of Origin: USA
