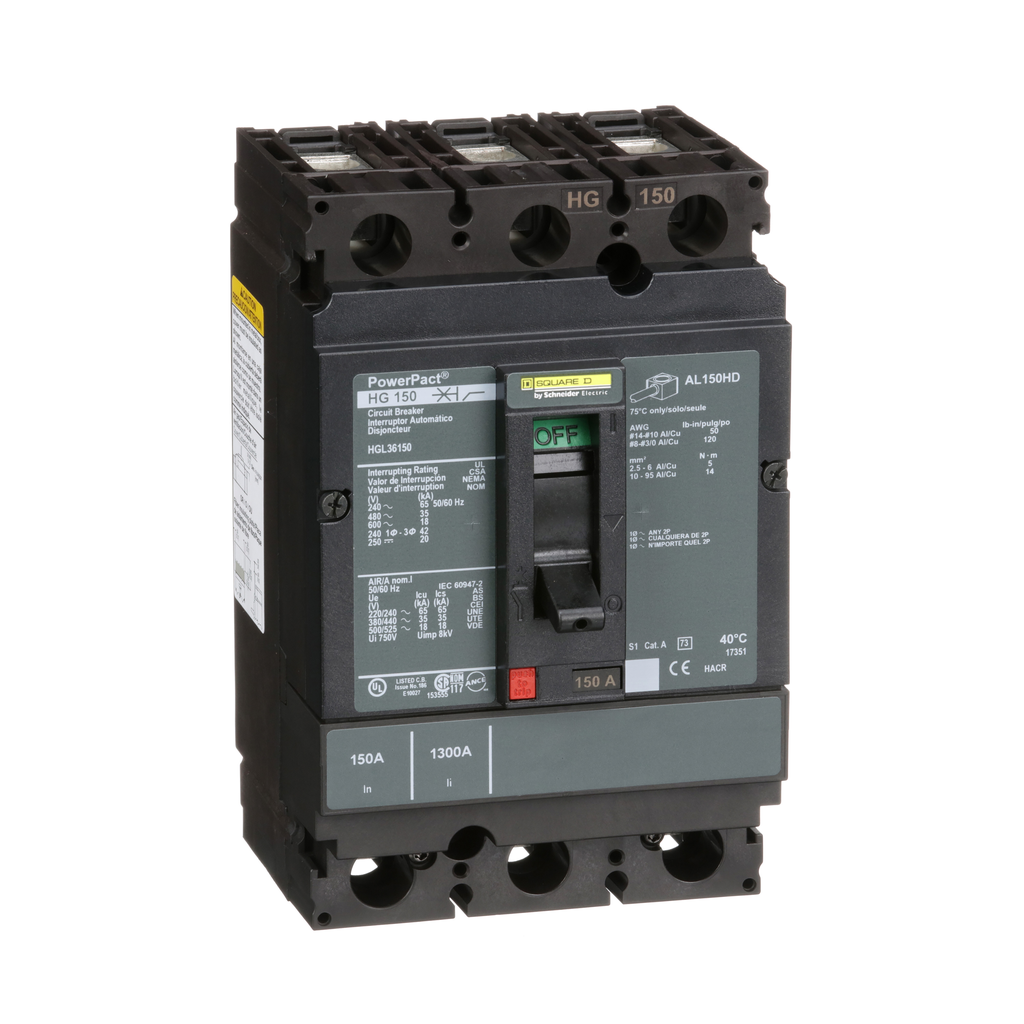

Square D HGL36150 600 Volt 150 Amp Molded Case Circuit Breaker

Product Description

Square D HGL36150 is a molded case circuit breaker designed for electrical systems. This circuit breaker provides overload and short circuit protection. The unit has thermal magnetic protection with a breaking capacity of eighteen kiloamperes at six hundred volts AC. It features dual-break rotating contacts, minimizing peak current during faults. The breaker includes a push-to-trip button for manual operation.

• Rated for 150 amps with three poles
• Compliant with UL, CSA, and IEC standards
• Applications include overload and short circuit protection

Product Highlights

The PowerPacT H-frame circuit breaker offers reliable performance and is ideal for various electrical installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Product Type: Circuit breaker
• Amperage: 150 Amp
• Voltage: 600 Volt
• Breaking Capacity: 18 kA at 600 VAC
• Frame: H-FRAME
• Number of Poles: 3 Pole
• Control Type: Toggle
• Trip Type: Thermal-Magnetic
