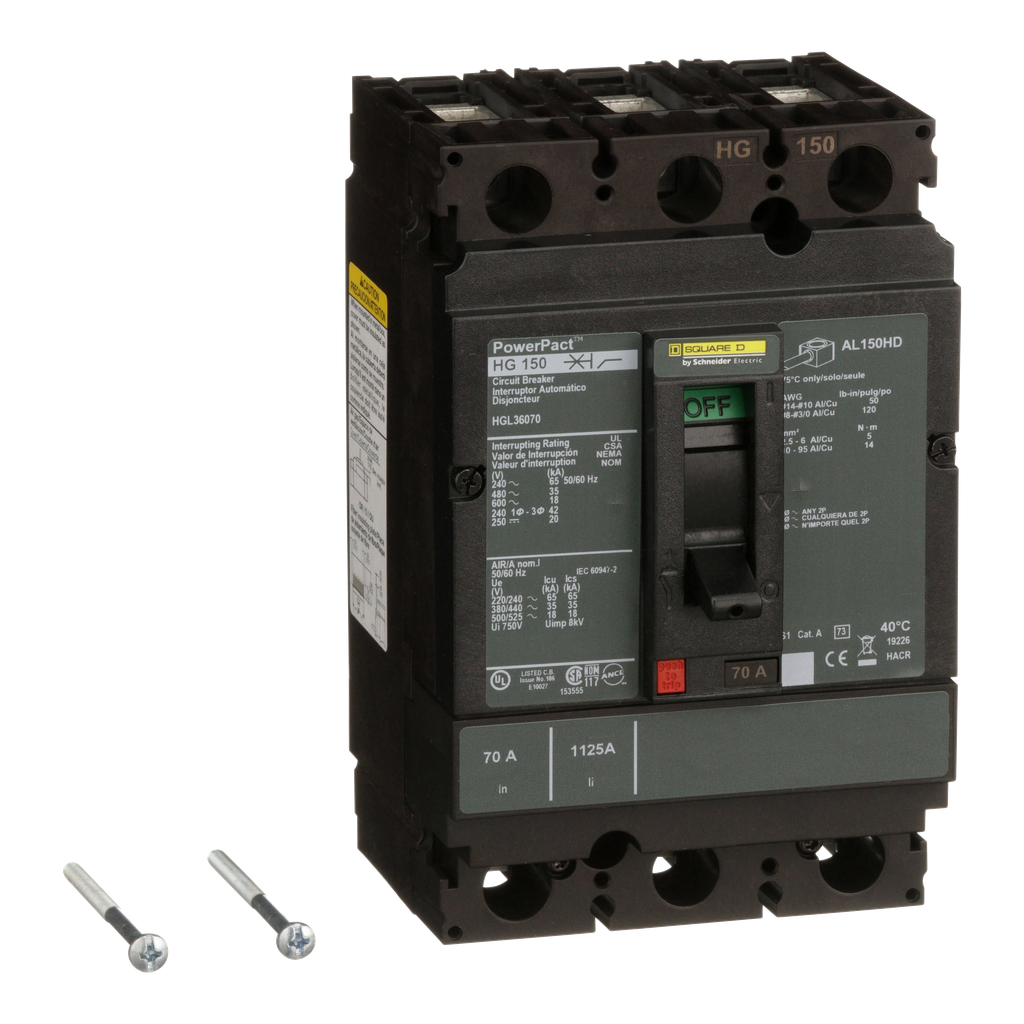

Square D HGL36070 600 Volt 70 Amp Molded Case Circuit Breaker

Product Description

The Square D HGL36070 is a molded case circuit breaker designed to provide protection for electrical systems. It features a thermal magnetic trip mechanism, which is effective in preventing overload and short circuit damage. The circuit breaker operates at 600 volts with a capacity of 70 amps.

• Breaking capacity of 18kA at 600VAC
• Complies with UL, CSA, and IEC standards
• Features dual-break rotating contacts to reduce peak current during faults

Product Highlights

This circuit breaker is suitable for commercial and industrial applications, ensuring safety and compliance with electrical codes.

Product Information

Standard Information

• Brand: Square D
• Product Type: Circuit breaker

Technical Specifications

• Voltage: 250 Volt
• Amperage: 70 Amp
• Frame: H-Frame
• Number of Poles: 3 Pole
• Interrupt Rating: 18, 20, 35, 65 kAIC
• Operating Temperature: -13F to 158F (-25C to +70C)
• Mounting Type: Unit Mount
• Net Weight: 2.2 kg
