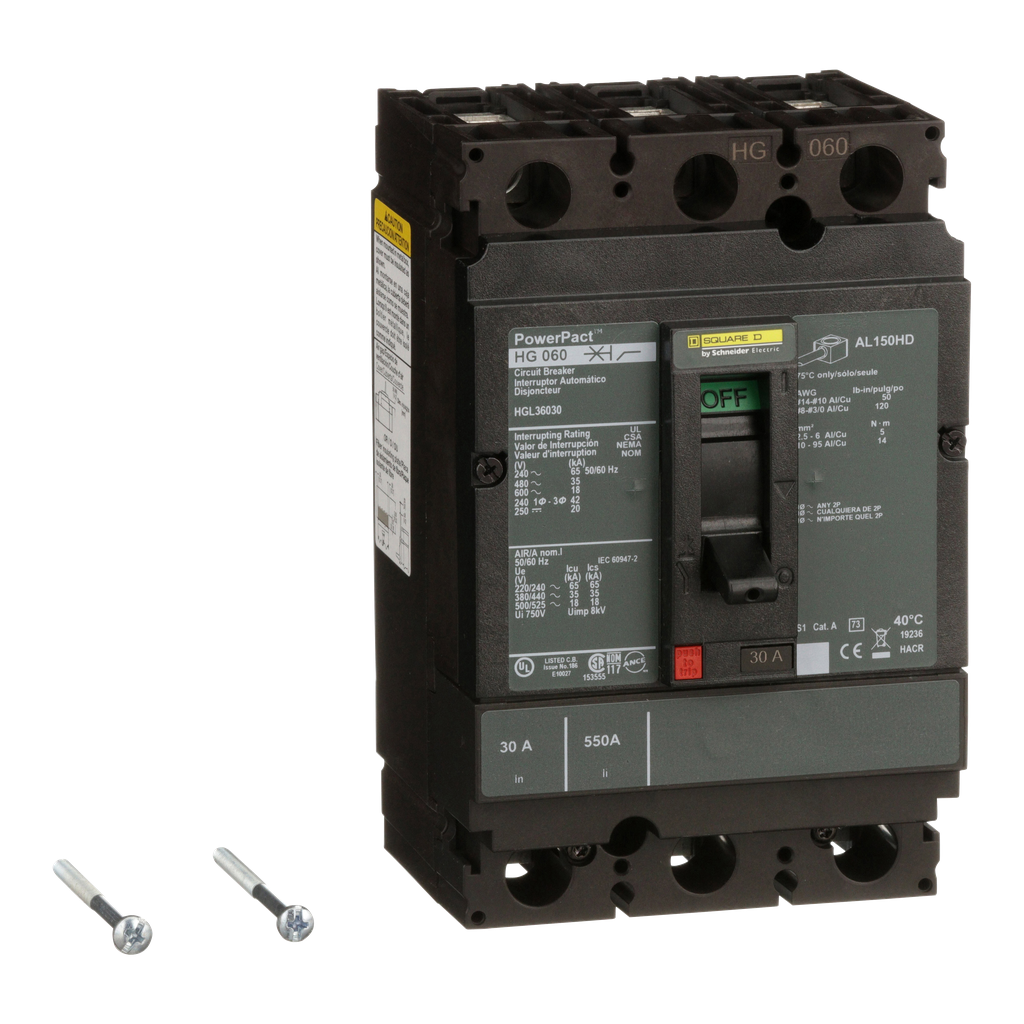

Square D HGL36030 3-Pole 30 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Square D HGL36030 is a 3-pole, 30 Amp, thermal magnetic molded case circuit breaker. It is designed to protect electrical systems from overloads and short circuits, with a breaking capacity of eighteen kA at six hundred VAC. This circuit breaker features dual-break rotating contacts that help minimize peak current during short circuit conditions.

• Thermal magnetic trip protection
• Breaking capacity of eighteen kA
• Integral push-to-trip button

Product Highlights

This breaker complies with UL, CSA, NOM, IEC standards, and is CE marked, ensuring reliable performance in demanding electrical environments.

Product Information

Standard Information

• Brand: Square D
• MPN: HGL36030

Technical Specifications

• Type: Circuit breaker
• Voltage: 250 Volt
• Amperage: 30 Amp
• Number of Poles: 3 Pole
• Frame: H-FRAME
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 18 kAIC
• Depth: 86 mm
• Width: 104 mm
• Height: 163 mm
• Net Weight: 2.2 kg
• Warranty Length: 18 months
• Operating Temperature: -13F to 158F
• Country of Origin: Mexico
