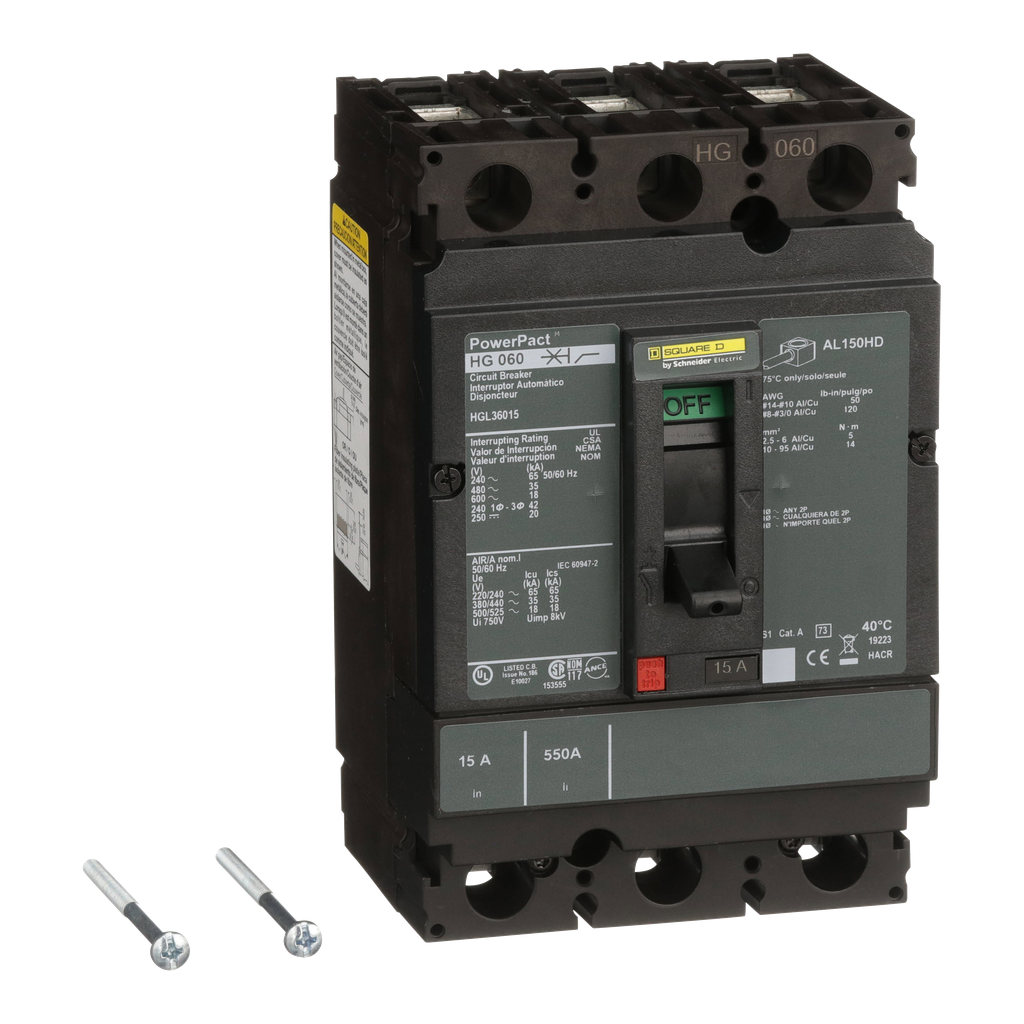

Square D HGL36015 3-Pole 15 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Square D HGL36015 is a 3-pole, 15 amp thermal magnetic molded case circuit breaker designed to protect electrical systems effectively. With a breaking capacity of 18kA at 600VAC, it provides reliable protection against overloads and short circuits. This circuit breaker features dual-break rotating contacts, which help reduce peak current during a short circuit fault. The manual push-to-trip button allows for convenient operation. Designed for use in various applications, this breaker supports both unit mount and I-Line constructions. The lugs on both the line and load sides ensure secure connections.

• 3-pole configuration for increased circuit protection
• Thermal magnetic trip mechanism
• Breaking capacity of 18kA at 600VAC

Product Highlights

The HGL36015 is part of the PowerPacT H-Frame series, known for its robustness.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Catalog Number: HGL36015
• Amperage: 15 Amp
• Voltage: 250 Volt
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 18, 20, 35, 65 kAIC
• Depth: 86 mm
• Width: 104 mm
• Height: 163 mm
• Net Weight: 2.2 kg
• Country of Origin: Mexico
