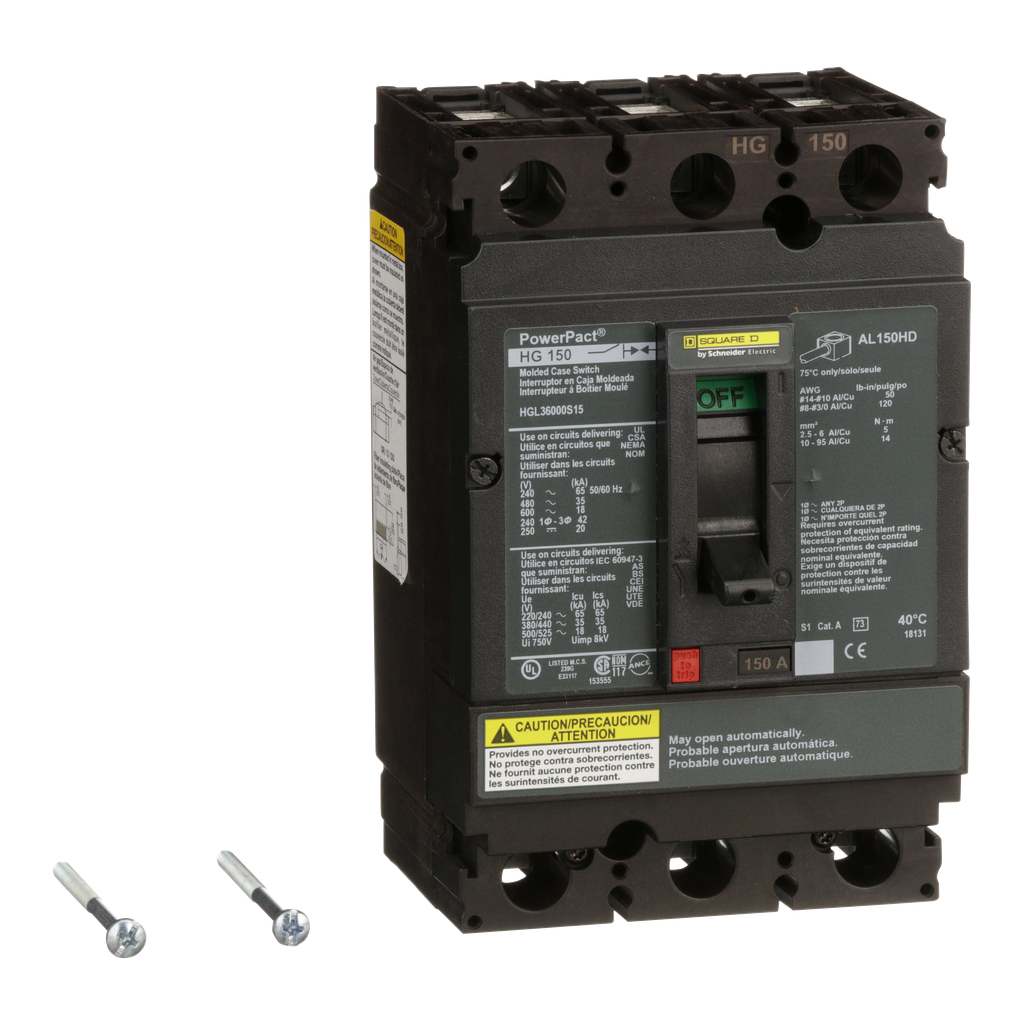

Square D HGL36000S15 Automatic Molded Case Switch 600 Volt 150 Amp

Product Description

Square D HGL36000S15 is a 600 Volt, 150 Amp Automatic Molded Case Switch. This switch acts as a disconnect device. It is suited for opening or closing a circuit during normal operation. The design is similar to the H-Frame circuit breaker. It shares accessories and connection possibilities with that version. The factory set trip point is non-adjustable and protects the molded case switch. It is capable of making and breaking its rated current. For overloads or short circuits, it requires upstream protection. The PowerPacT H-Frame switches are offered in various mounting styles such as unit mount and plug-in. This particular model is a unit mount type with lugs available on both sides. The switch has a short circuit withstand current rating of 18kA at 600VAC. Compliant with UL and CSA standards.

• 600 Volt and 150 Amp rating
• Automatic reset functionality
• Compliant with international safety standards

Product Highlights

This switch is ideal for use in power distribution systems. It is beneficial for circuit protection and disconnection needs.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Voltage: 250 Volt
• Amperage: 150 Amp
• Mounting Type: Unit Mount
• Short Circuit Rating: 18kA at 600VAC
• Width: 2.12 inches
• Height: 6.4 inches
• Depth: 4.36 inches
• Country of Origin: Mexico
