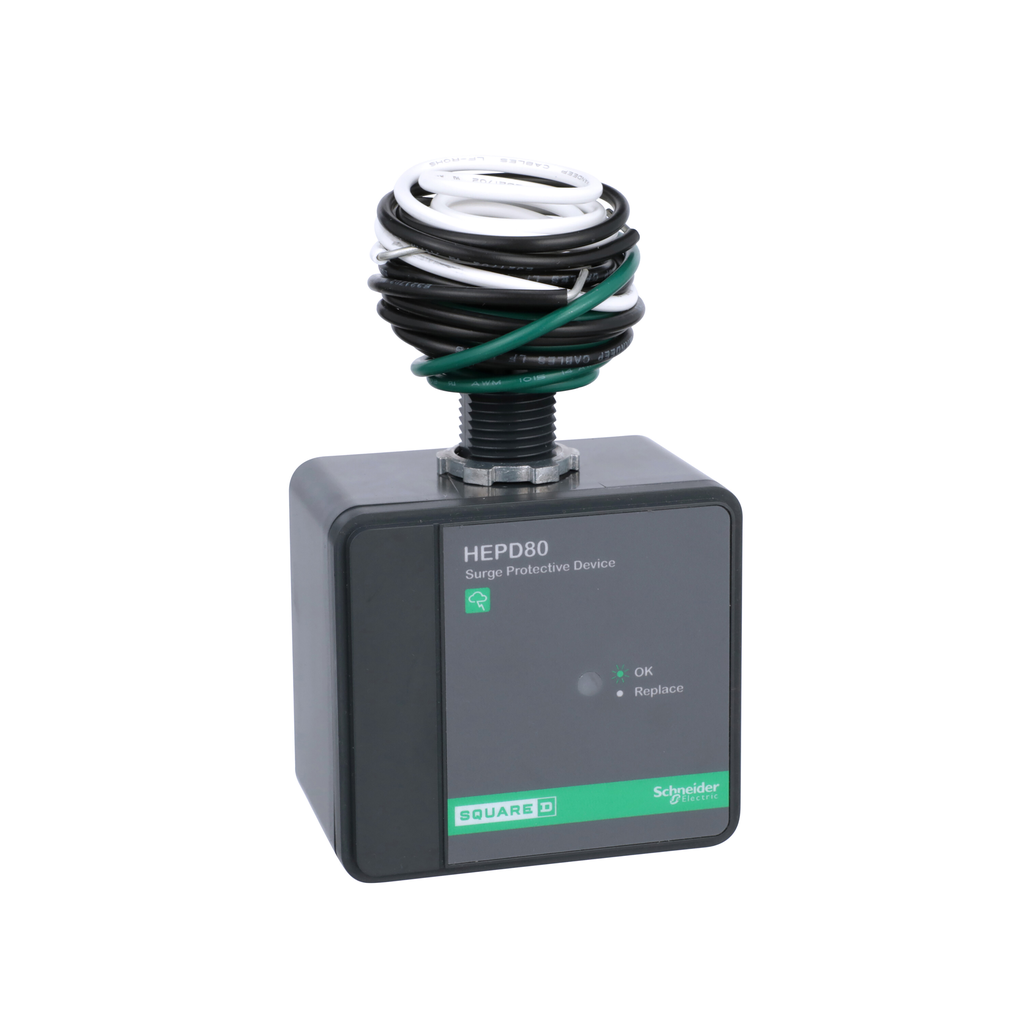

Square D HEPD80 Surge Protection Device, HEPD, 80kA, 120/240V, 1-Phase, 3-Wire, SPD Type 1

Product Description

The Square D HEPD80 is a surge protection device designed to protect electrical equipment from voltage spikes. This model provides up to eighty thousand amps of surge capacity and operates at a voltage of one hundred twenty to two hundred forty volts for single-phase systems. It is suitable for three-wire configurations, making it a versatile solution for various electrical setups.

• Provides protection for sensitive electronics and appliances.
• Easy installation with plug-on neutral connectivity.
• Includes a five-year warranty for connected equipment.

Product Highlights

The HEPD80 is ideal for safeguarding home electronics and systems against transient voltage surges. It connects directly to the load center, facilitating quick installation and effective operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HEPD80
• Voltage Rating: 120/240 Volt
• Surge Current Capacity: 80 kA
• Depth: 2.1 inches
• Width: 3.72 inches
• Height: 3.23 inches
• Number of Phases: 1 Phase
• Warranty Length: 18 months
• Country of Origin: Mexico
• Enclosure Material: Non-metallic
