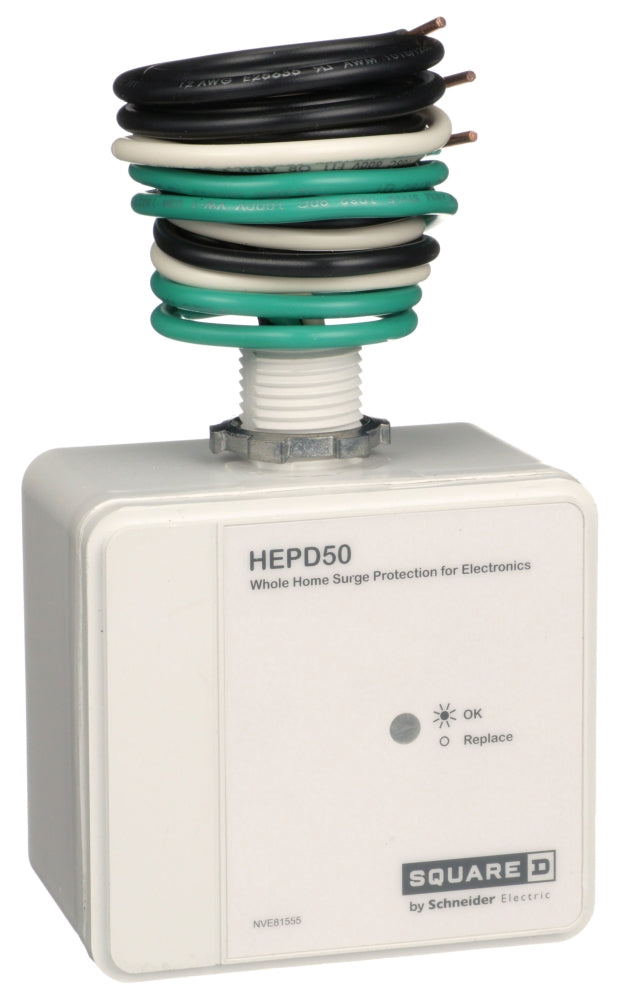

Square D HEPD50 Spd T2 Hepd 50Ka 120/240V1P3W

Product Description

The Square D HEPD50 Spd T2 is a surge protection device designed for both indoor and outdoor use. With an MPN of HEPD50, it effectively safeguards electronic equipment from voltage spikes. This model is suitable for residential applications and has a frequency rating of fifty or sixty Hertz.

• Compact Size: Measures three point seventy-two inches in width, two point one inches in depth, and three point twenty-three inches in height.
• Connection: Utilizes twelve AWG solid wire for efficient connectivity.
• Approval: Certified for safety by UL (Canada and US), UL 1449, and CSA C22.2/C233.1.

Product Highlights

This surge protector is ideal for protecting various electronic systems from disruptions caused by surges and spikes in electrical lines.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Type: Compact

Technical Specifications

• UPC: 78590100662
• Size: 3.72 inches width x 2.1 inches depth x 3.23 inches height
• Voltage Rating: 120/240 Volt AC
• Connection Type: 12 AWG Solid Wire
• Operating Temperature: -31 to 149 degrees F
• Enclosure: NEMA 4X
• Application: Indoor, Outdoor, Residential
• Modes of Protection: L-G, L-L, L-N, N-G
• Surge Current per Phase: 50 Kiloamp
• Input Current: 10 Kiloamp (Line)
• Short Circuit Current Rating: 22 Kiloamp
• Catalog Number: HEPD50
