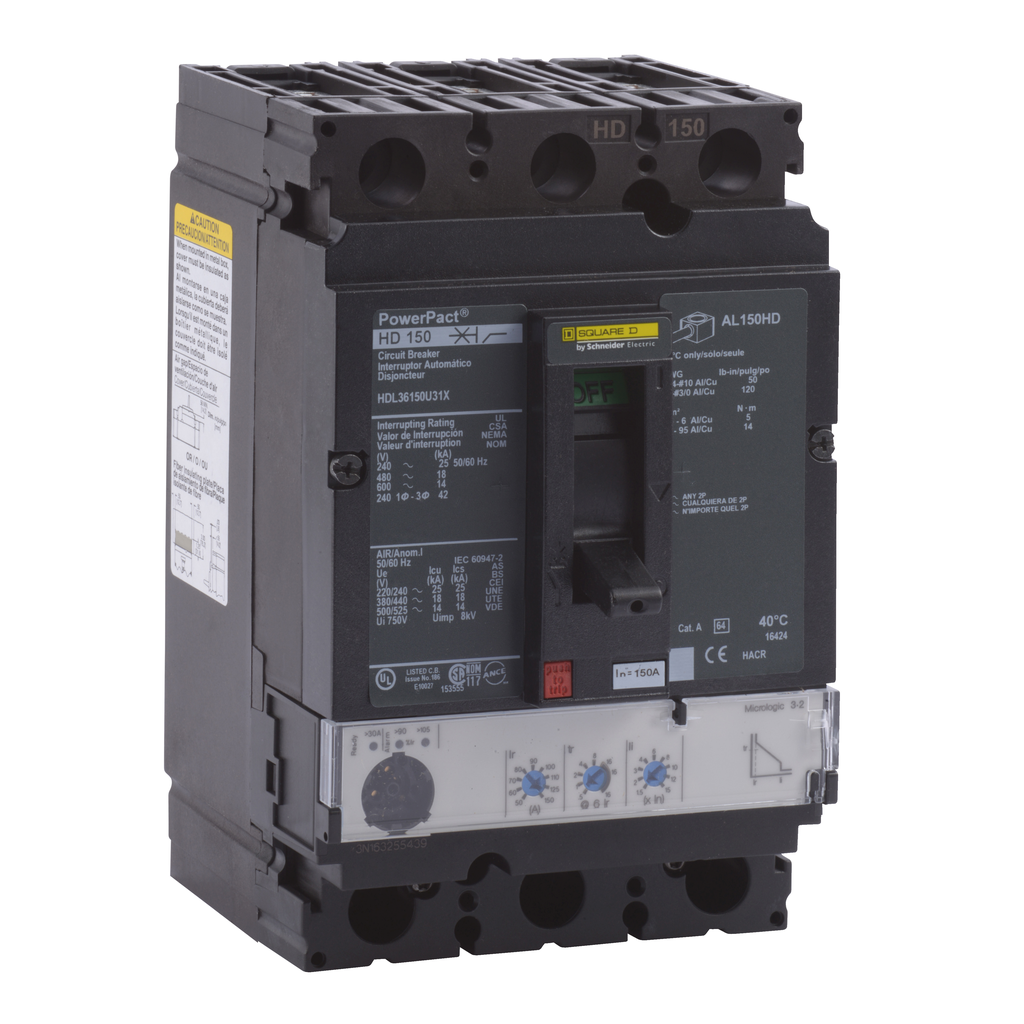

Square D HDL36150U31X Circuit Breaker P PowerPacT H 150A 3 Pole Replacement MPN

Product Description

Square D HDL36150U31X is a circuit breaker designed to protect electrical systems from overloads and short circuits. This model features Micrologic Standard with a 3.2 trip unit and has a breaking capacity of fourteen kiloamperes at six hundred volts AC. The dual-break rotating contacts allow for reduced peak current during faults. It includes a push-to-trip button for manual operation and has lugs on both line and load sides. The product meets UL, CSA, and IEC standards and is CE marked.

• 150 Amp continuous current rating
• Three poles with unit mount construction
• Breaking capacity of 14kA at 600VAC

Product Highlights

Reliable protection for electrical systems with a long-lasting design.

Product Information

Standard Information

• Brand: Square D
• MPN: HDL36150U31X

Technical Specifications

• Type: Circuit breaker
• Color: Black
• Depth: 86 mm
• Width: 104 mm
• Height: 163 mm
• Voltage: 600 Volt
• Amperage: 150 Amp
• Number of Poles: 3 Pole
