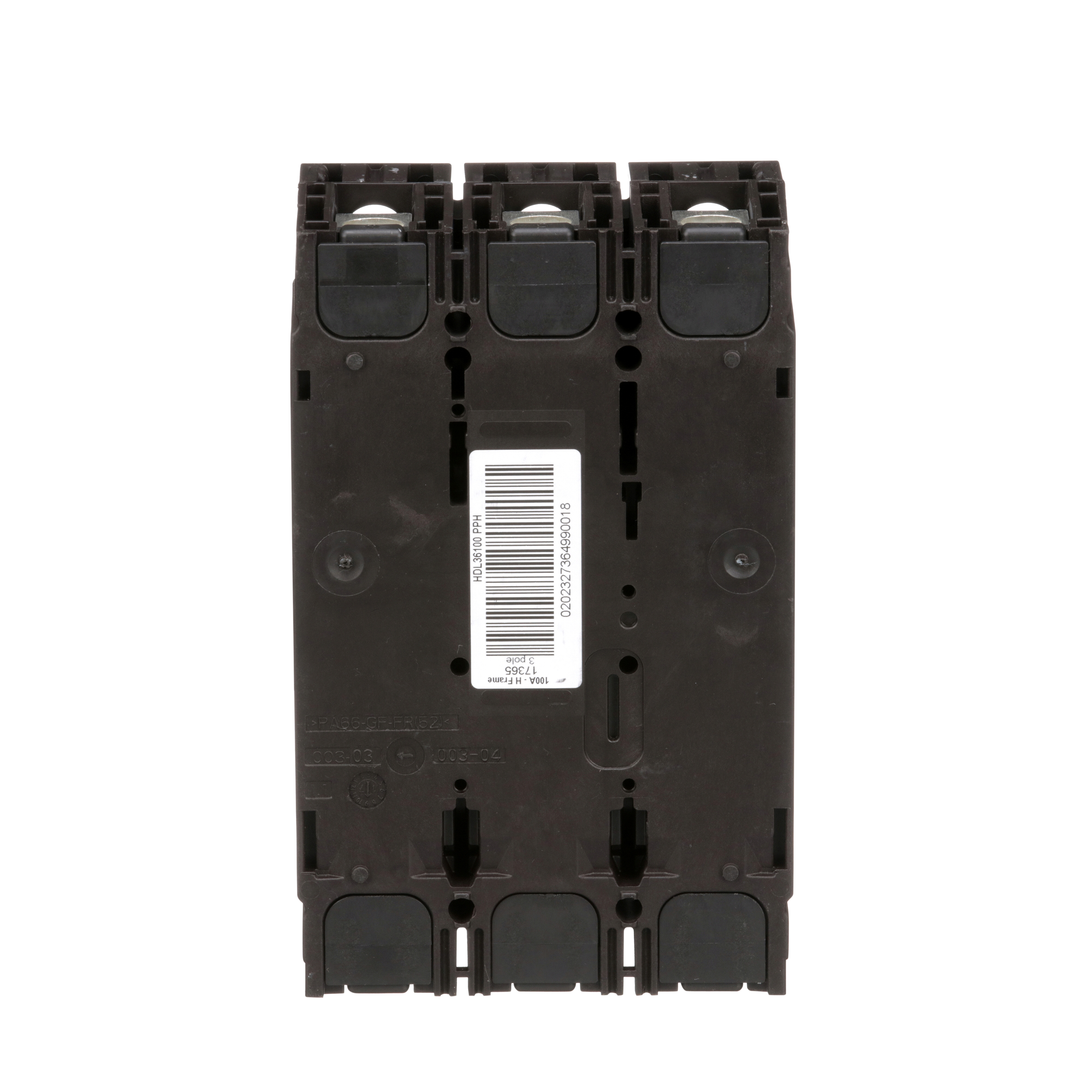

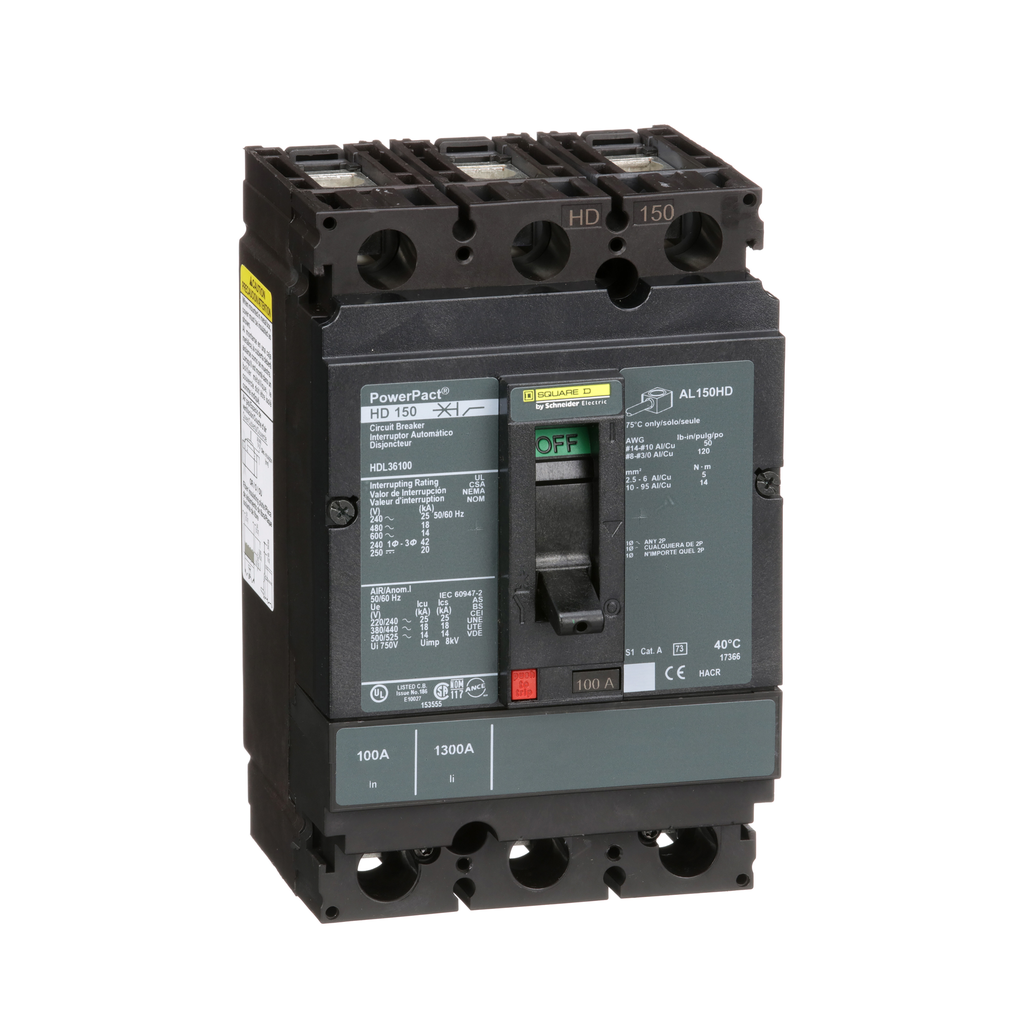

Square D HDL36100 Square D 600 Volt 100 Amp Molded Case Circuit Breaker

Product Description

The Square D HDL36100 is a molded case circuit breaker with a rating of 600 volts and 100 amps. This breaker protects electrical systems from overloads and short circuits. It features thermal magnetic trip protection that can handle a breaking capacity of fourteen kiloamperes at six hundred volts AC. The HDL36100 includes dual-break rotating contacts that minimize current peaks during faults.

• Offers overload and short circuit protection
• Integrated push-to-trip button
• Compatible with UL, CSA, and IEC standards

Product Highlights

This circuit breaker is suitable for various applications including commercial and industrial settings, providing reliable protection against electrical faults.

Product Information

Standard Information

• Brand: Square D
• MPN: HDL36100

Technical Specifications

• Voltage: 600 VAC
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Frame Type: H-Frame
• Trip Type: Thermal-Magnetic
• Breaking Capacity: 14 kA
• Net Weight: 2.2 kg
• Width: 4.1 inches
• Height: 6.4 inches
• Depth: 3.4 inches
• Country of Origin: Mexico
