Square D HDL36050 Molded Case Circuit Breaker 50 Amp 600 Volt Replacement MPN

Product Description

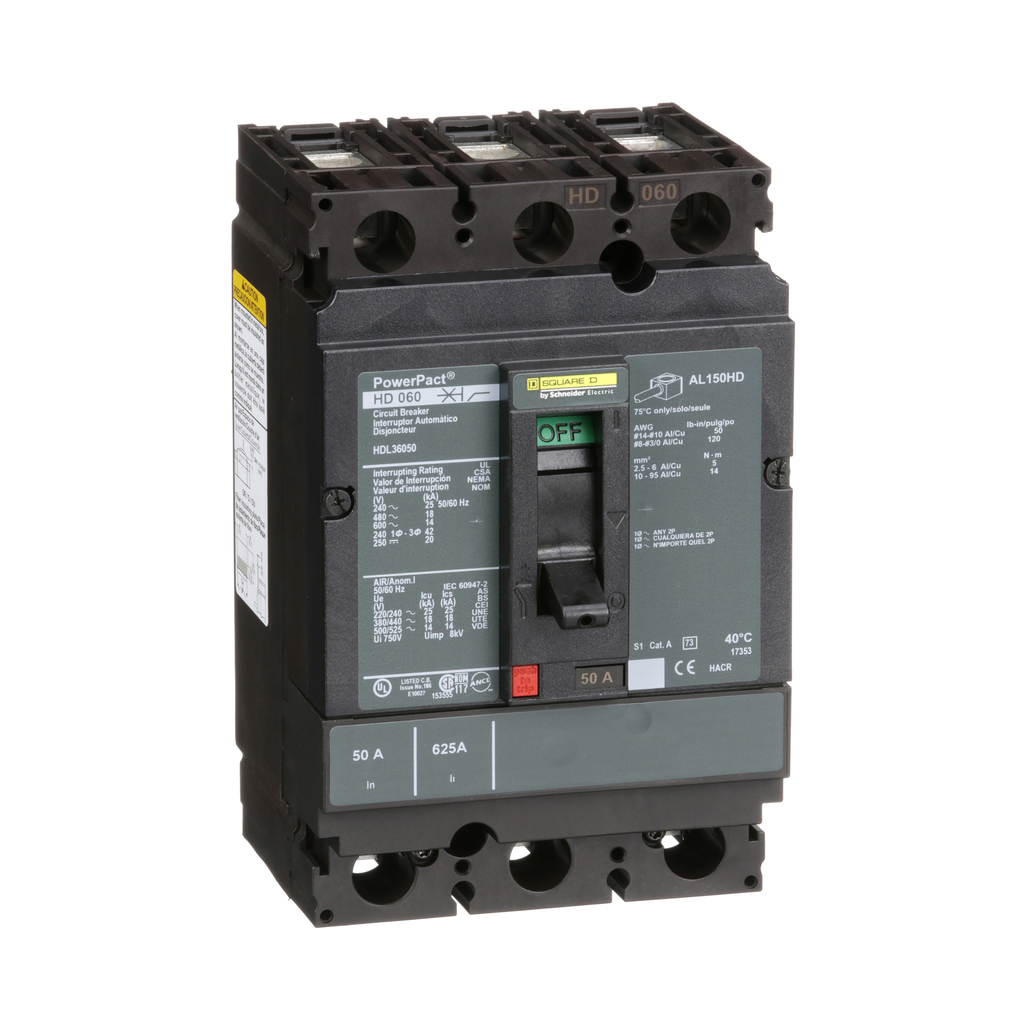

The Square D HDL36050 is a molded case circuit breaker designed for protection in electrical systems. This device provides thermal magnetic protection with a breaking capacity of fourteen kiloamperes at six hundred volts AC. The breaker is equipped with dual-break rotating contacts that help minimize peak currents during fault conditions.

• Continuous current rating of eighty percent
• Integral push-to-trip button for manual circuit operation
• Available in two and three-pole configurations

Product Highlights

This circuit breaker ensures reliable performance and compliance with UL, CSA, NOM, and IEC standards.

Product Information

Standard Information

• Brand: Square D
• Type: Circuit breaker

Technical Specifications

• Model Number: HDL36050
• Voltage: 600 Volt AC
• Amperage: 50 Amp
• Breaking Capacity: 14 kA
• Number of Poles: 3 Pole
• Dimensions: 163 mm (height), 104 mm (width), 86 mm (depth)
• Weight: 2.2 kg
• Trip Type: Thermal-Magnetic
• Mounting Type: Unit Mount with Lugs
• Certifications: UL, CSA, NOM, IEC
• Country of Origin: Mexico
