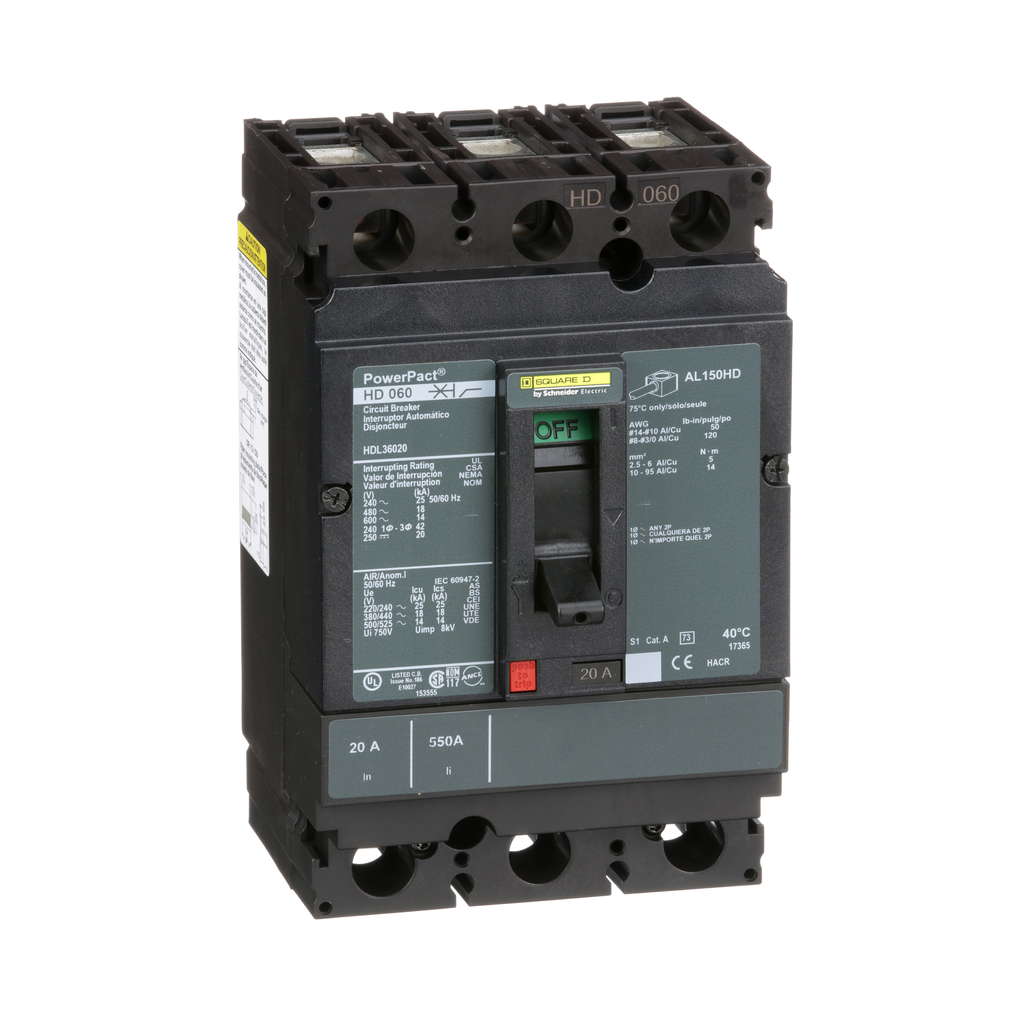

Square D HDL36020 3-Pole 20 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Square D HDL36020 is a thermal magnetic molded case circuit breaker with a breaking capacity of 14kA at 600 volts. This three-pole circuit breaker is engineered to protect electrical systems from overloads and short circuits. The PowerPacT H-Frame design ensures high durability and reliability in a variety of applications.

• Three-pole configuration
• Continuous current rating of twenty amps
• Complies with UL, CSA, and IEC standards

Product Highlights

This circuit breaker is equipped with dual-break rotating contacts that help reduce peak current during faults. It includes a push-to-trip button for manual operation. The breaker features lugs on both the line and load sides for easier installation and connections.

Product Information

Standard Information

• Type: Circuit breaker
• Brand: Square D

Technical Specifications

• Breaking Capacity: 14kA at 600VAC
• Amperage: 20 Amp
• Voltage: 600 Volt
• Number of Poles: 3 Pole
• Weight: 4.15 kg
• Depth: 86 mm
• Width: 104 mm
• Height: 163 mm
