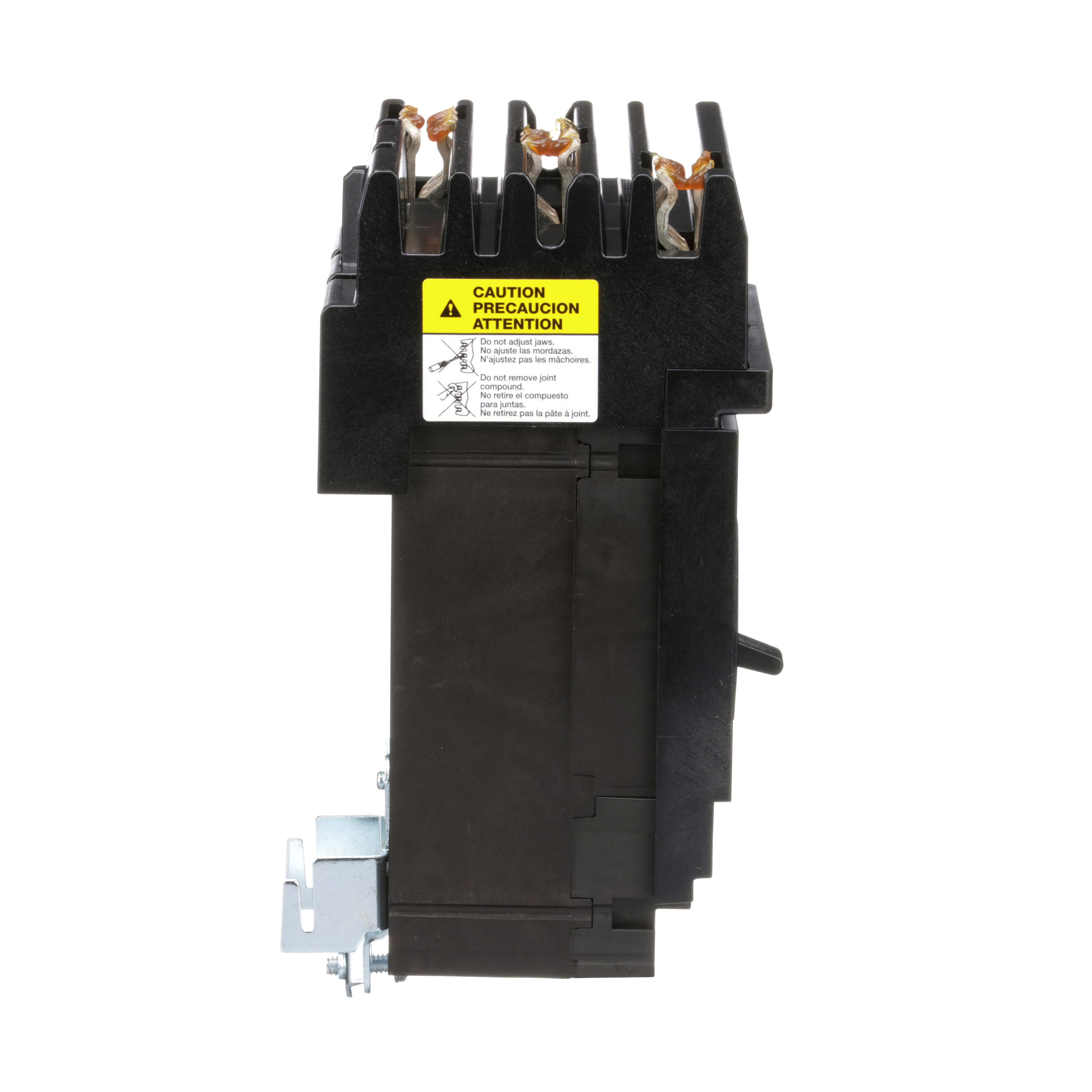

Square D HDA36125 600 Volt 100 Amp Molded Case Circuit Breaker

Product Description

The Square D HDA36125 is a 600 Volt, 100 Amp molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This circuit breaker features thermal magnetic and Micrologic electronic trip protection, ensuring reliable performance. With an interrupting capacity of 14kA at 600VAC, it is ideal for high-performance applications. The breaker includes dual-break rotating contacts that lower peak current during faults, enhancing safety. A push-to-trip button allows for manual tripping of the breaker, adding an extra layer of control.

• Rated for 600VAC and 100 Amps.
• Thermal magnetic trip system for overload and short circuit protection.
• Designed for easy installation in I-Line applications.

Product Highlights

This circuit breaker complies with multiple safety standards including UL and CSA, ensuring high reliability in various applications.

Product Information

Standard Information

• Brand: Square D
• Type: Molded Case Circuit Breaker

Technical Specifications

• Voltage Rating: 600 Volt
• Amperage: 100 Amp
• Interrupting Capacity: 14kA
• Number of Poles: 3 Pole
• Trip Configuration: Thermal Magnetic
• Weight: 6.45 pounds
• Country of Origin: Mexico
• Operating Temperature Range: -13F to 158F
