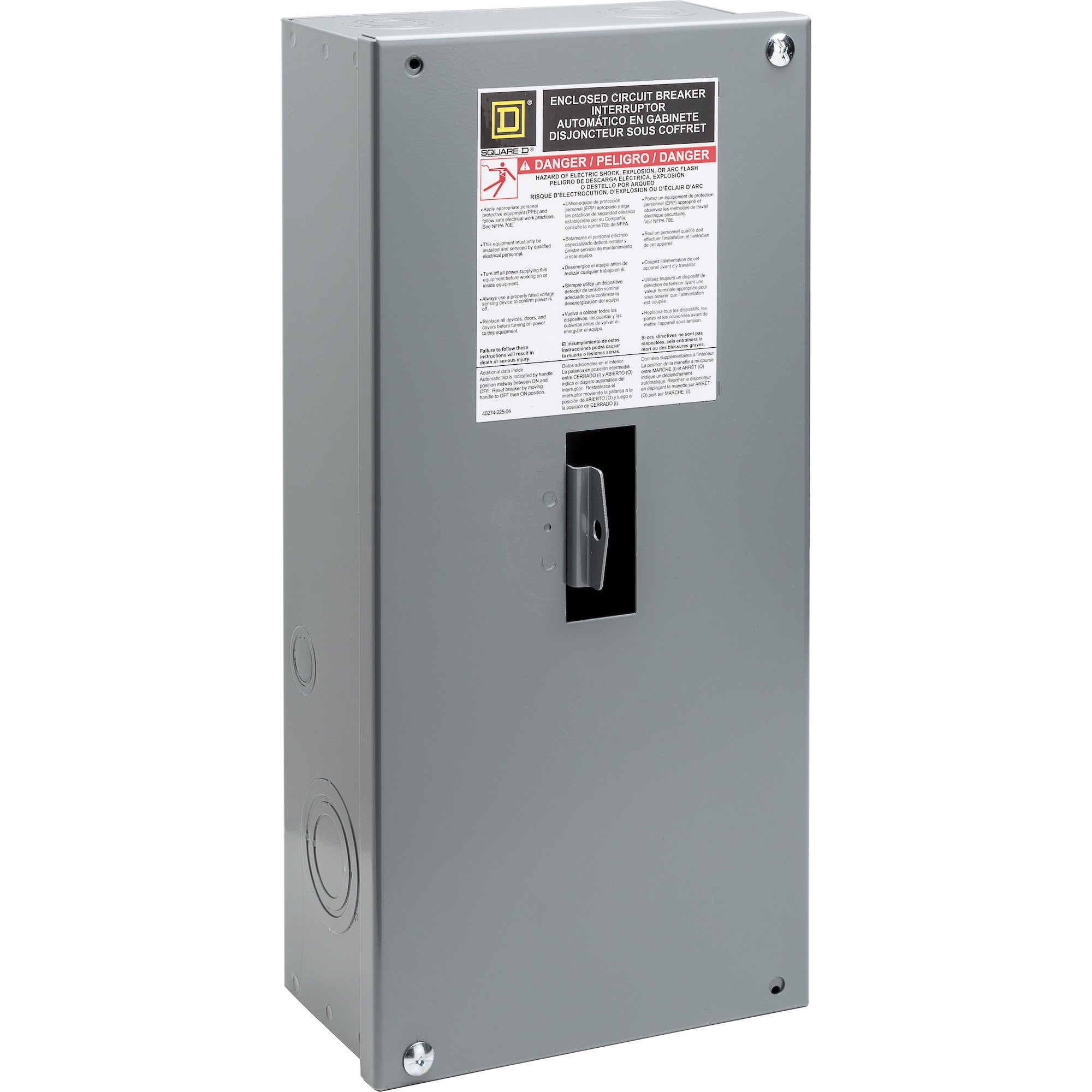

Square D HD100S Circuit Breaker Enclosure Steel Surface Mount

Product Description

The Square D HD100S Circuit Breaker Enclosure offers robust protection for circuit breakers in both industrial and residential settings. Crafted from durable steel, this enclosure ensures reliable performance under harsh conditions. With dimensions of Width: 7.9 inches, Height: 17 inches, and Depth: 4.75 inches, it fits 3-pole circuit breakers rated from 15A to 100A. It's designed for surface mounting and meets strict compliance standards including NEC and OSHA regulations.

• Rated for 240 Vac maximum and 25kAIR at 240VAC short circuit current.
• Compatible with H-frame circuit breakers, excluding those needing communication accessories.
• Features a lockable design compliant with OSHA's lock out/tag out safety procedures.

Product Highlights

This NEMA 1 rated enclosure is designed to prevent physical damage to circuit breakers and allows their operation without needing to remove the cover. It meets UL 50 and NEC 240.30 standards, ensuring optimal safety and reliability.

Product Information

Standard Information

• Mounting Type: Surface
• Material: Steel

Technical Specifications

• Width: 200.7 mm
• Height: 431.8 mm
• Depth: 120.7 mm
• Current Rating: 15-100 A
• Enclosure Type: HDL
• Number of Poles: 3 Pole
• Certifications: CSA, UL
• Country of Origin: Mexico
