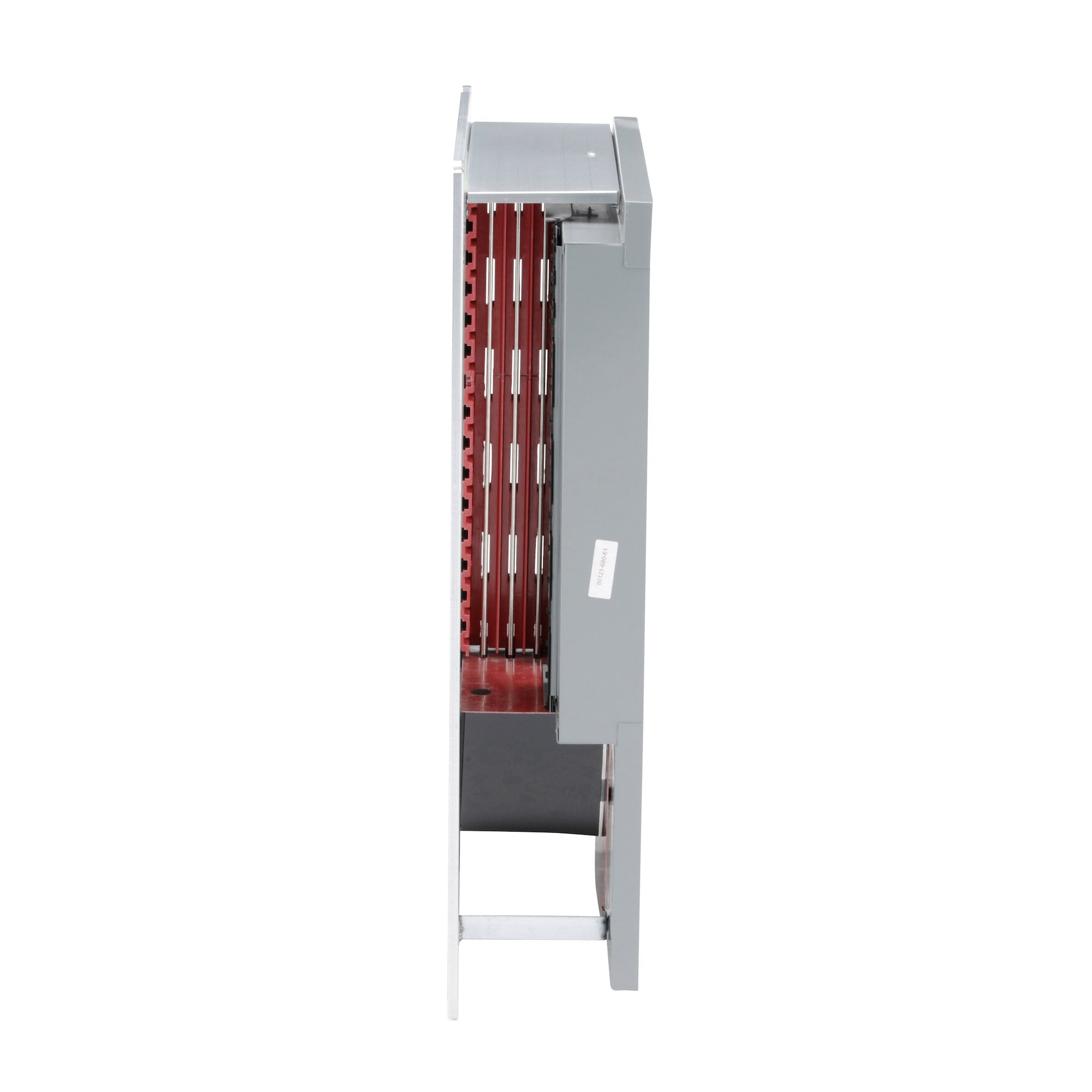

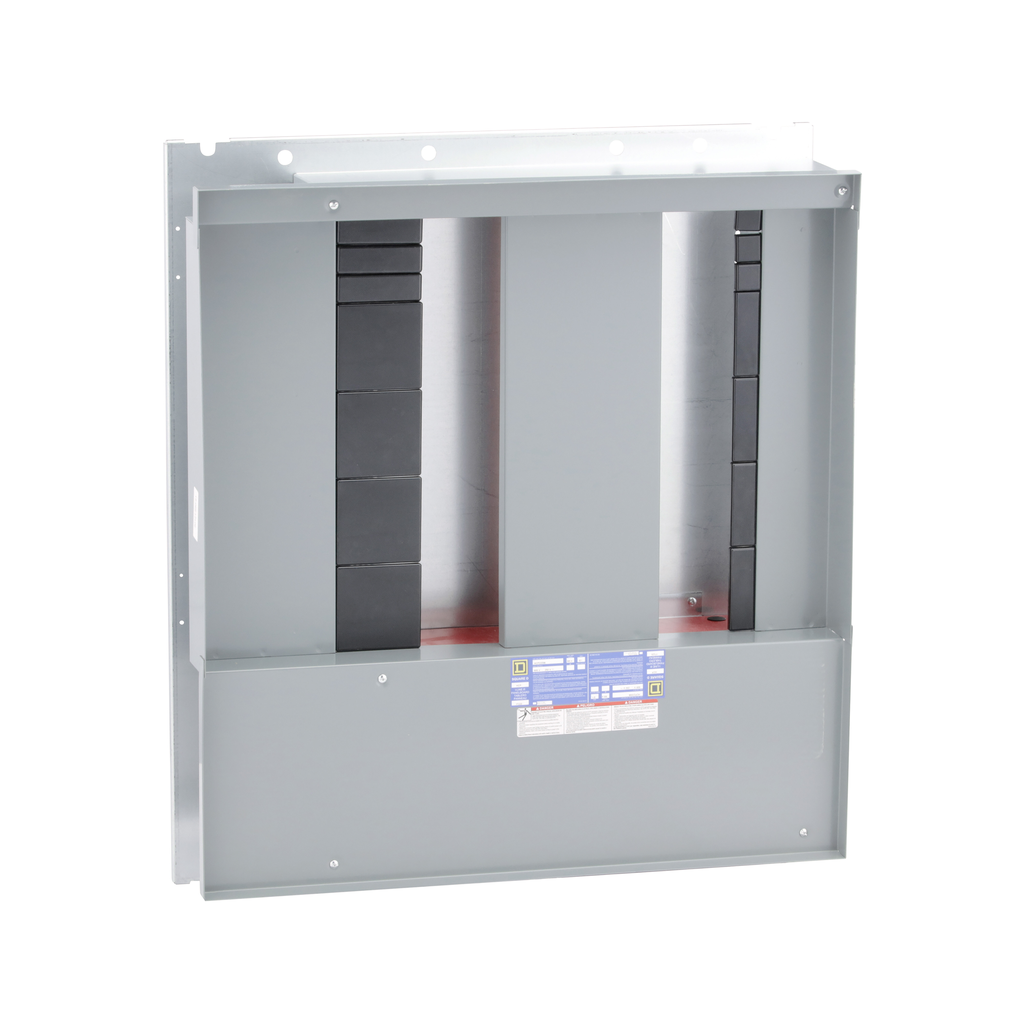

Square D HCP23598 Square D 600 VAC 250 VDC 800 Amp 3-Phase 3-Wire Panelboard Interior

Product Description

Square D HCP23598 is a power distribution panelboard designed for AC or DC systems. This model has a current rating of 800 amps and is suitable for three-phase, three-wire applications. The panelboard interior includes main lugs and measures fifty-nine inches in height and forty-two inches in width. It is UL listed and meets cULus standards, ensuring safety and compliance in electrical installations.

• Rated for 600 VAC and 250 VDC.
• Constructed to meet CSA and UL requirements.
• Dimensions: 59 inches high by 42 inches wide.

Product Highlights

This panelboard is ideal for industrial applications where reliable power distribution is crucial.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HCP23598
• Length: 45 inches
• Width: 34.38 inches
• Height: 39 inches
• Current Rating: 800 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Material: Aluminum
• Warranty: 18 months
