Product Description

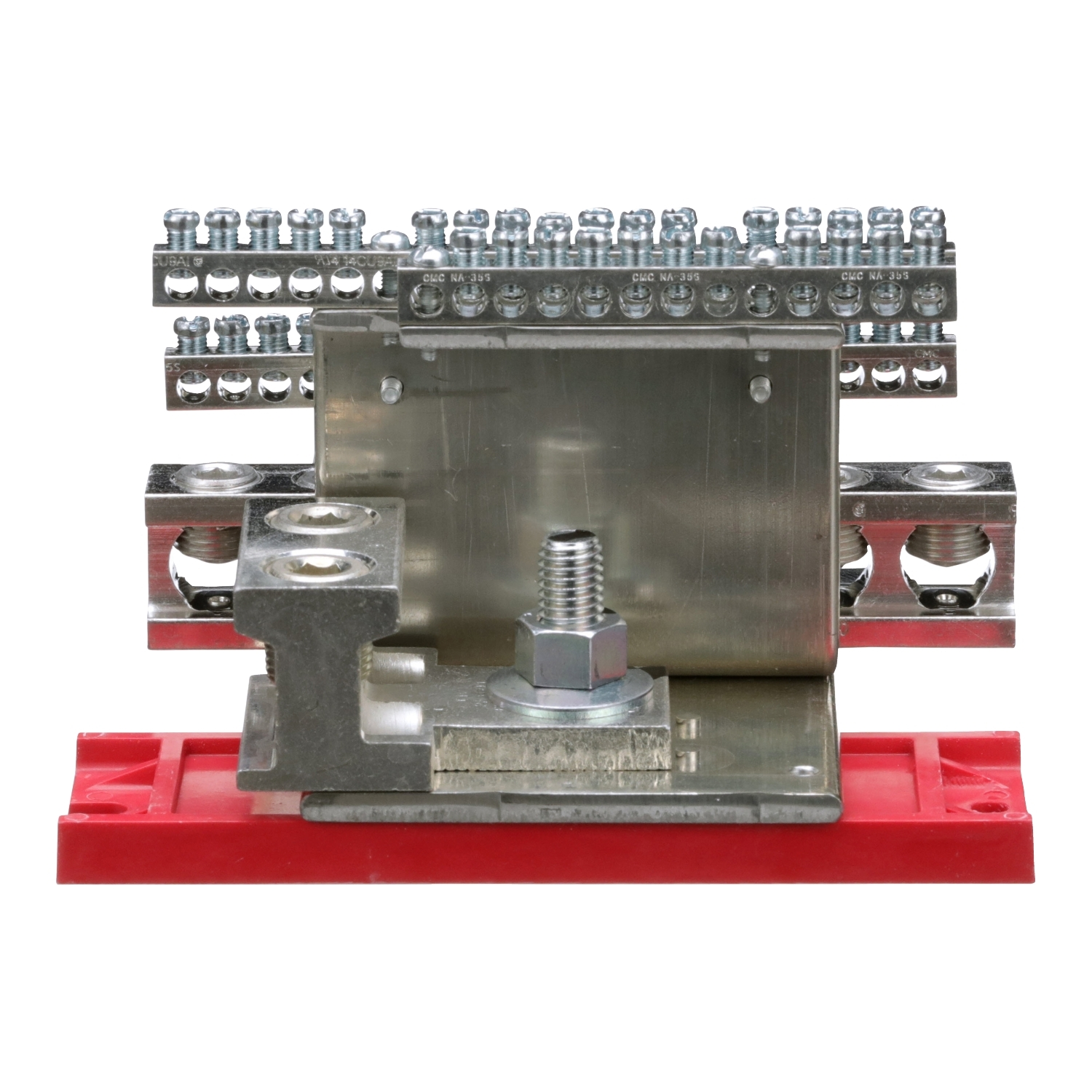

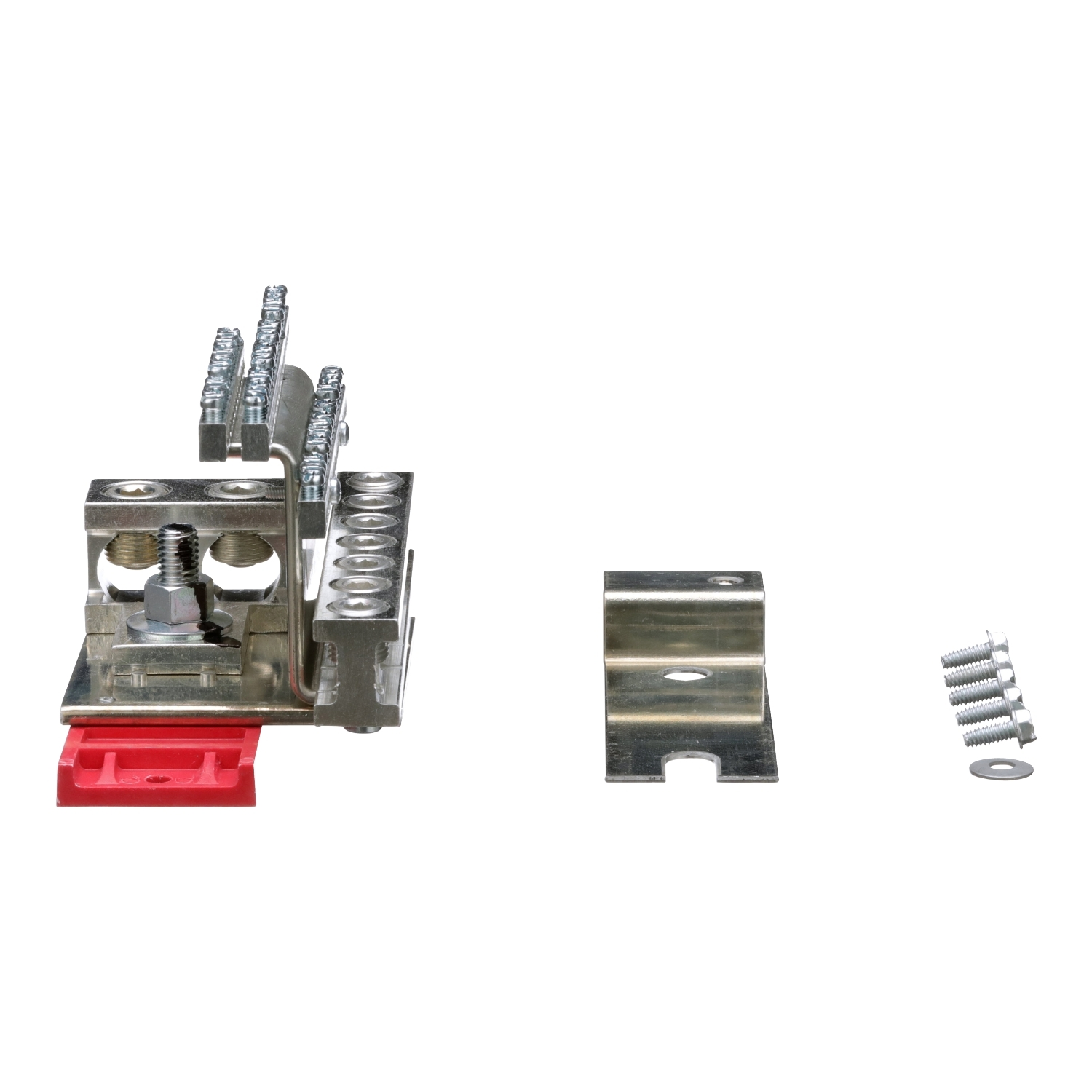

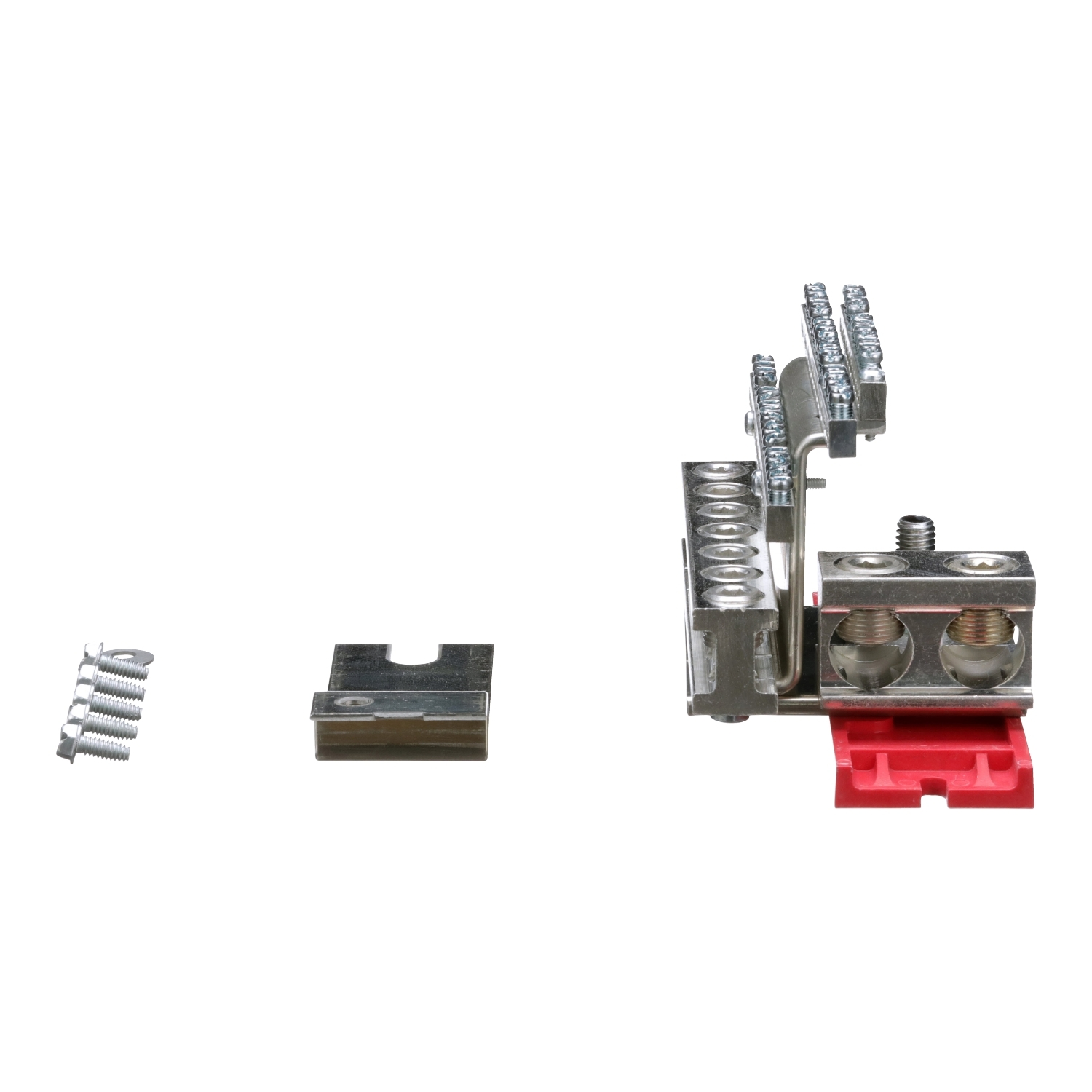

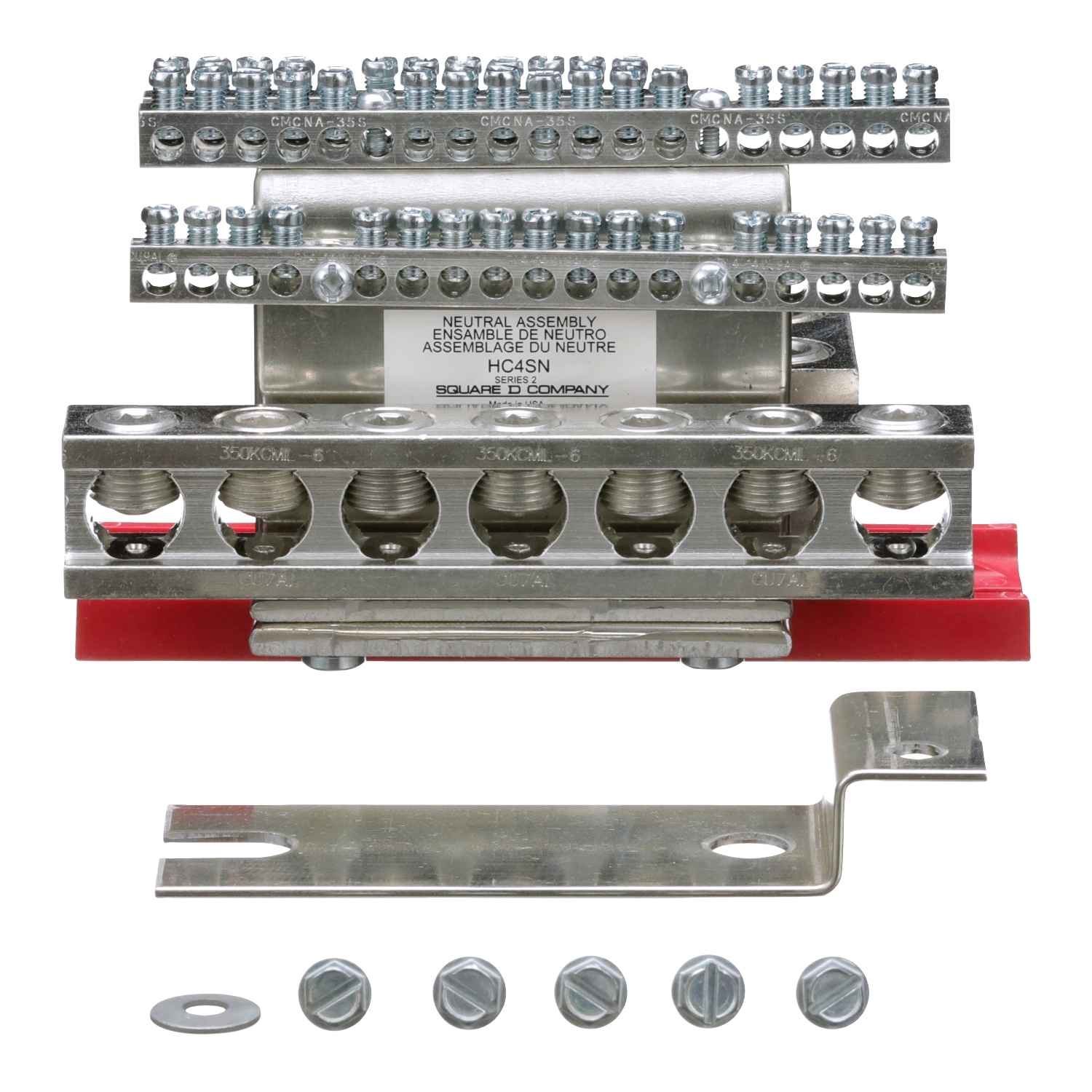

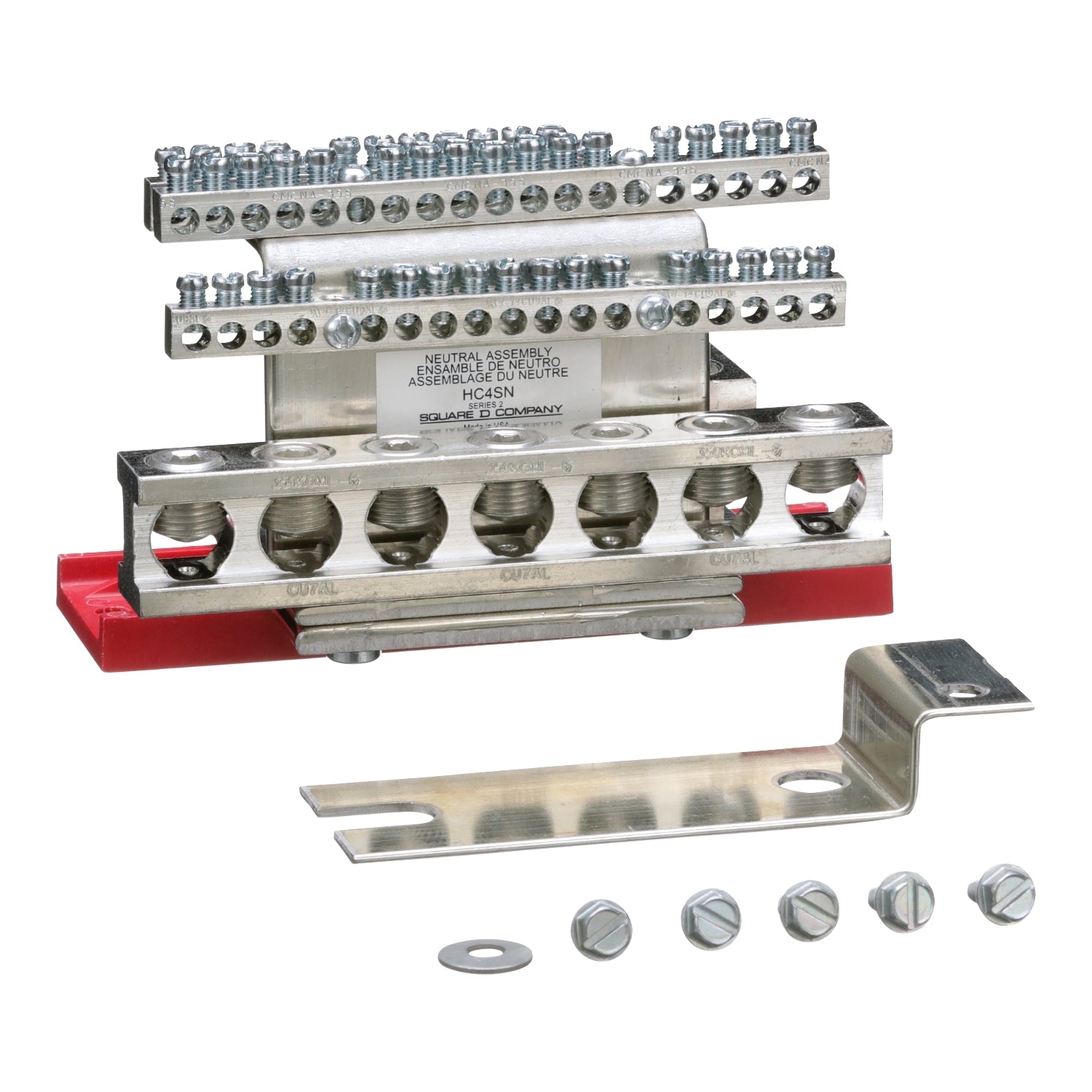

The Square D HC4SN is an electrical accessory for HCN & HCM distribution boards. Designed for AC or DC systems, this I-Line solid neutral assembly is UL & CSA certified. It supports a line rated current of 400A and operates within I-Line panelboards.
- For use on AC or DC systems
- UL & CSA certifications
Product Highlights
Solid neutral assembly for I-Line panelboards, certified for safety and reliability.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: HC4SN
-
Country of Origin: United States
Technical Specifications
-
Type: Electrical accessory;Solid neutral
-
Brand: Square D
-
Voltage: 600 V AC/250 V DC
-
Amperage: 400 A
-
Material: Aluminum
-
Sub Brand: I-LINE
-
Cable Size: SEE TABLE
-
Product UPC: 78590150601
-
12-Digit UPC: 785901506010
-
Applications: I-LINE PANELBOARDS
-
TC Connection: MECHANICAL LUGS
-
CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Country of Origin: USA
-
Line Rated Current: 400 A
-
Operating Temperature: PER UL
-
Catalog Number: HC4SN
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Panelboard Type: Review
-
Used On: I-Line Hcn/Hcm Series Panelboard Interior
-
Lug Range: (2) #4 to 600 KCMIL (Copper/Aluminum)
-
Phase: 3 Phase
-
Frequency: 60 Hz
-
Lug: 4 AWG to 600 kcmil Al/Cu Lug
-
Mounting: Surface Mount
-
Range Of Product: Square D
-
Accessory / Separate Part Category: electrical accessory
-
Product Or Component Type: solid neutral
-
Product Destination: HCN distribution board || HCM distribution board
-
Rohs Exemption Information: Yes
-
Packaging Made With Recycled Cardboard: Yes
-
Environmental Disclosure: ENVPEP1407017EN
-
Packaging Without Single Use Plastic: No
-
China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
-
Circularity Profile: N/A
-
Take-Back: No
-
Pvc Free: Yes
-
Eu Rohs Directive: Compliant with Exemptions
-
Item: Panelboard Solid Neutral
-
Features: Mercury Free
-
Application: HCN distribution board || HCM distribution board
-
Product Type: Panelboard Solid Neutral
-
Accessory Type: Panelboard Solid Neutral
-
Country of Origin (subject to change): United States
