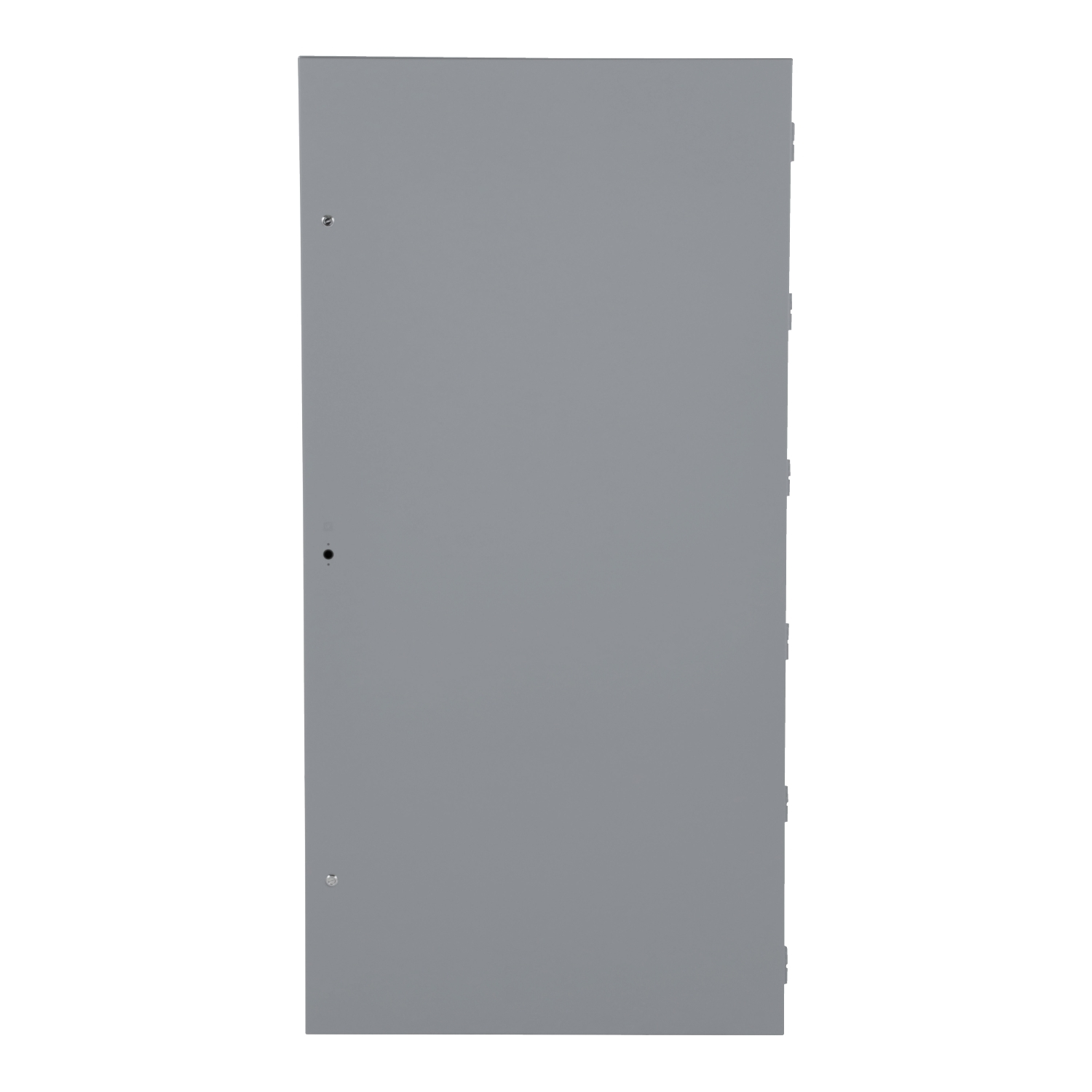

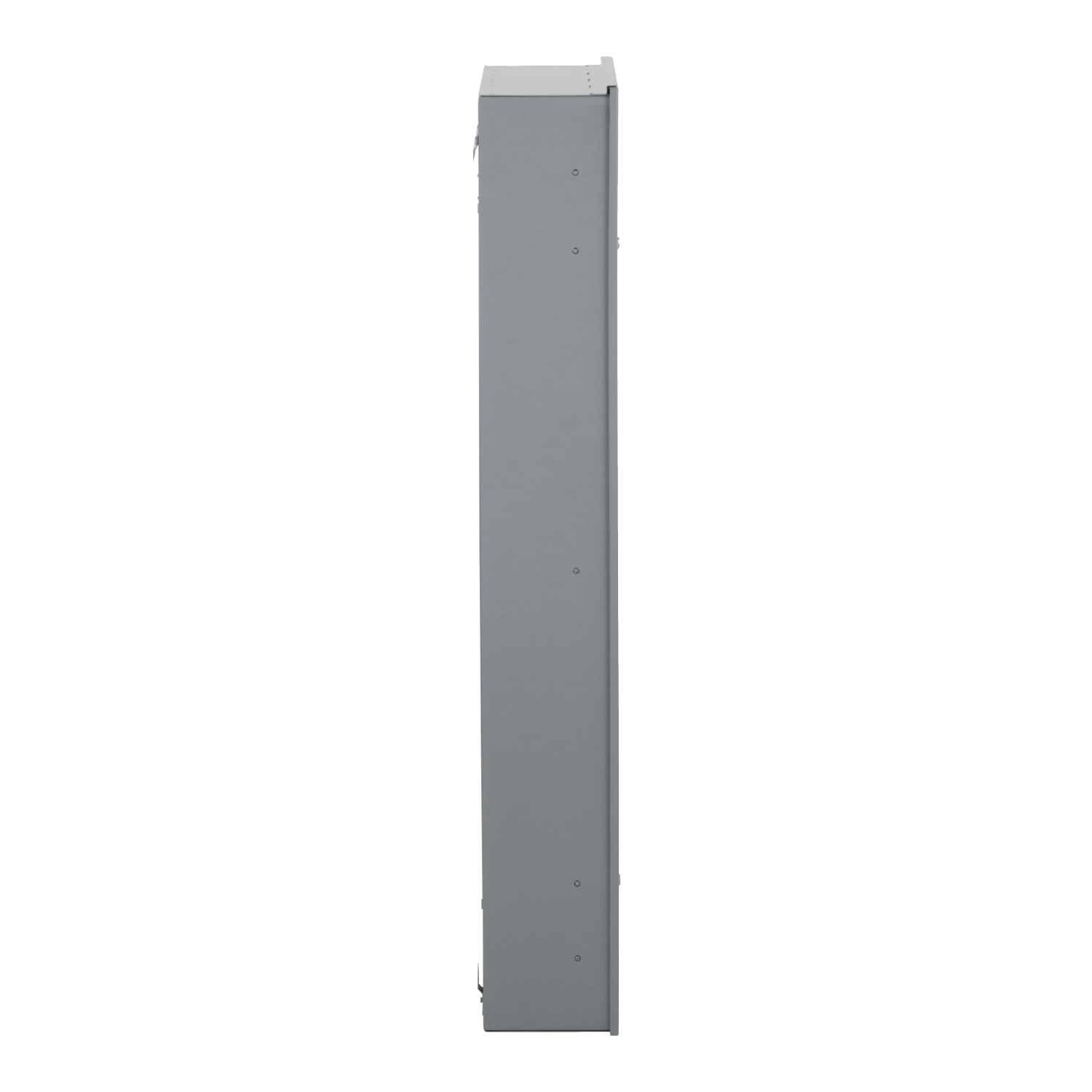

Square D HC4286WP panelboard enclosure 42 x 86 inch

Product Description

The Square D HC4286WP panelboard enclosure is designed for use on AC or DC systems. These I-Line circuit breaker power distribution panelboards are cULus Listed and Underwriters Laboratories (UL) Listed under File E33139. It is suitable for panelboard applications.

• Enclosure is NEMA 3R/12 rated
• Panelboards are for use on AC or DC systems
• Listed under File E33139

Product Highlights

The Square D HC4286WP panelboard enclosure is ideal for power distribution in various applications. It is UL listed and suitable for both AC and DC systems.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HC4286WP
• Country of Origin: United States

Technical Specifications

• Type: PANELBOARD ENCLOSURE
• Brand: Square D
• Depth: 12.95 Inch
• Width: 1067 mm
• Height: 86 Inch
• Amperage: 1200 Amp
• Material: PAINTED
• Standard: CSA,UL
• Enclosure: NEMA 3R/5/12
• Sub Brand: I-LINE
• Applications: PANELBOARD ENCLOSURE
• Country of Origin: USA
• Line Rated Current: 1200 A
• Operating Temperature: PER UL
• Panelboard Type: Panelboard Box
• Interior Type: 1200 Ampere HCP Series Main Lug Interior, 800 Ampere HCP Series Main Circuit Breaker Interior
• Enclosure Nominal Height: 2184 mm
• Enclosure Nominal Depth: 241 mm
• Enclosure Nominal Width: 1067 mm
• Nema Degree Of Protection: NEMA 3R/12
• Finish: Painted
• Mounting Type: Surface
• NEMA Rating: NEMA 3R/5/12
• Length: 86 in
• Device Application: panelboard
• Device Short Name: HCP
• Range Of Product: I-Line
