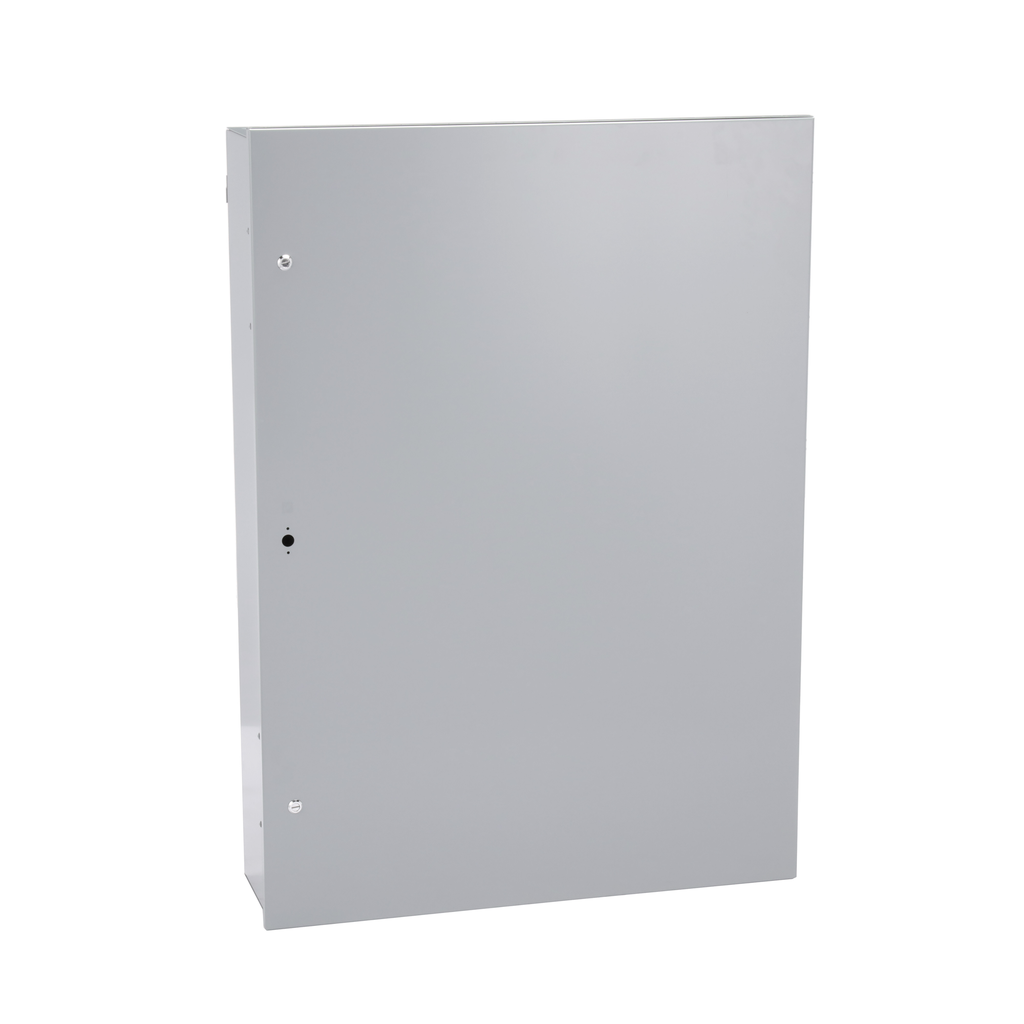

Square D HC4259WP Panelboard Enclosure 1200A (42 x 12.95 x 59 Inch)

Product Description

Square D brand HC4259WP enclosure is a panelboard designed for use in AC or DC systems. This product meets both UL and CSA standards and is labeled cULus. It is suitable for service entrance applications and comes in a NEMA 3R/12 rated protection.

• Compatible with I-Line circuit breakers available from 400A to 1200A.
• Dimensions are fifty-nine inches in height, forty-two inches in width, and twelve point nine five inches in depth.
• Enclosure constructed from painted material for durability.

Product Highlights

This enclosure features the capacity to house circuit breakers of up to 1200A, making it suitable for larger installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HC4259WP
• Current Ratings: 400A, 800A, 1200A
• Height: 59 inches
• Width: 42 inches
• Depth: 12.95 inches
• Weight: 259.99 lb
• Enclosure Type: NEMA 3R/12
• Warranty: 18 months
