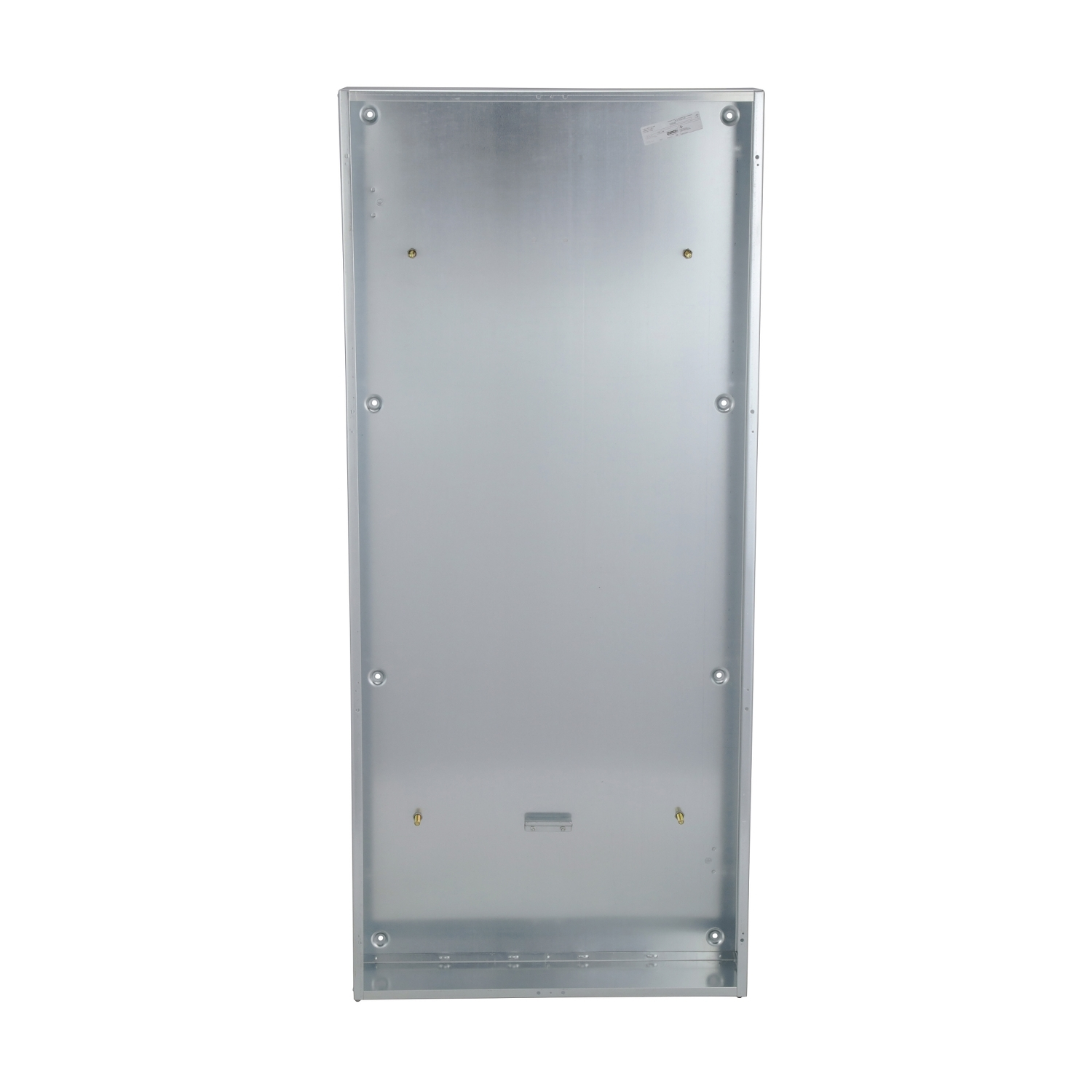

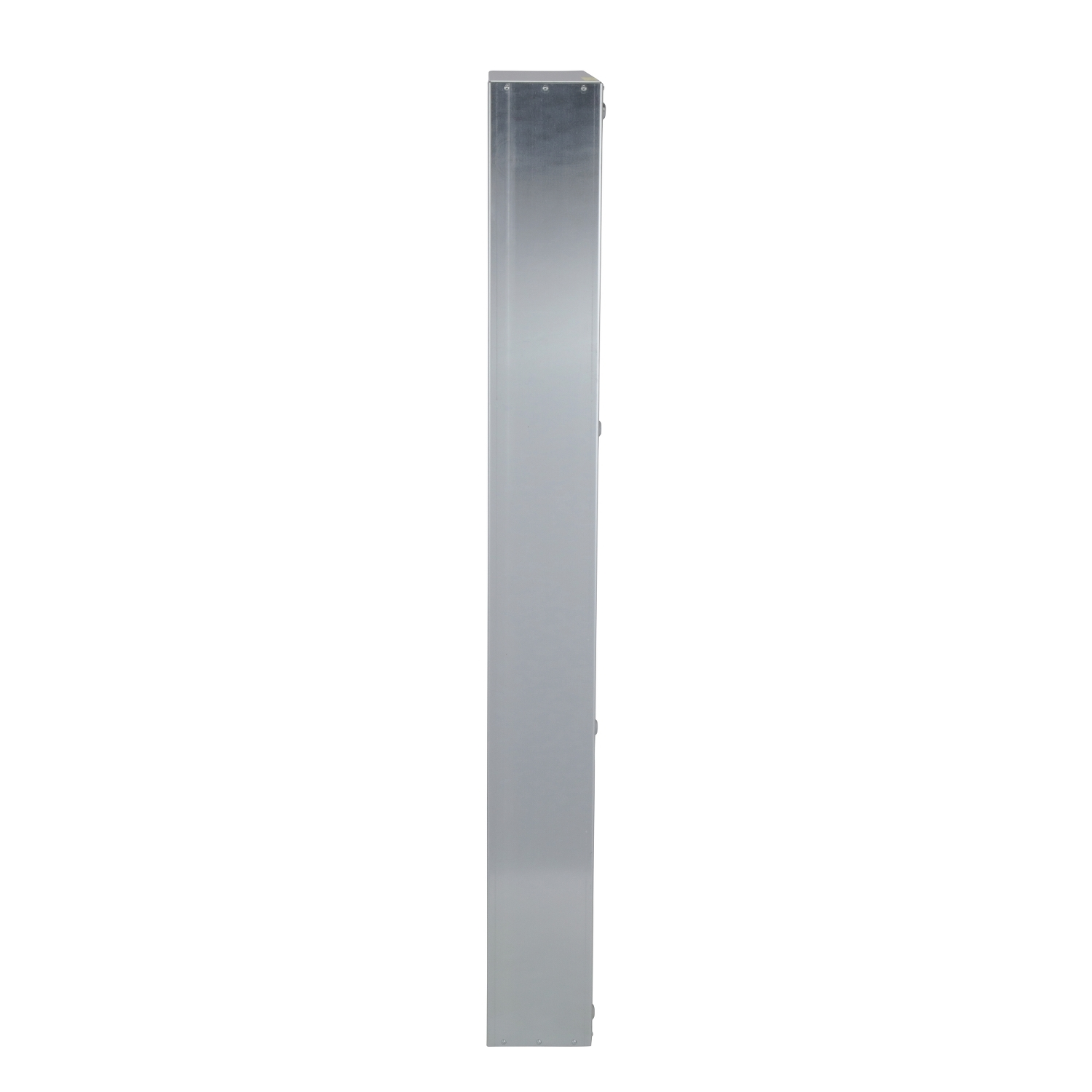

Square D HC3273DB9 32 x 9.5 x 73 Inch NEMA 1 Panelboard Box

Product Description

The Square D HC3273DB9 is an I-Line circuit breaker power distribution panelboard enclosure suitable for AC or DC systems. This panelboard enclosure complies with UL, CSA, NFPA, NEMA & W-P standards and has a NEMA 1 degree of protection. It has a rated current of 600-800A and dimensions of 1854 mm (H) x 813 mm (W) x 241 mm (D).

• Suitable for use on AC or DC systems
• Complies with UL, CSA, NFPA, NEMA & W-P standards
• Rated current of 600-800A

Product Highlights

The Square D HC3273DB9 panelboard enclosure provides reliable power distribution and circuit breaker protection in a variety of applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HC3273DB9
• Country of Origin: USA

Technical Specifications

• Catalog Number: HC3273DB9
• Type: PANELBOARD ENCLOSURE
• Brand: Square D
• Depth: 9.5 Inch
• Width: 32 Inch
• Height: 73 Inch
• Amperage: 600 Amp
• Material: GALVANIZED
• Standard: CSA,UL
• Enclosure: NEMA 1
• Sub Brand: I-LINE
• Applications: PANELBOARD COMPONENT
• Country of Origin: USA
• Line Rated Current: 600 A
• Operating Temperature: PER UL
• Panelboard Type: Panelboard Box
• UPC: 785901557548
• GTIN: 00785901557548
• Interior Type: 800 Ampere HCM Series Main Circuit Breaker Interior
• Enclosure Type: NEMA 1
• Series: HCM
• Mounting Type: Wall
• Finish: Galvanized
• NEMA Rating: NEMA 1
• Rohs Exemption Information: Yes
• Packaging Made With Recycled Cardboard: Yes
• Environmental Disclosure: ENVPEP1407017EN
• Packaging Without Single Use Plastic: No
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: N/A
• Take-Back: No
• Pvc Free: Yes
• Eu Rohs Directive: Compliant with Exemptions
